LF150B (2021)
BOTTOM COWLING 2

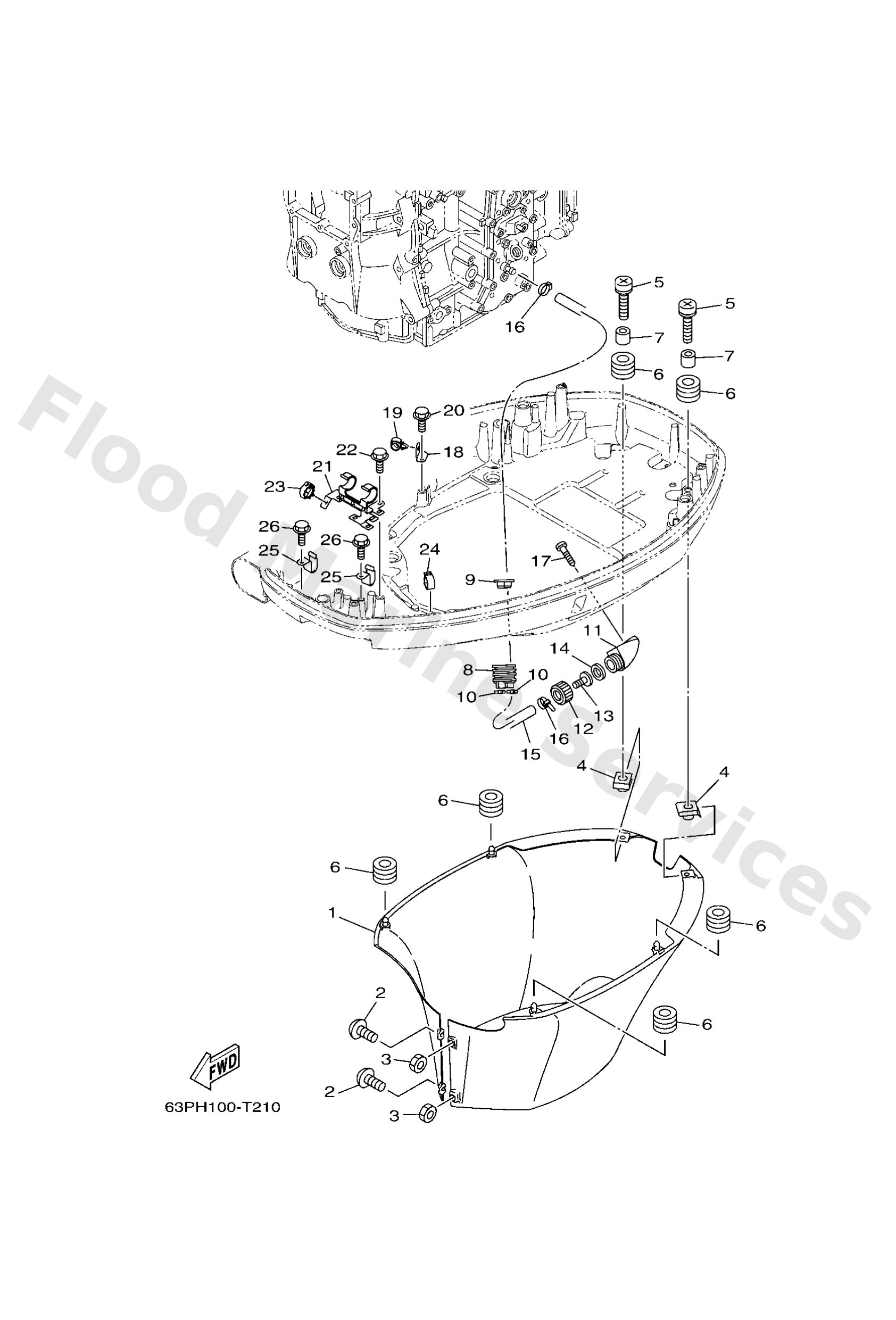

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6DA42741118D
Apron
Loading…
↗
2
9015906M28
Screw, with washer
Loading…
↗
3
9538006600
Nut(661)
Loading…
↗
4
90183061A8
Nut, spring
Loading…
↗
5
9015906053
Screw, with washer
Loading…
↗
6
9048013M24
Grommet (6e9)
Loading…
↗
7
9038706M43
Coller (6e9)
Loading…
↗
8
6H14272622
Grommet
Loading…
↗
9
6BG4238400
Seal, cap
Loading…
↗
10
9046511M10
Clamp
Loading…
↗
11
6AW1257200
Adapter
Loading…
↗
12
6R31258100
Joint, hose 1
Loading…
↗
13
6R31258200
Joint, hose 2
Loading…
↗
14
6R31258300
Gasket, hose joint
Loading…
↗
15
63P4254110
Pipe 1
Loading…
↗
17
9778060520
Screw, tapping(6k8)
Loading…
↗
18
63P4275600
Stay, clamp
Loading…
↗
19
9046413249
Clamp
Loading…
↗
20
9010906316
Bolt
Loading…
↗
21
63P8366G00
Bracket 3
Loading…
↗
23
9046418246
Clamp(4tr)
Loading…
↗
24
9046418004
Clamp
Loading…
↗
25
9046212013
Clamp
Loading…
↗
