LF150CB (2023)
BOTTOM COWLING 2

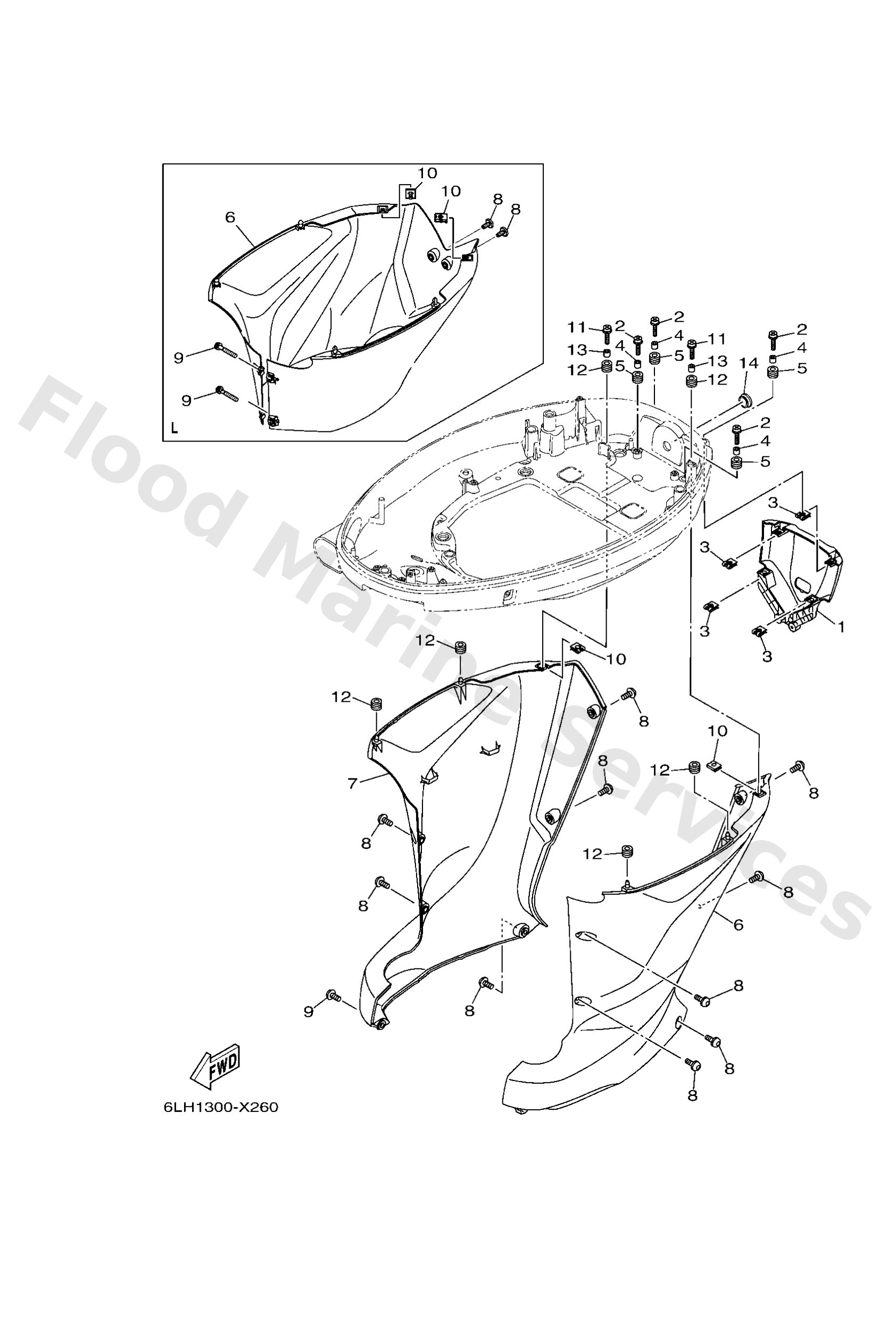

Diagram: BOTTOM COWLING 2
Parts List
Reference
Description
Price
1
6LH42723008D
Cover, bottom
Loading…
↗
2
9015906053
Screw, with washer
Loading…
↗
3
90183061A8
Nut, spring
Loading…
↗
4
9038706M43
Coller (6e9)
Loading…
↗
5
9048013M24
Grommet (6e9)
Loading…
↗
6
6LH42740008D
X(25.2")
Apron complete 1
Loading…
↗
6
6LH42740108D
L(20.3")
Apron complete 1
Loading…
↗
7
6LH42770008D
X(25.2")
Apron complete 2
Loading…
↗
8
9011106144
X(25.2")
Bolt,hex. socket button
Loading…
↗
9
9015906M28
L(20.3")
Screw, with washer
Loading…
↗
9
9011106142
X(25.2")
Bolt,hex. socket button
Loading…
↗
14
6764272600
Grommet 3
Loading…
↗
