Yamaha Outboard Parts - BOTTOM COWLING 2 - XF425NSB2 (2020) | Flood Marine

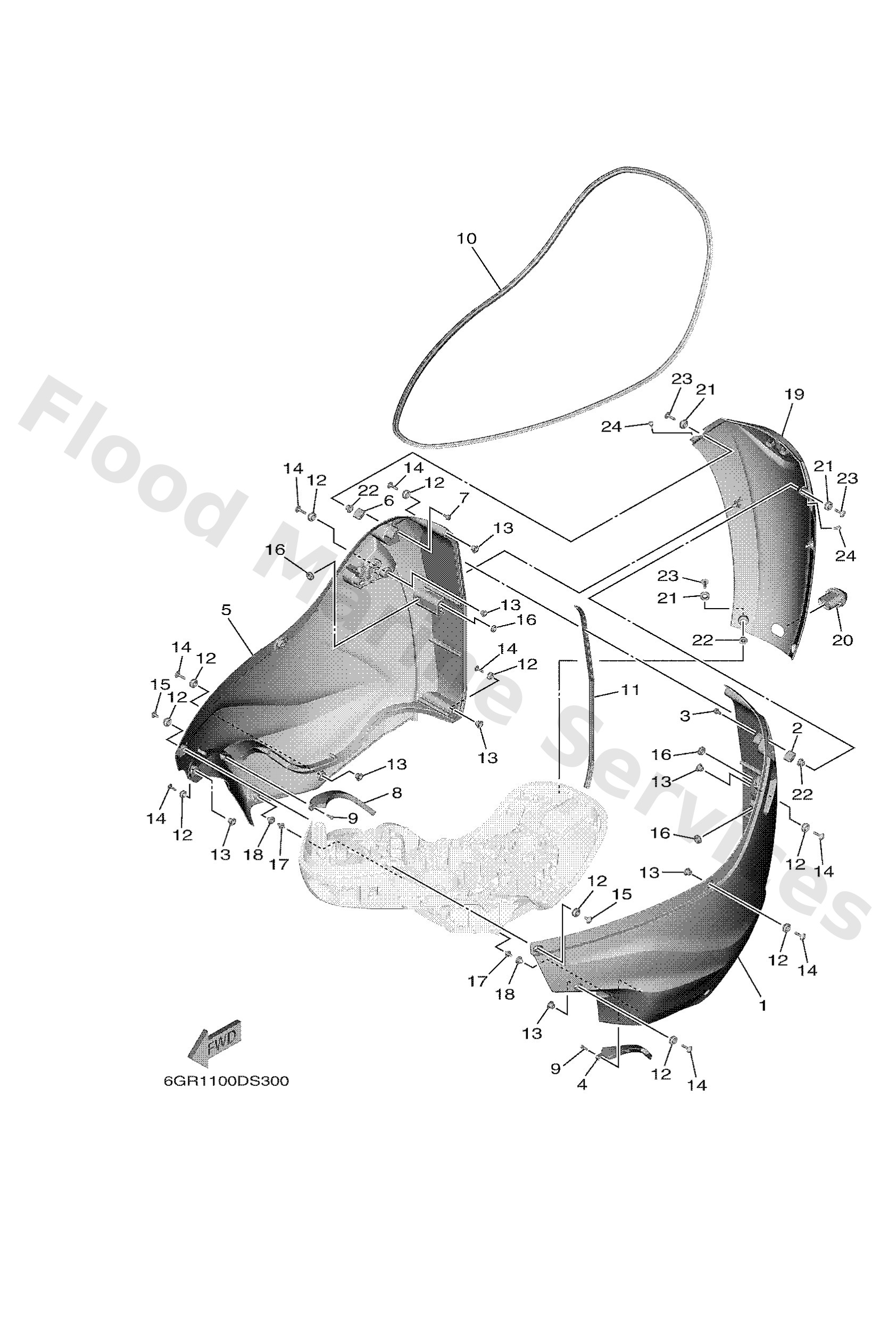

Diagram: BOTTOM COWLING 2

Diagram

Parts List

Reference
Description
Price


1
6GR4271200CE WHITE
Cowling, bottom 2
Loading…

↗
1
6GR4271200
Cowling, Bottom 2
Loading…

↗
1
6GR42712008D GRAY
Cowling, bottom 2
Loading…

↗
2
6GR4274400
Stay
Loading…

↗
3
95D9506012
Bolt, flange deep recess
Loading…

↗
4
6GR4262200
Side, mole cowling 1
Loading…

↗
5
6GR4271300
Cowling, Bottom 3
Loading…

↗
5
6GR4271300CE WHITE
Cowling, bottom 3
Loading…

↗
5
6GR42713008D GRAY
Cowling, bottom 3
Loading…

↗
8
6GR4262300
Side, mole cowling 2
Loading…

↗
9
9016705017
Screw, tapping
Loading…

↗
10
6GR4261500
Seal
Loading…

↗
11
6GR4276900
Seal, rubber
Loading…

↗
12
9048016015
Grommet
Loading…

↗
13
6GR4275800
Collar
Loading…

↗
14
9011106175
Bolt,hex. socket button
Loading…

↗
15
9011106176
Bolt,hex. socket button
Loading…

↗
16
9048013034
Grommet
Loading…

↗
17
69J4277410
Stay, apron 1
Loading…

↗
18
6GR4276800
Damper
Loading…

↗
19
6GR42625008D GRAY
Panel, rear
Loading…

↗
19
6GR4262500CE WHITE
Panel, rear
Loading…

↗
19
6GR4262500
Panel, Rear
Loading…

↗
20
6GR4274800
Grommet
Loading…

↗
24
9033807012
Plug
Loading…

↗
