F200D (2025)
BOTTOM COWLING 3

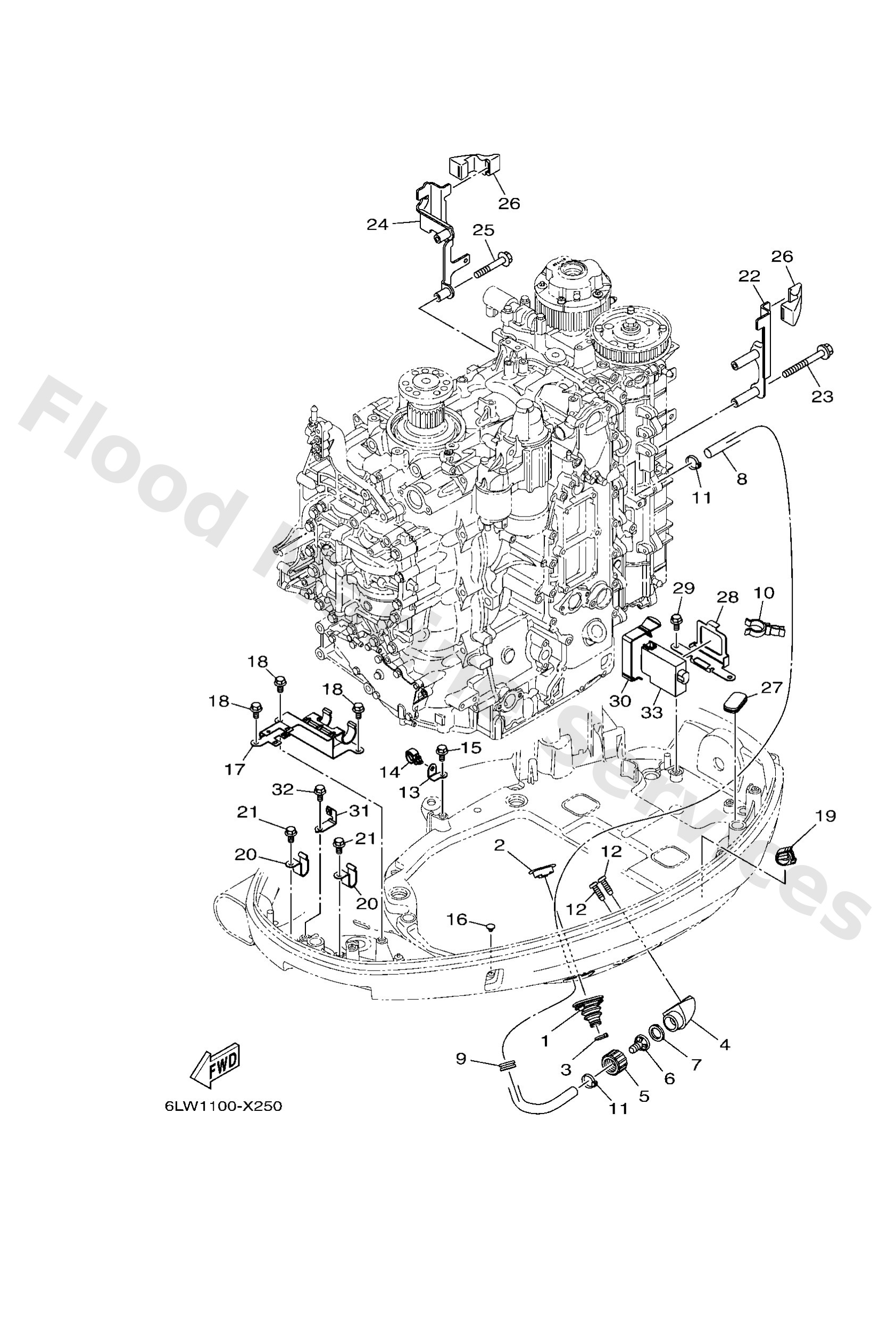

Diagram: BOTTOM COWLING 3
Parts List
Reference
Description
Price
1
6BG4272401
Grommet
Loading…
↗
2
6BG4238400
Seal, cap
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
6AW1257200
Adapter
Loading…
↗
5
6R31258100
Joint, hose 1
Loading…
↗
6
6AW1258200
Joint, hose 2
Loading…
↗
7
6R31258300
Gasket, hose joint
Loading…
↗
8
6LH4254100
Pipe 1
Loading…
↗
9
9048019031
Grommet(75v)
Loading…
↗
10
9046421256
Clamp
Loading…
↗
12
9778060520
Screw, tapping(6k8)
Loading…
↗
13
6BG4274300
Bracket
Loading…
↗
14
9046413249
Clamp
Loading…
↗
15
95D9506012
Bolt, flange deep recess
Loading…
↗
16
9026907003
Rivet
Loading…
↗
17
6LW8366G00
Bracket 3
Loading…
↗
19
9046418004
Clamp
Loading…
↗
20
9046212013
Clamp
Loading…
↗
22
6DA1199800
Bracket 1
Loading…
↗
23
95D9506065
Bolt, flange deep recess
Loading…
↗
24
6DA1199900
Bracket 2
Loading…
↗
25
95D9506040
Bolt, flange deep recess
Loading…
↗
26
6CB4266202
Damper
Loading…
↗
27
6H44272601
Grommet
Loading…
↗
28
6LW4276600
Bracket 2
Loading…
↗
30
6GR8213101
Band, battery
Loading…
↗
31
63P8366P01
Bracket 4
Loading…
↗
33
6LW8533500
Adapter, Interface
Loading…
↗
