F225NCB2 (2022)
BOTTOM COWLING 3

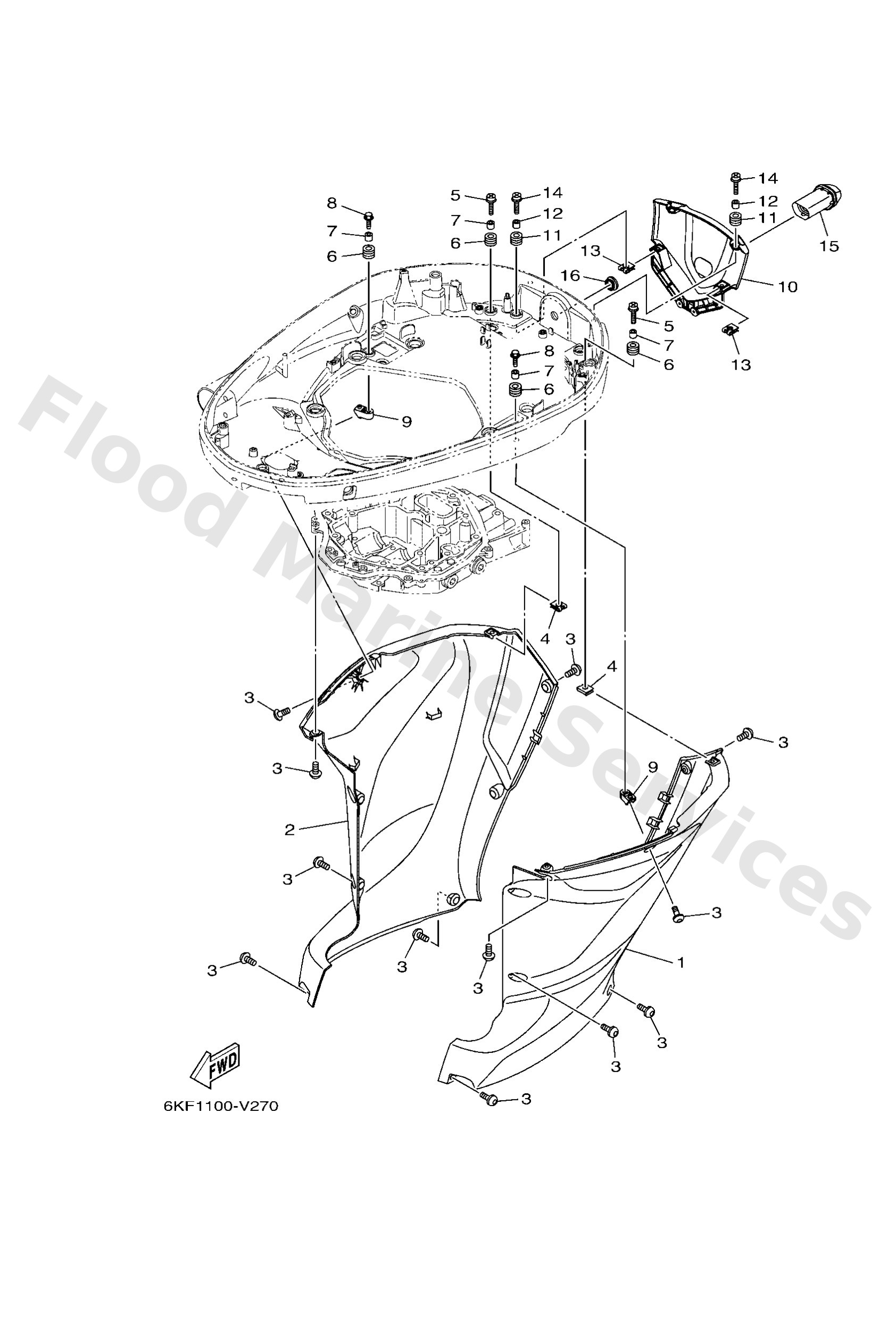

Diagram: BOTTOM COWLING 3
Parts List
Reference
Description
Price
1
6KF4274000CE
WHITE
Apron complete 1
Loading…
↗
1
6KF42740008D
GRAY
Apron complete 1
Loading…
↗
2
6KF42770008D
GRAY
Apron complete 2
Loading…
↗
2
6KF4277000CE
WHITE
Apron complete 2
Loading…
↗
3
9011106144
Bolt,hex. socket button
Loading…
↗
4
90183061A8
Nut, spring
Loading…
↗
5
9015906053
Screw, with washer
Loading…
↗
6
9048013M24
Grommet (6e9)
Loading…
↗
7
9038706M43
Coller (6e9)
Loading…
↗
8
9010906M80
Bolt
Loading…
↗
9
6CE42774A0
Stay, apron 1
Loading…
↗
10
6KA42723008D
GRAY
Cover, bottom
Loading…
↗
10
6KA4272300CE
WHITE
Cover, bottom
Loading…
↗
15
6KA4276900
Seal, rubber
Loading…
↗
16
6764272600
Grommet 3
Loading…
↗
