F300BET (2012)
BOTTOM COWLING 3

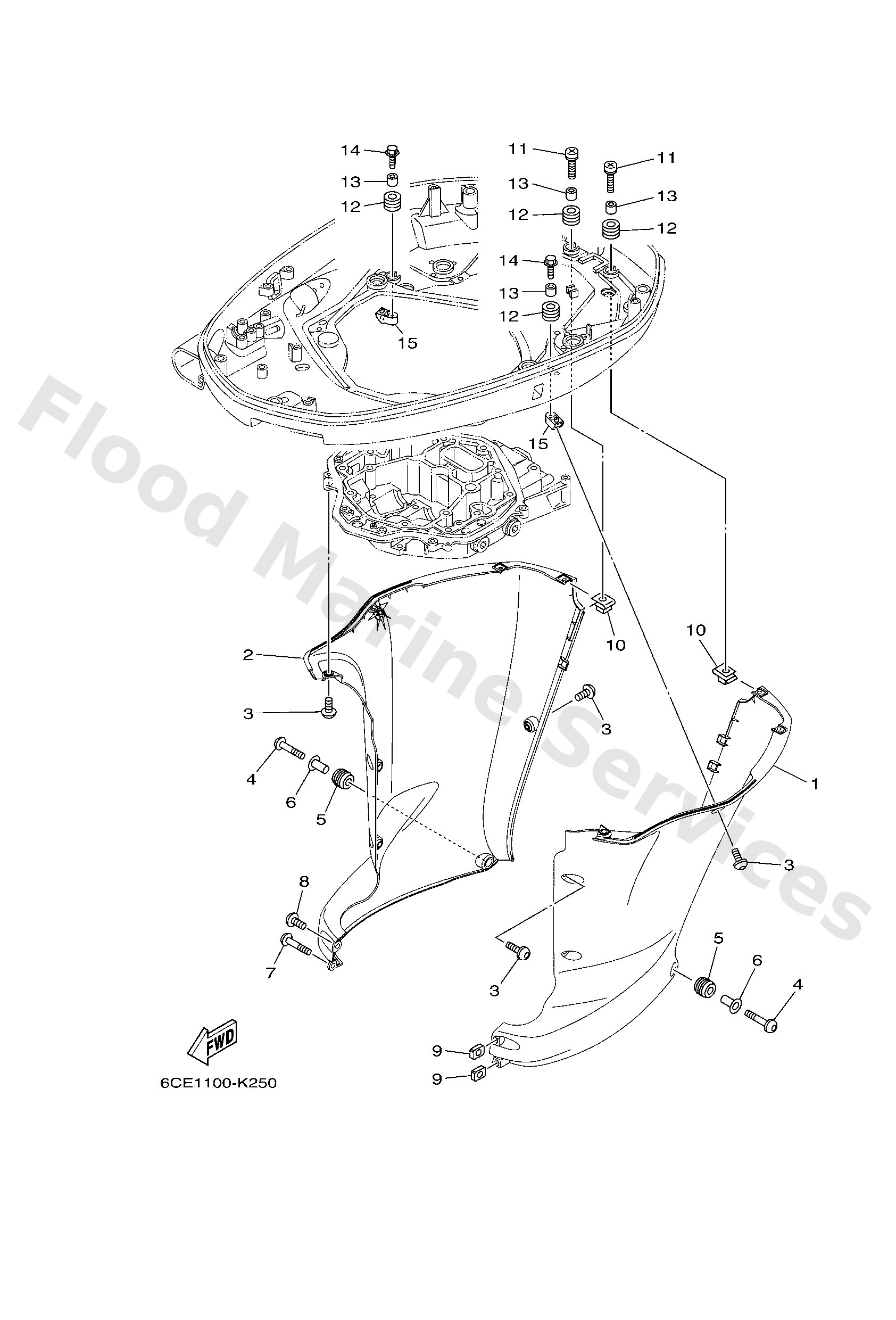

Diagram: BOTTOM COWLING 3
Parts List
Reference
Description
Price
1
6CE42741008D
Go to P/N ) PE0-OM-110043
-
Loading…
↗
2
6CE42771008D
Go to P/N ) PE0-OM-110043
-
Loading…
↗
3
9011106111
Bolt,hex. socket button
Loading…
↗
4
9011106113
Bolt,hex. socket button
Loading…
↗
5
9048016009
Grommet
Loading…
↗
6
9038707028
Collar
Loading…
↗
9
9017306001
Nut, square
Loading…
↗
10
90183061A6
Nut, spring
Loading…
↗
11
9015906053
Screw, with washer
Loading…
↗
12
9048013M24
Grommet (6e9)
Loading…
↗
13
9038706M43
Coller (6e9)
Loading…
↗
14
9010906M80
Bolt
Loading…
↗
15
6CE4277400
Stay, apron 1
Loading…
↗
