Yamaha Outboard Parts - BOTTOM COWLING 3 - F300NSB (2025) | Flood Marine
New Search
Parts
New Outboards
Home
F300NSB (2025)
BOTTOM COWLING 3

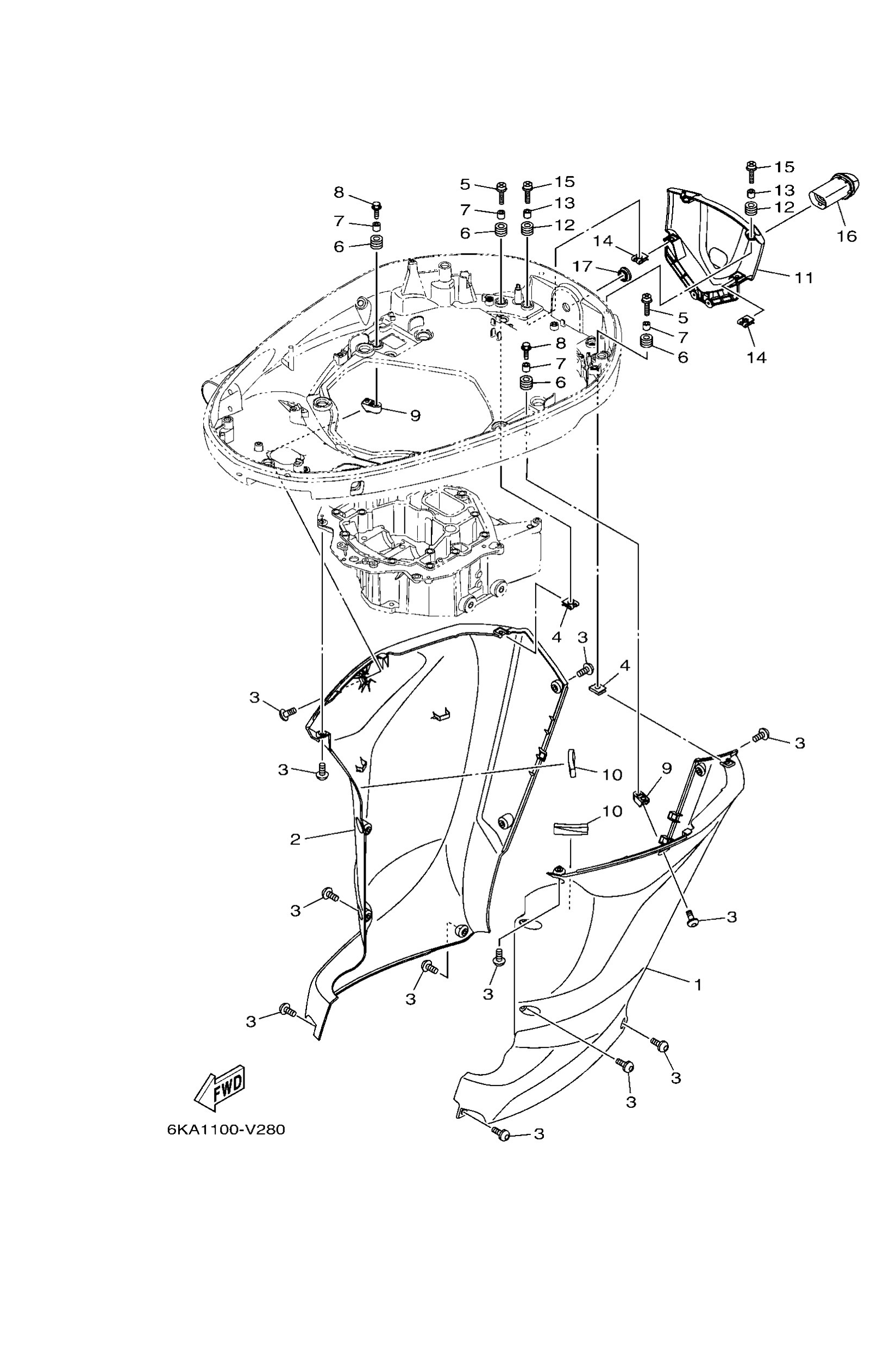

Diagram: BOTTOM COWLING 3
Parts List
Reference
Description
Price
1
6KA4274000CE
UR WHITE
Apron complete 1
Loading…
↗
1
6KA42740008D
UR GRAY
Apron complete 1
Loading…
↗
2
6KA42770008D
UR GRAY
Apron complete 2
Loading…
↗
2
6KA4277000CE
UR WHITE
Apron complete 2
Loading…
↗
3
9011106144
Bolt,hex. socket button
Loading…
↗
4
90183061A8
Nut, spring
Loading…
↗
5
9015906053
Screw, with washer
Loading…
↗
6
9048013M24
Grommet (6e9)
Loading…
↗
7
9038706M43
Coller (6e9)
Loading…
↗
8
9010906M80
Bolt
Loading…
↗
9
6CE42774A0
Stay, apron 1
Loading…
↗
10
5GJ2171700
Damper
Loading…
↗
11
6KA42723008D
UR GRAY
Cover, bottom
Loading…
↗
11
6KA4272300CE
UR WHITE
Cover, bottom
Loading…
↗
16
6KA4276900
Seal, rubber
Loading…
↗
17
6764272600
Grommet 3
Loading…
↗
