Yamaha Outboard Parts - BOTTOM COWLING 3 - FL250DET (2012) | Flood Marine

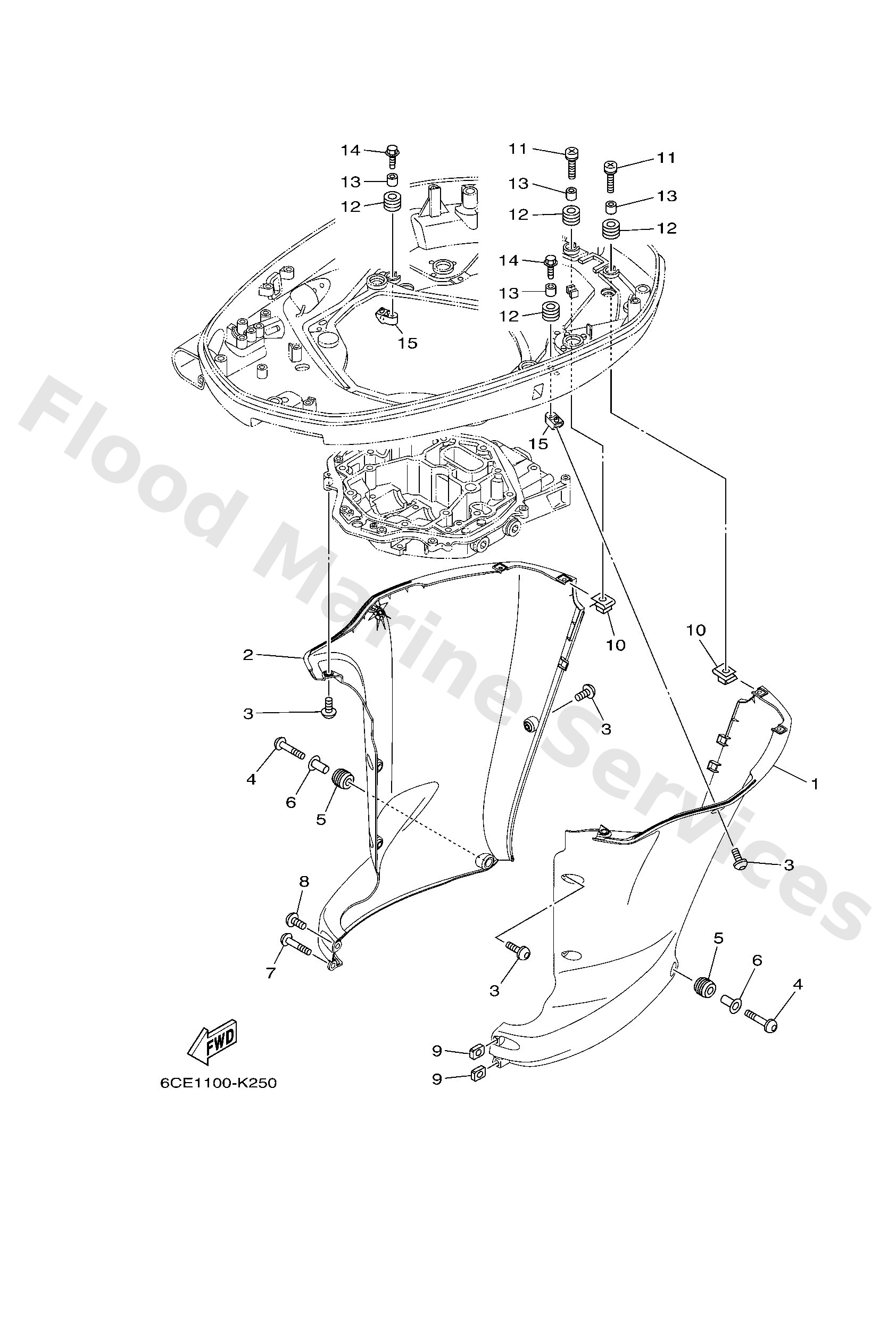

Diagram: BOTTOM COWLING 3

Diagram

Parts List

Reference
Description
Price


1
6CE42741008D Go to P/N ) PE0-OM-110043
-
Loading…

↗
2
6CE42771008D Go to P/N ) PE0-OM-110043
-
Loading…

↗
3
9011106111
Bolt,hex. socket button
Loading…

↗
4
9011106113
Bolt,hex. socket button
Loading…

↗
5
9048016009
Grommet
Loading…

↗
6
9038707028
Collar
Loading…

↗
9
9017306001
Nut, square
Loading…

↗
10
90183061A6
Nut, spring
Loading…

↗
11
9015906053
Screw, with washer
Loading…

↗
12
9048013M24
Grommet (6e9)
Loading…

↗
13
9038706M43
Coller (6e9)
Loading…

↗
14
9010906M80
Bolt
Loading…

↗
15
6CE4277400
Stay, apron 1
Loading…

↗
