FL350AET (2009)
BOTTOM COWLING 3

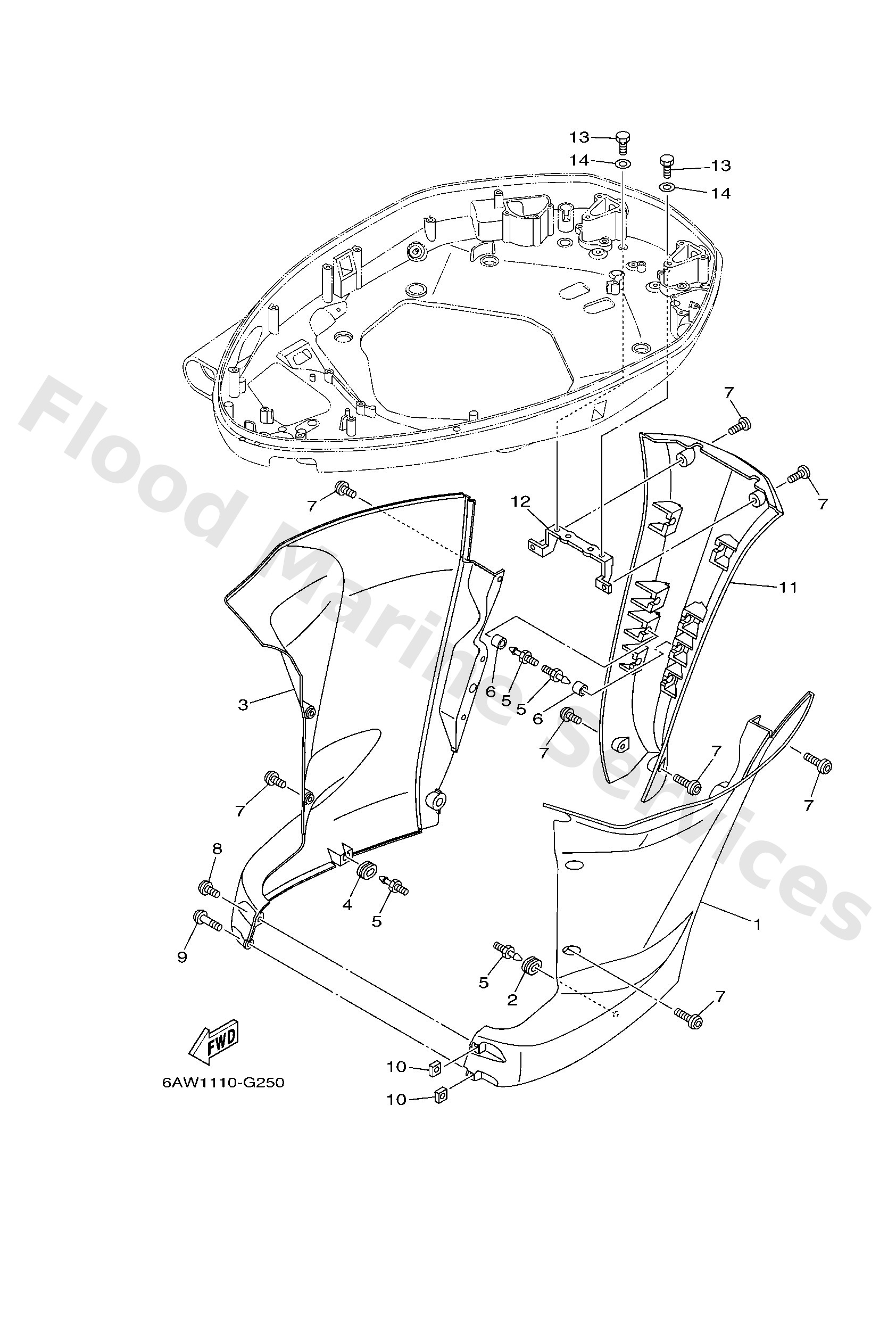

Diagram: BOTTOM COWLING 3
Parts List
Reference
Description
Price
1
6AW42741008D
Apron
Loading…
↗
2
9048014M17
Grommet(6j8)
Loading…
↗
3
6AW42771008D
Apron
Loading…
↗
5
69J4277410
Stay, apron 1
Loading…
↗
6
9038607001
Bush
Loading…
↗
7
9011106111
Bolt,hex. socket button
Loading…
↗
9
9011106113
Bolt,hex. socket button
Loading…
↗
10
9017306001
Nut, square
Loading…
↗
11
6AW45151008D
Cover, upper casing
Loading…
↗
12
6AW4277500
Stay, apron 2
Loading…
↗
13
9709506014
Bolt(gj3)
Loading…
↗
14
9299506600
Washer, plain (646)
Loading…
↗
