VF150XA (2024)
BOTTOM COWLING 3

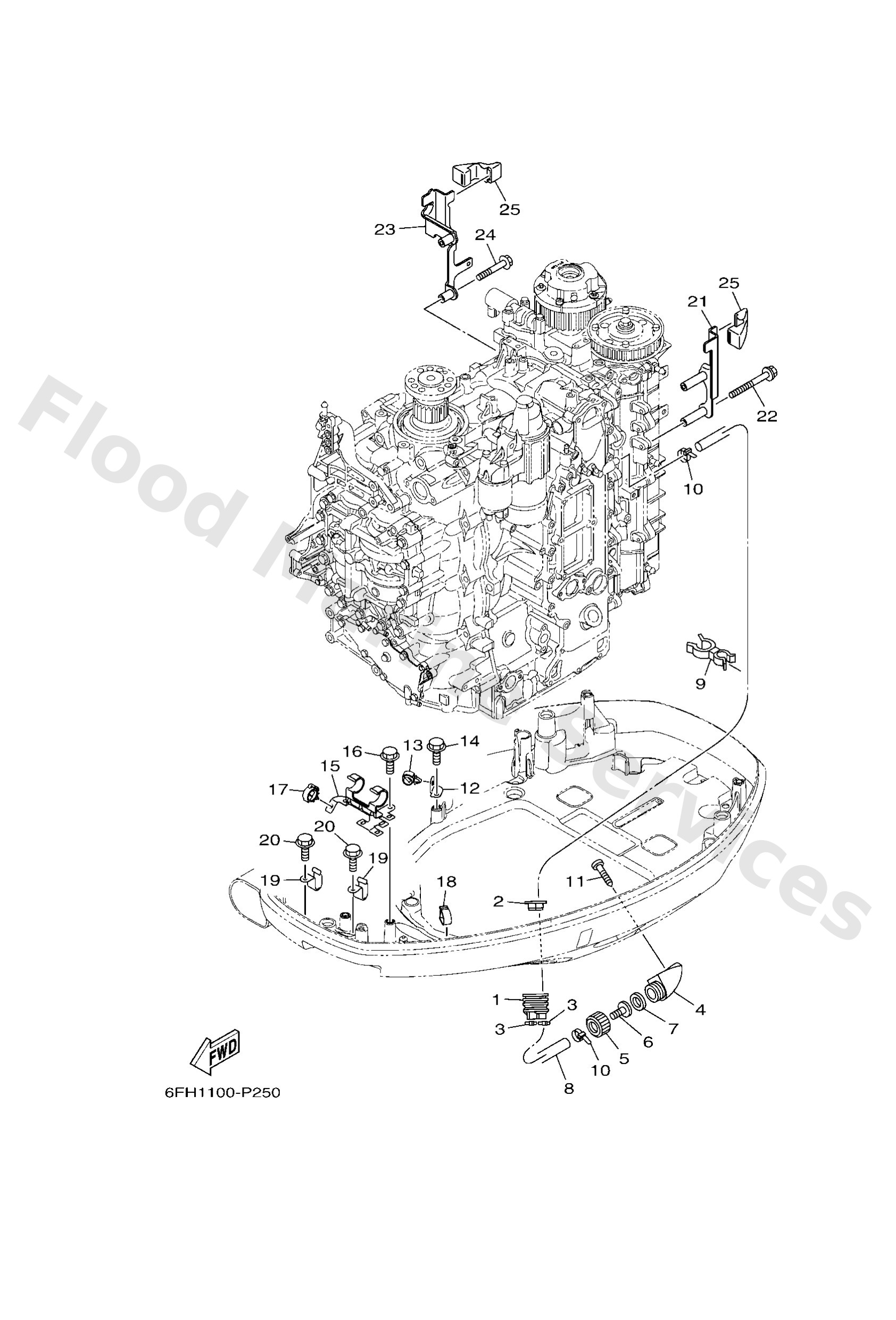

Diagram: BOTTOM COWLING 3
Parts List
Reference
Description
Price
1
6H14272622
Grommet
Loading…
↗
2
6BG4238400
Seal, cap
Loading…
↗
3
9046511M10
Clamp
Loading…
↗
4
6AW1257200
Adapter
Loading…
↗
5
6R31258100
Joint, hose 1
Loading…
↗
6
6AW1258200
Joint, hose 2
Loading…
↗
7
6R31258300
Gasket, hose joint
Loading…
↗
8
6DA4254100
Pipe 1
Loading…
↗
9
9046421256
Clamp
Loading…
↗
11
9778060520
Screw, tapping(6k8)
Loading…
↗
12
63P4275600
Stay, clamp
Loading…
↗
13
9046413249
Clamp
Loading…
↗
14
95D9506012
Bolt, flange deep recess
Loading…
↗
15
6DA8366G00
Bracket 3
Loading…
↗
17
9046418246
Clamp(4tr)
Loading…
↗
18
9046418004
Clamp
Loading…
↗
19
9046212013
Clamp
Loading…
↗
21
6DA1199800
Bracket 1
Loading…
↗
22
95D9506065
Bolt, flange deep recess
Loading…
↗
23
6DA1199900
Bracket 2
Loading…
↗
24
95D9506040
Bolt, flange deep recess
Loading…
↗
25
6CB4266202
Damper
Loading…
↗
