25VMH (2000)
BRACKET

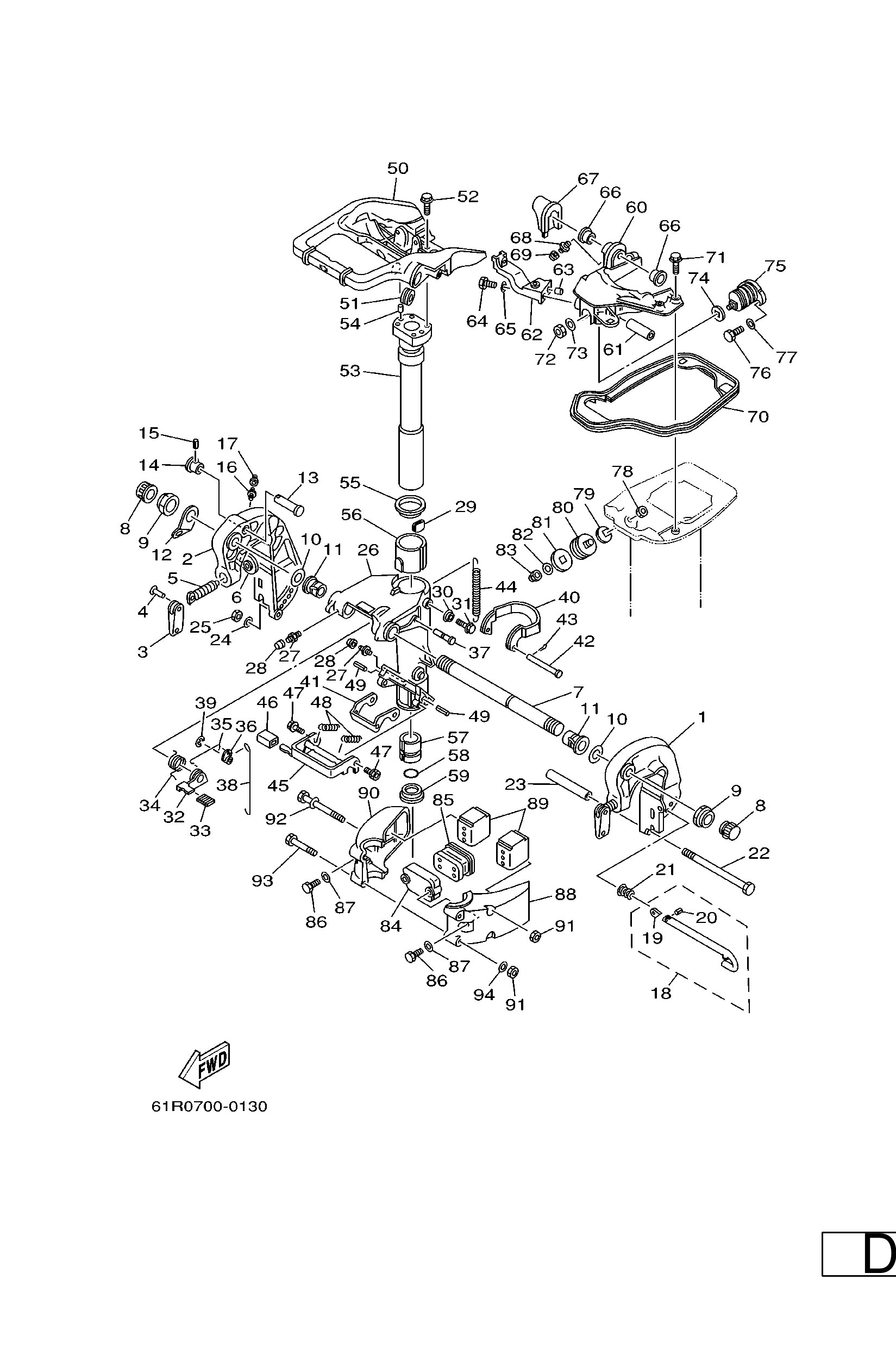

Diagram: BRACKET
Parts List
Reference
Description
Price
1
68943111034D
Bracket, clamp 1
Loading…
↗
2
68943112024D
Bracket, clamp 2
Loading…
↗
3
6E04311801
Handle, transom clamp
Loading…
↗
4
9024304M01
Pin(6a1)
Loading…
↗
5
9014914030
Screw, transom clamp
Loading…
↗
6
6484311401
Pad, transom clamp
Loading…
↗
7
6J84313101
Bolt, clamp bracket
Loading…
↗
8
6G54314500
Cap, clamp bracket
Loading…
↗
9
9018522043
Nut, self-locking
Loading…
↗
10
9020122M03
Washer, plate(64j)
Loading…
↗
11
9038622M67
Bush(6a9)
Loading…
↗
12
6J84311301
Plate, clamp bracket
Loading…
↗
13
6894319100
Shaft, stopper
Loading…
↗
14
6894319201
Knob, stopper
Loading…
↗
15
9169030016
Pin, spring
Loading…
↗
16
9370006M03
Nipple, grease(6a1)
Loading…
↗
17
6634511900
AP
Cap, grease nipple
Loading…
↗
18
6894316000
Tilt rod assembly
Loading…
↗
19
6894316500
Plate, tilt lock
Loading…
↗
20
9169030008
Pin. spring(656)
Loading…
↗
21
9050210M07
Spring, conical(6k3)
Loading…
↗
22
9010108339
Bolt, hexagon (656)
Loading…
↗
23
9038708M03
Collar
Loading…
↗
24
9299508600
Washer, plain (663)
Loading…
↗
25
9538008600
Nut (661)
Loading…
↗
26
68943311034D
Bracket, swivel 1
Loading…
↗
29
6484252800
Plate, friction
Loading…
↗
30
6894337301
Seal, damper
Loading…
↗
31
9010506M18
Bolt (689)
Loading…
↗
32
6894363100
Lever, tilt 1
Loading…
↗
33
6894363300
Cover, tilt lever
Loading…
↗
34
6894364300
Spring, torsion
Loading…
↗
35
6894361600
Rod, tilt lock 1
Loading…
↗
36
6484364200
Lever,tilt 2
Loading…
↗
37
9024906M22
Pin(6a9)
Loading…
↗
38
6484361700
Rod, tilt lock 2
Loading…
↗
39
9343005027
Circlip(22k)
Loading…
↗
40
6894361400
Plate, tilt lock
Loading…
↗
41
6484361500
Plate, tilt lock 2
Loading…
↗
42
9024005046
Pin, Clevis
Loading…
↗
43
9149016010
Pin, cotter
Loading…
↗
44
9050630M27
Spring, tension(6a4)
Loading…
↗
45
6894368101
Lever, shallow water drive 1
Loading…
↗
46
6824331801
Cover
Loading…
↗
47
9010906M18
Bolt (689)
Loading…
↗
48
9050616M17
Spring, tension (689)
Loading…
↗
49
9169040035
Pin, spring (689)
Loading…
↗
50
68942511014D
Bracket, Steering
Loading…
↗
51
9048029045
Grommet 648425510000
Loading…
↗
52
9010506M07
Bolt (689)
Loading…
↗
53
689425210094
Shaft, steering pivot
Loading…
↗
54
9360812063
Pin, dowel (626)
Loading…
↗
55
9020947016
Washer 648425350000
Loading…
↗
56
9038647M22
Bushing (695)
Loading…
↗
57
9038638090
Bushing (664)
Loading…
↗
58
9321037160
O-ring (6g8)
Loading…
↗
59
9038638022
Bush(648-42539-00)
Loading…
↗
60
648445180194
Bracket comp.
Loading…
↗
61
9038710M39
Coller (689)
Loading…
↗
62
648445190094
Bracket
Loading…
↗
63
9360612019
Pin, dowel (614)
Loading…
↗
64
9709506018
Bolt (fj0)
Loading…
↗
65
9299506600
Washer, plain (646)
Loading…
↗
66
9038112M01
Bush, solid(6a4)
Loading…
↗
67
6894271800
Rubber, seal 3
Loading…
↗
70
6894271600
Rubber, Seal 1
Loading…
↗
71
9010506M08
Bolt (689)
Loading…
↗
72
9017010M42
Nut
Loading…
↗
73
9299010200
958-69527-00 washer, plain
Loading…
↗
74
64844591A0
Gasket
Loading…
↗
75
6894451600
Mount damper, upper front
Loading…
↗
76
9709506020
Bolt(7u8)
Loading…
↗
80
664445140094
Mount damper, upper side
Loading…
↗
81
66444591A0
Gasket
Loading…
↗
83
9017610M01
Nut, crown
Loading…
↗
84
689445530094
Cover, lower mount
Loading…
↗
85
6894455700
Mount damper, lower front
Loading…
↗
86
9707508025
Bolt, hexagon deep recess
Loading…
↗
88
68944551014D
Housing, lower mount rubber 1
Loading…
↗
89
6894455500
Mount damper, lower side
Loading…
↗
90
68944552014D
Housing, lower mount rubber 2
Loading…
↗
92
9011908M03
Bolt (689)
Loading…
↗
93
9709508065
Bolt (gk02)
Loading…
↗
