2BMH (2002)
BRACKET

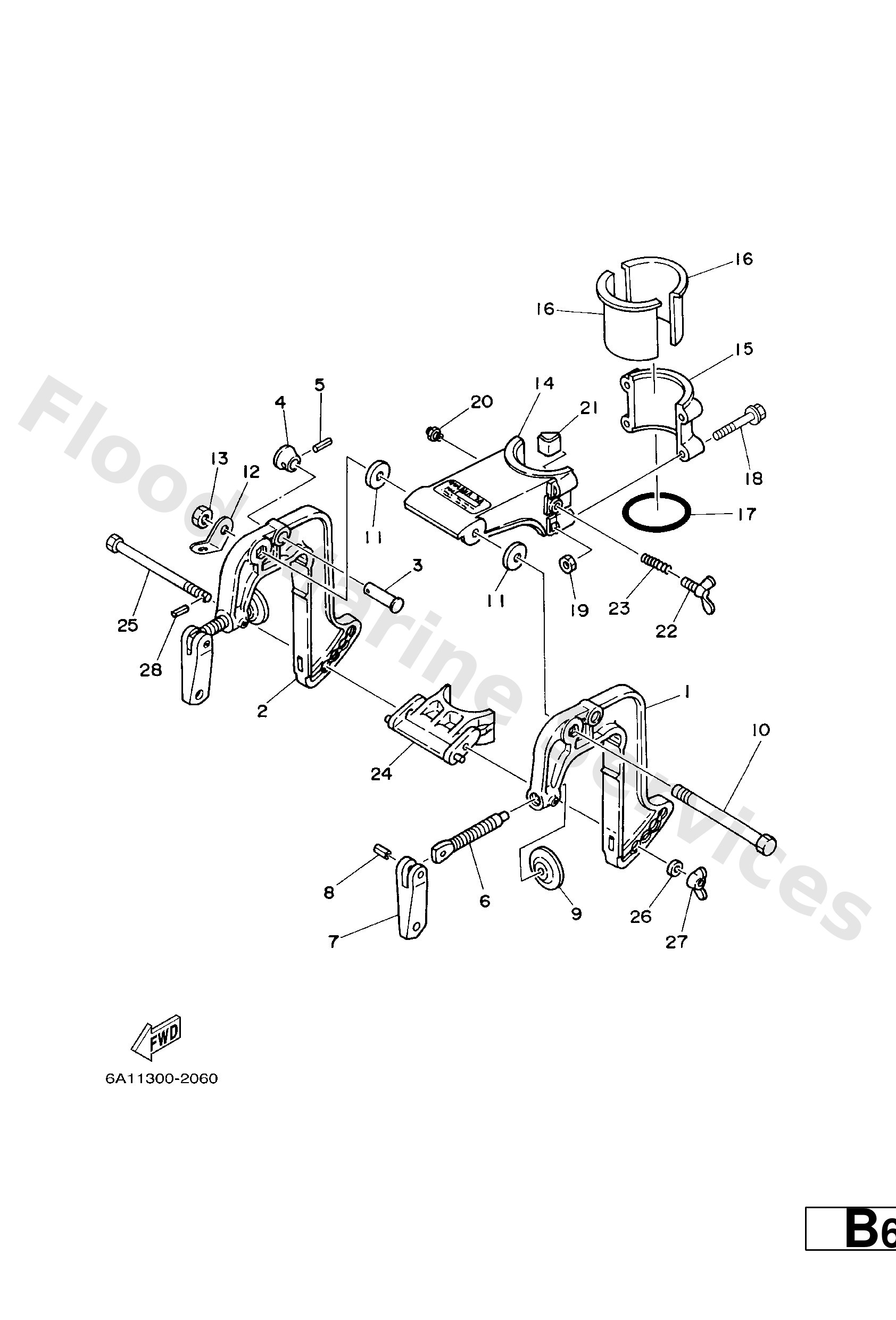

Diagram: BRACKET
Parts List
Reference
Description
Price
1
6A143111034D
Bracket, clamp
Loading…
↗
2
6A143112004D
Bracket, clamp
Loading…
↗
3
6A14319100
Shaft, stopper
Loading…
↗
4
6A14319200
Knob, stopper
Loading…
↗
5
91690--30014
Pin, spring (647)
Loading…
↗
6
6E0--43116--01
Screw, transom clamp
Loading…
↗
7
6E0--43118--01
Handle, transom clamp
Loading…
↗
8
90243--04M01
Pin(6a1)
Loading…
↗
9
620--43114--00
Pad, transom clamp
Loading…
↗
10
9010108217
Bolt 6464313100
Loading…
↗
11
90202--08022
Washer 6464313202
Loading…
↗
12
6A1--43113--01
Plate, clamp bracket
Loading…
↗
13
95380--08600
Nut (661)
Loading…
↗
14
6A143311024D
Bracket, swivel 1
Loading…
↗
15
6A143312004D
Bracket, swivel 2
Loading…
↗
16
6464253701
Bushing, pivot shaft
Loading…
↗
17
93210--46044
O-ring
Loading…
↗
18
9011906M98
Bolt, with washer
Loading…
↗
19
95380--06600
Nut(661)
Loading…
↗
20
93700--06M03
Nipple, grease(6a1)
Loading…
↗
21
6464252800
Piece, friction
Loading…
↗
22
9012206004
Bolt, wing (646)
Loading…
↗
23
9050112272
Spring 6464252401
Loading…
↗
24
6A14335100
Receiver, thrust
Loading…
↗
25
6A14337100
Bolt, receiver
Loading…
↗
26
90201--06040
Washer 6464337400
Loading…
↗
27
9017506008
Nut, Wing
Loading…
↗
28
9169020006
Pin, spring (647)
Loading…
↗
