2BMH (2003)
BRACKET

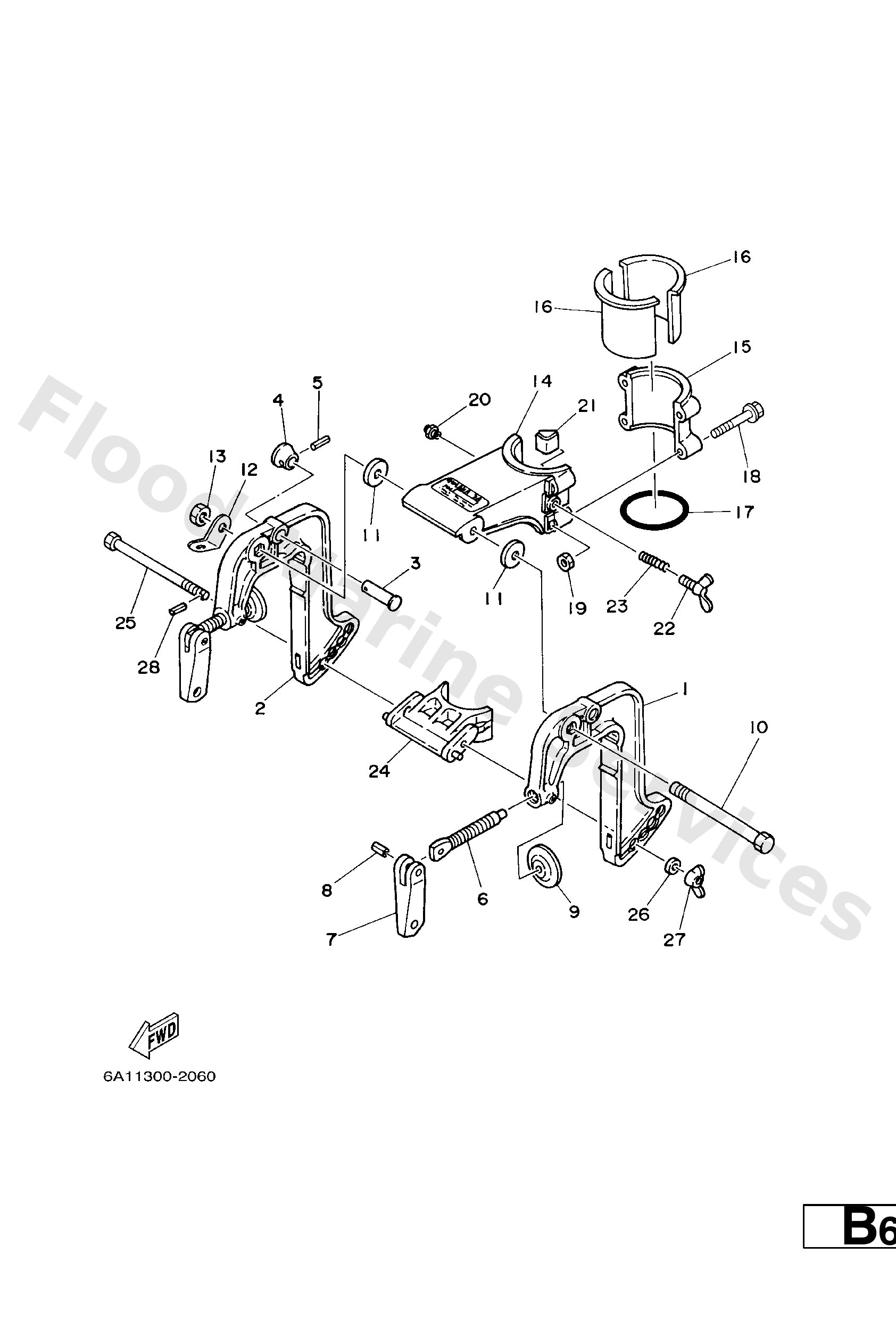

Diagram: BRACKET
Parts List
Reference
Description
Price
1
6A1−43111−03−4D
Bracket, clamp
Loading…
↗
2
6A1−43112−00−4D
Bracket, clamp
Loading…
↗
3
6A1−43191−00
Shaft, stopper
Loading…
↗
4
6A1−43192−00
Knob, stopper
Loading…
↗
5
91690−30014
Pin, spring (647)
Loading…
↗
6
6E0−43116−01
Screw, transom clamp
Loading…
↗
7
6E0−43118−01
Handle, transom clamp
Loading…
↗
8
90243−04M01
Pin(6a1)
Loading…
↗
9
620−43114−00
Pad, transom clamp
Loading…
↗
10
90101−08217
Bolt 6464313100
Loading…
↗
11
90202−08022
Washer 6464313202
Loading…
↗
12
6A1−43113−01
Plate, clamp bracket
Loading…
↗
13
95380−08600
Nut (661)
Loading…
↗
14
6A1−43311−02−4D
Bracket, swivel 1
Loading…
↗
15
6A1−43312−00−4D
Bracket, swivel 2
Loading…
↗
16
646−42537−01
Bushing, pivot shaft
Loading…
↗
17
93210−46044
O-ring
Loading…
↗
18
90119−06M98
Bolt, with washer
Loading…
↗
19
95380−06600
Nut(661)
Loading…
↗
20
93700−06M03
Nipple, grease(6a1)
Loading…
↗
21
646−42528−00
Piece, friction
Loading…
↗
22
90122−06004
Bolt, wing (646)
Loading…
↗
23
90501−12272
Spring 6464252401
Loading…
↗
24
6A1−43351−00
Receiver, thrust
Loading…
↗
25
6A1−43371−00
Bolt, receiver
Loading…
↗
26
90201−06040
Washer 6464337400
Loading…
↗
27
90175−06008
Nut, Wing
Loading…
↗
28
91690−20006
Pin, spring (647)
Loading…
↗
