8CMH (2003)
BRACKET

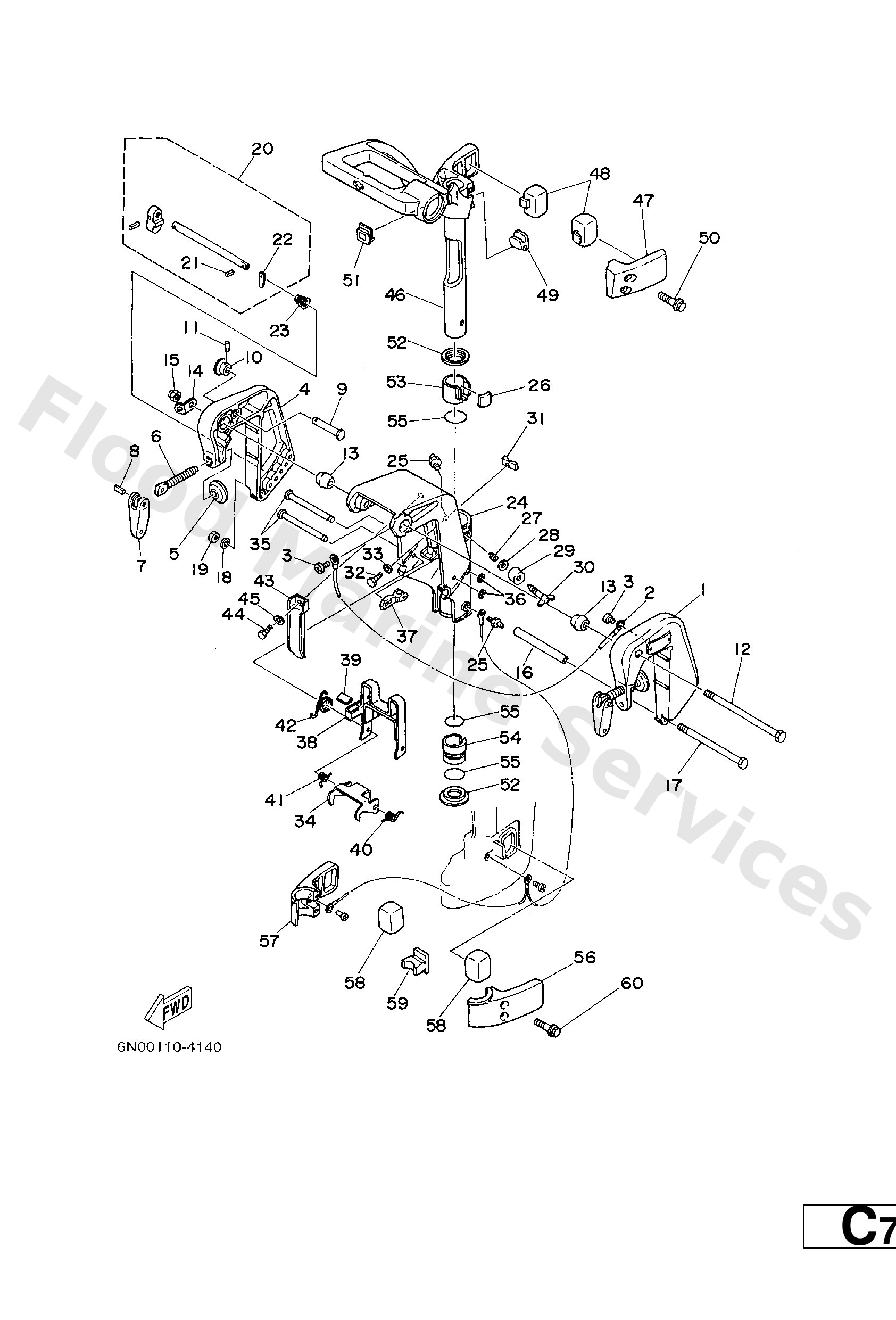

Diagram: BRACKET
Parts List
Reference
Description
Price
2
6E5−82148−00
Wire, lead 5
Loading…
↗
3
97885−06008
Screw, pan head(6a3)
Loading…
↗
5
620−43114−00
Pad, transom clamp
Loading…
↗
6
6N0−G3116−00
Screw, transom clamp.
Loading…
↗
7
6L8−G3118−01
Handle, transom cl
Loading…
↗
8
90243−04M01
Pin(6a1)
Loading…
↗
9
689−43191−00
Shaft, stopper
Loading…
↗
10
689−43192−01
Knob, stopper
Loading…
↗
11
91690−30016
Pin, spring
Loading…
↗
12
90101−08869
Bolt(6h6)
Loading…
↗
13
6N0−G3136−00
Piece, friction
Loading…
↗
14
6A1−43113−01
Plate, clamp bracket
Loading…
↗
15
90185−08057
Nut, nylon (6j8)
Loading…
↗
16
90387−06M13
Collar(6h6)
Loading…
↗
17
97095−06135
Bolt(6g1)
Loading…
↗
18
92990−06600
Washer, plain (646)
Loading…
↗
19
95380−06600
Nut(661)
Loading…
↗
20
6N0−G3160−00
Tilt rod assembly
Loading…
↗
21
91690−30008
Pin. spring(656)
Loading…
↗
22
6N0−G3165−00
Plate, tilt lock
Loading…
↗
23
90502−10M06
Spring, conical(6g1)
Loading…
↗
25
93700−06M03
Nipple, grease(6a1)
Loading…
↗
26
6G1−42528−00
Piece, friction
Loading…
↗
27
90501−18M00
Spring, compression (676)
Loading…
↗
28
92990−08600
Washer, plain (663)
Loading…
↗
29
6G1−43373−00
Seal, damper
Loading…
↗
30
6G1−42529−00
Screw, friction piece
Loading…
↗
31
6G1−44532−01
Stopper, upper mount
Loading…
↗
32
97095−06010
Bolt
Loading…
↗
33
92995−06600
Washer, plain (646)
Loading…
↗
34
6N0−G3614−00
Plate, tilt lock
Loading…
↗
35
6G1−43659−00
Shaft, reverse lock
Loading…
↗
36
99080−05600
Circlip(22k)
Loading…
↗
37
6G1−43615−01
Plate, tilt lock
Loading…
↗
38
6G1−43681−00
Lever, shallow water drive
Loading…
↗
39
6G1−43318−01
Cover
Loading…
↗
40
90508−10M15
Spring, torsion (6g1)
Loading…
↗
41
90508−10M16
Spring, torsion (6g1)
Loading…
↗
42
90508−14M17
Spring, torsion (6g1)
Loading…
↗
43
6N0−G2731−00
Carrying handle
Loading…
↗
44
97095−08016
Bolt, hexagon deep recess
Loading…
↗
45
92995−08600
Washer, plain (663)
Loading…
↗
48
6N0−G4514−00
Mount damper, upper side
Loading…
↗
49
6G1−44516−00
Mount damper, upper front
Loading…
↗
50
95895−06035
Bolt, flange(4nx)
Loading…
↗
51
6G1−42551−00
Grommet
Loading…
↗
52
6G1−42535−00
Washer, thrust 1
Loading…
↗
53
6G1−42537−00
Bushing, pivot shaft
Loading…
↗
54
6G1−42538−01
Bushing, pivot shaft
Loading…
↗
55
93210−30M31
O-ring (6a5)
Loading…
↗
58
6N0−G4555−A0
Mount damper, lower side
Loading…
↗
59
6N0−G4557−A0
Mount damper, lower front
