Yamaha Outboard Parts - BRACKET - E8DMH (2003) | Flood Marine

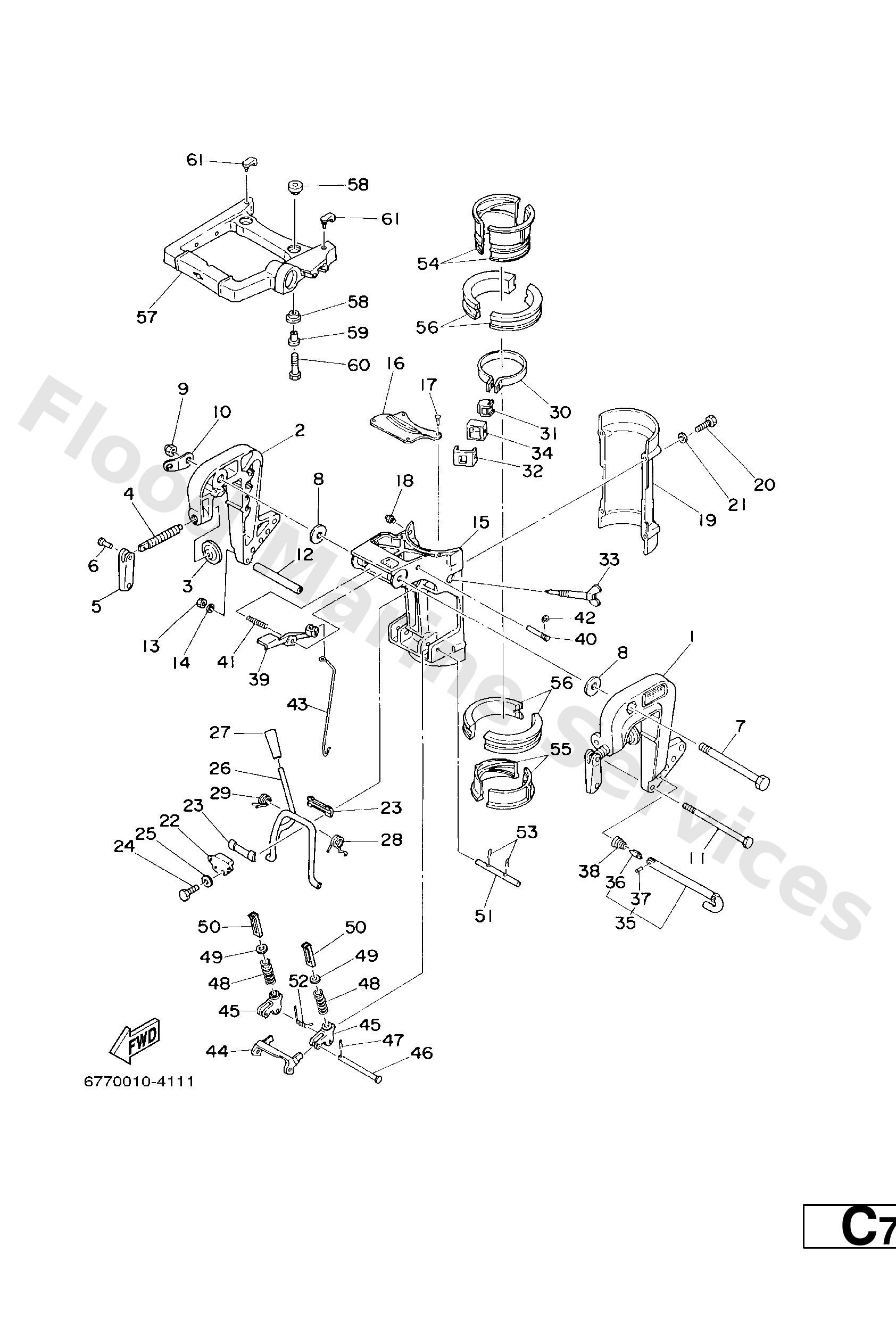

Diagram: BRACKET

Diagram

Parts List

Reference
Description
Price


1
620−43111−02−4D
Bracket, clamp
Loading…

↗
2
620−43112−01−4D
Bracket, clamp
Loading…

↗
3
620−43114−00
Pad, transom clamp
Loading…

↗
4
677−43116−01
Screw, transom clamp.
Loading…

↗
5
663−43118−01−4D
Handle, transom clamp
Loading…

↗
6
90243−04007
Pin (663)
Loading…

↗
7
90101−10M00
Bolt(6k3)
Loading…

↗
8
90201−10M66
Washer, plate (677)
Loading…

↗
9
90185−10051
Nut, self-locking
Loading…

↗
10
6E7−43113−01
Plate, clamp bracket
Loading…

↗
11
90101−06336
Bolt, hexagon (655)
Loading…

↗
12
90387−06M11
Collar
Loading…

↗
13
95380−06600
Nut(661)
Loading…

↗
14
92990−06600
Washer, plain (646)
Loading…

↗
15
677−43311−01−4D
Bracket, swivel 1
Loading…

↗
16
655−43318−00−4D
Cover
Loading…

↗
17
90269−02M08
Rivet(6l4)
Loading…

↗
18
93700−06M03
Nipple, grease(6a1)
Loading…

↗
19
647−43312−00−4D
Bracket, swivel
Loading…

↗
20
97095−06040
Bolt (682)
Loading…

↗
21
92995−06600
Washer, plain (646)
Loading…

↗
22
654−43313−00−94
Bracket, swivel 3
Loading…

↗
23
620−43189−00
Bushing
Loading…

↗
24
97095−06025
Bolt
Loading…

↗
26
647−43181−00
Lever, Tilt Stop
Loading…

↗
27
620−43632−00
Knob, tilt
Loading…

↗
28
90508−16021
Spring 6474318800
Loading…

↗
29
90508−16020
Spring 6474319800
Loading…

↗
30
655−42525−00
Plate, friction 1
Loading…

↗
31
655−42526−00
Plate, friction 2
Loading…

↗
32
655−42527−00
Plate, friction 3
Loading…

↗
33
655−42529−00
Screw, fricition piece
Loading…

↗
34
655−42532−00
Cover 1
Loading…

↗
35
6L4−43160−00
Tilt rod assembly
Loading…

↗
36
689−43165−00
Plate, tilt lock
Loading…

↗
37
91690−30008
Pin. spring(656)
Loading…

↗
38
90502−10M07
Spring, conical(6k3)
Loading…

↗
39
677−43630−00
Tilt lever assembly
Loading…

↗
40
90249−04M05
Pin (677)
Loading…

↗
41
90501−16104
Spring 6474364200
Loading…

↗
42
99001−04600
Circlip (eu0)
Loading…

↗
43
677−43616−00
Rod, tilt lock 1
Loading…

↗
44
647−43614−00
Plate, tilt lock 1
Loading…

↗
45
647−43615−01
Plate, tilt lock 2
Loading…

↗
46
90240−05047
Pin with hole(655)
Loading…

↗
47
90468−10005
Pin, hair 6264123500
Loading…

↗
48
90501−26147 S/L
Spring 6474365600
Loading…

↗
48
90501−26146 X
Spring 6474365620
Loading…

↗
49
647−43627−01
Stopper 1
Loading…

↗
50
647−43613−00
Arm, tilt lock
Loading…

↗
51
647−43659−00
Shaft, Reverse Lock
Loading…

↗
52
90508−18022
Spring, Torsion
Loading…

↗
53
90468−10003
Pin, hair 6474123500
Loading…

↗
54
647−42537−00
Bushing, pivot shaft
Loading…

↗
55
677−42538−00
Bushing, pivot shaft 2
Loading…

↗
56
647−42539−00
Bushing, pivot shaft
Loading…

↗
57
655−42511−00−4D
Bracket, steering
Loading…

↗
58
647−42541−00
Damper
Loading…

↗
59
655−42542−00
Pipe 1
Loading…

↗
60
97075−08035
Bolt(70w)
Loading…

↗
61
647−42523−00
Spacer, friction
Loading…

↗
