Yamaha Outboard Parts - BRACKET - F2.5AMH (2014) | Flood Marine

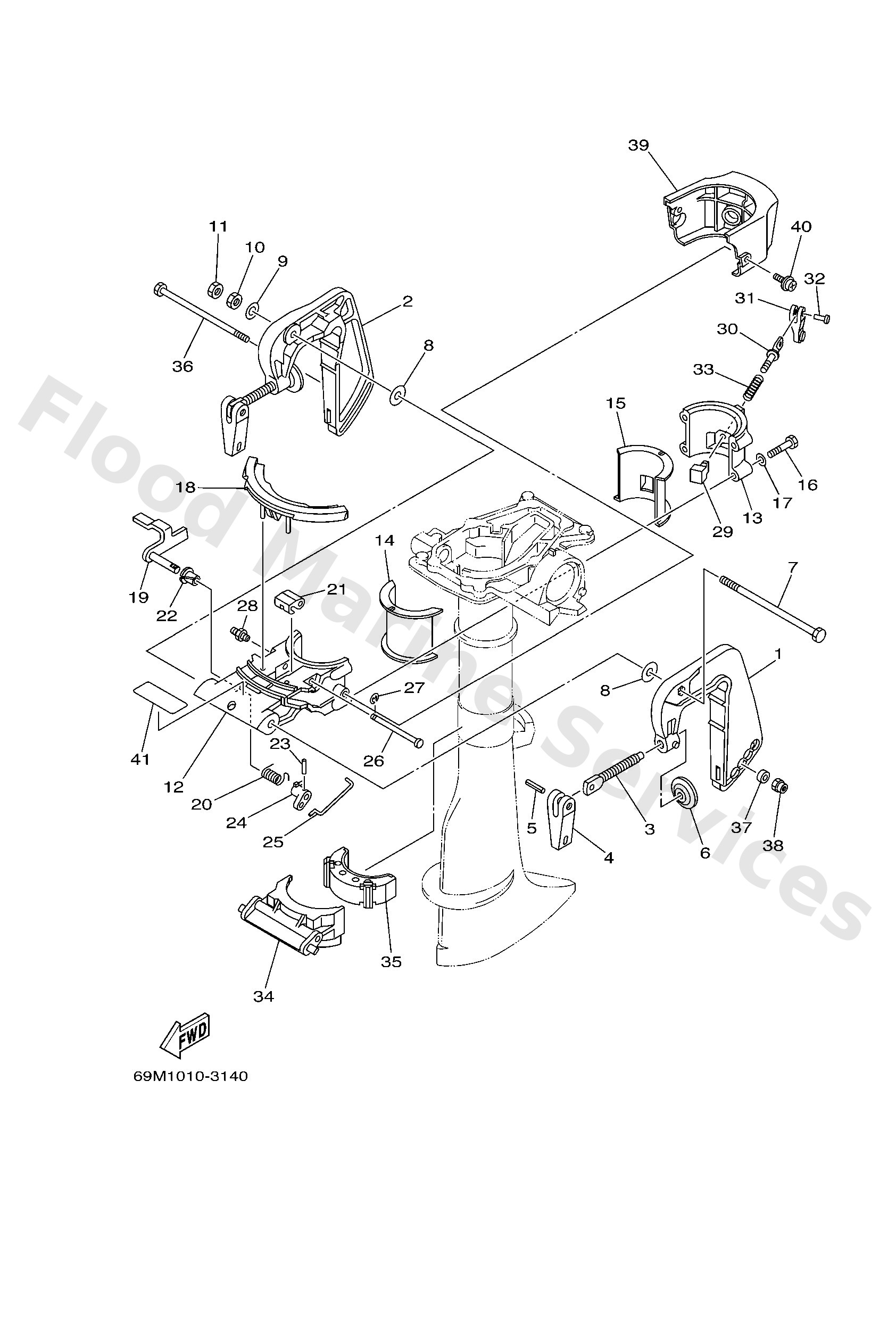

Diagram: BRACKET

Diagram

Parts List

Reference
Description
Price


1
69MG3111004D
Bracket,clamp 1
Loading…

↗
2
69MG3112004D
Bracket,clamp 2
Loading…

↗
3
6E04311601
Screw, transom clamp
Loading…

↗
4
69MG311800
Handle transom clamp
Loading…

↗
5
9024304M01
Pin(6a1)
Loading…

↗
6
6204311400
Pad, transom clamp
Loading…

↗
7
9010108M07
Bolt(6e0)
Loading…

↗
8
9020208022
Washer 6464313202
Loading…

↗
9
9299008200
Ybs66-8 washer, plain
Loading…

↗
10
9538008600
Nut (661)
Loading…

↗
11
9538008700
Nut(661)
Loading…

↗
12
69MG3311014D
Bracket swivel 1
Loading…

↗
13
69MG3312004D
Bracket, swivel 2
Loading…

↗
14
69MG253700
Bushing,pivot shaft 1
Loading…

↗
15
69MG253800
Bushing,pivot shaft 2
Loading…

↗
16
9707506030
Bolt(jf7)
Loading…

↗
17
9299506600
Washer, plain (646)
Loading…

↗
18
69M4367900
Cover
Loading…

↗
19
69M4318000
Tilt stop lever assembly
Loading…

↗
20
69MG318800
Spring
Loading…

↗
21
69MG318600
Lever
Loading…

↗
22
9038608032
Bushing (650)
Loading…

↗
23
9169020010
Pin, spring
Loading…

↗
24
69MG318500
Lever, tilt stop 2
Loading…

↗
25
69MG316400
Rod, tilt lock
Loading…

↗
26
69MG316600
Pin
Loading…

↗
27
9908004600
Circlip (eu0)
Loading…

↗
28
9370006M03
Nipple, grease(6a1)
Loading…

↗
29
69M4252800
Plate, friction
Loading…

↗
30
69M4252900
Screw, friction pi
Loading…

↗
31
68DG256101
Knob, steering loc
Loading…

↗
32
9026604M05
Rivet(6l5)
Loading…

↗
33
9050112803
Spring, compression
Loading…

↗
34
69MG335100
Receiver,thrust
Loading…

↗
35
69M4455700
Mount damper, lower front
Loading…

↗
36
9010106030
Bolt
Loading…

↗
37
9020106040
Washer 6464337400
Loading…

↗
38
9578006300
Nut, nylon (6g1)
Loading…

↗
39
69MG331800
Cover
Loading…

↗
40
9015906M11
Screw, with washer(6l2)
Loading…

↗
41
69MG369100
Indicator, tilt
Loading…

↗
