F2.5BMH (2024)
BRACKET

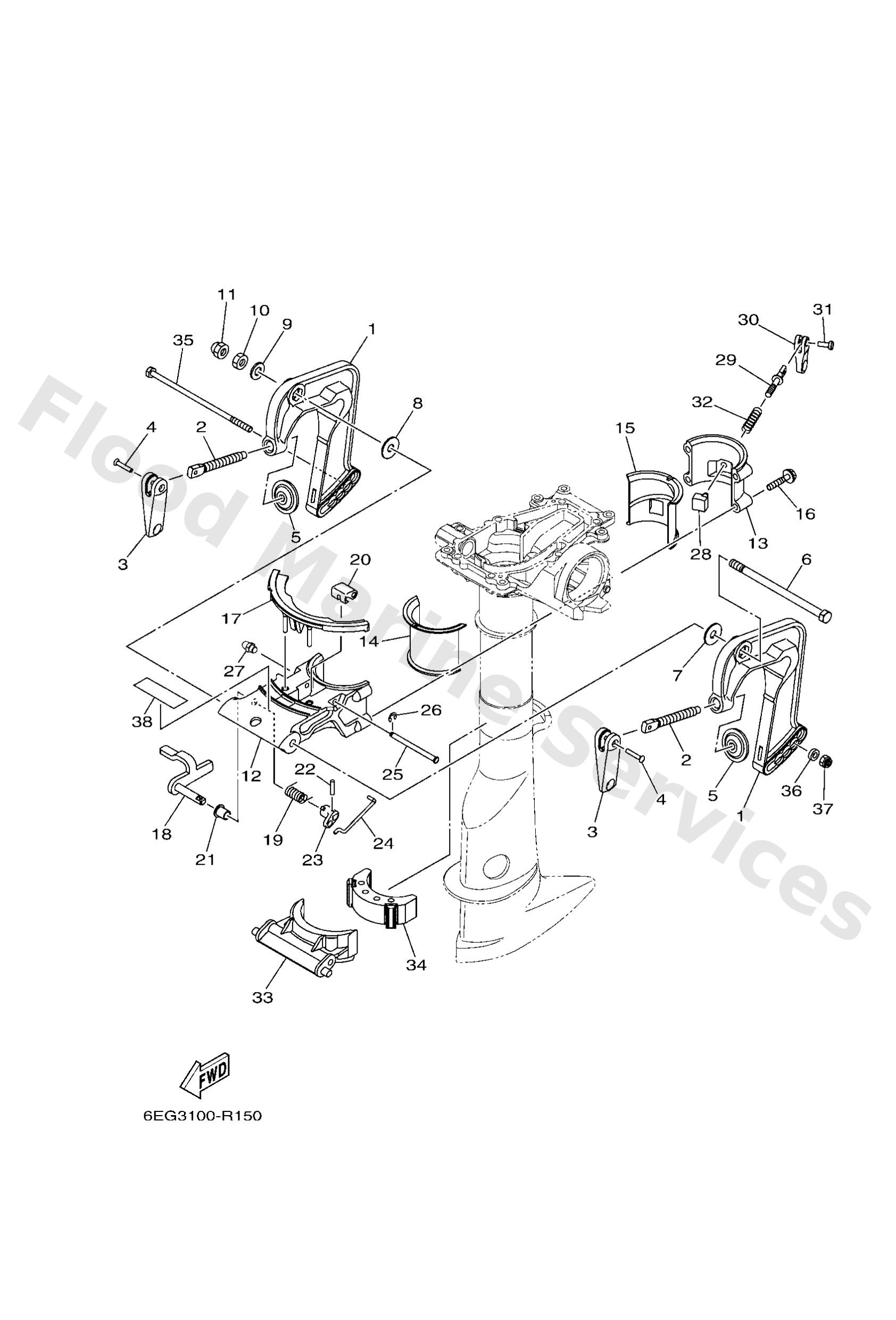

Diagram: BRACKET
Parts List
Reference
Description
Price
1
6EGG3111008D
Bracket, clamp 1
Loading…
↗
2
6E04311601
Screw, transom clamp
Loading…
↗
3
6EEG311800
Handle, transom cl
Loading…
↗
4
9024304M01
Pin(6a1)
Loading…
↗
5
6484311401
Pad, transom clamp
Loading…
↗
6
9010108M07
Bolt(6e0)
Loading…
↗
7
9020208022
Washer 6464313202
Loading…
↗
8
9020208004
Washer, plate
Loading…
↗
9
9299008200
Ybs66-8 washer, plain
Loading…
↗
10
9538008600
Nut (661)
Loading…
↗
11
9538008800
Nut crown (2g2)
Loading…
↗
12
6EGG3311008D
Bracket, swivel 1
Loading…
↗
13
6EGG3312008D
Bracket, swivel 2
Loading…
↗
14
6EGG253700
Bushing,pivot shaft 1
Loading…
↗
15
6EGG253800
Bushing, pivot sha
Loading…
↗
16
97E7506530
Bolt, hexagon w/w deep recess
Loading…
↗
17
6EGG367900
Cover
Loading…
↗
18
6EGG318000
Tilt stop lever as
Loading…
↗
19
6EGG318800
Spring
Loading…
↗
20
6EGG318600
Lever
Loading…
↗
21
9038608032
Bushing (650)
Loading…
↗
22
9169020010
Pin, spring
Loading…
↗
23
6EGG318500
Lever, tilt stop 2
Loading…
↗
24
6EGG316400
Rod, tilt lock
Loading…
↗
25
6EGG316600
Pin
Loading…
↗
26
9908004600
Circlip (eu0)
Loading…
↗
27
9370006M03
Nipple, grease(6a1)
Loading…
↗
28
6EGG252801
Plate, friction
Loading…
↗
29
6EGG252900
Screw, friction pi
Loading…
↗
30
6EEG256100
Knob, steering loc
Loading…
↗
31
9026604M05
Rivet(6l5)
Loading…
↗
32
9050112803
Spring, compression
Loading…
↗
33
6EGG335100
Receiver, thrust
Loading…
↗
34
69M4455700
Mount damper, lower front
Loading…
↗
35
9010106062
Bolt
Loading…
↗
36
9020106040
Washer 6464337400
Loading…
↗
37
9578006300
Nut, nylon (6g1)
Loading…
↗
38
6EGG369100
Indicator, tilt
Loading…
↗
