Yamaha Outboard Parts - BRACKET - F4AMH (2006) | Flood Marine

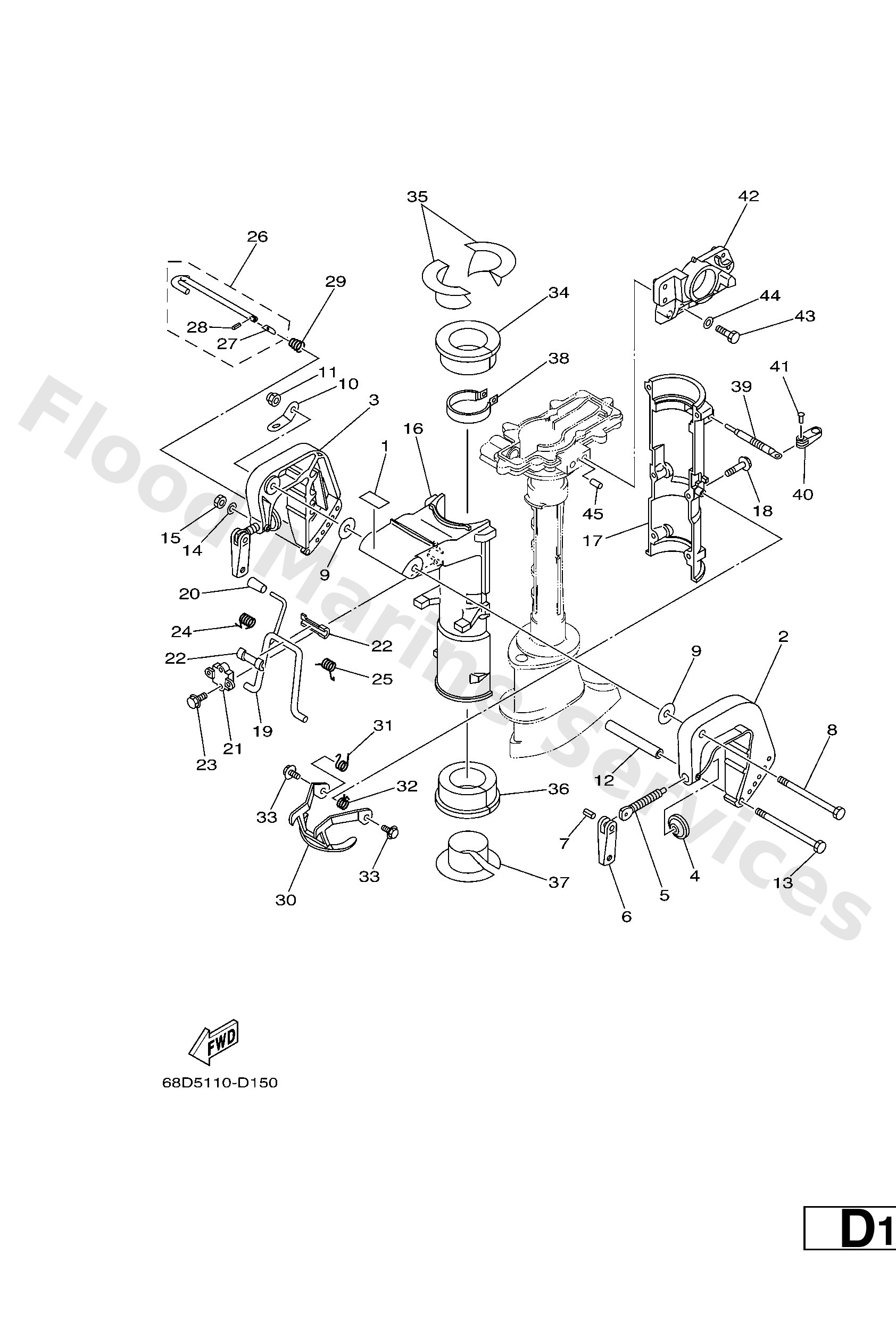

Diagram: BRACKET

Diagram

Parts List

Reference

Description

Price

1

68DF459100

Emblem, Fuel Cock

Loading…

2

6L8G3111014D

Bracket, clamp 1

Loading…

3

6L8G3112004D

Bracket, clamp 2

Loading…

4

6204311400

Pad, transom clamp

Loading…

5

6E04311601

Screw, transom clamp

Loading…

6

6L8G311801

Handle, transom cl

Loading…

7

9024304M01

Loading…

8

9010108M07

Loading…

9

9020208M58

Loading…

10

68DG311300

Plate, clamp bracket

Loading…

11

9018508057

Nut, nylon (6j8)

Loading…

12

9038706M11

Loading…

13

9010106335

Bolt, hexagon (624)

Loading…

14

9299006600

Washer, plain (646)

Loading…

15

9538006600

Loading…

16

68DG3311004D

Bracket, swivel 1

Loading…

17

68DG3312004D

Bracket, swivel 2

Loading…

18

9589506035

Bolt, flange(4nx)

Loading…

19

6E04318100

Lever, tilt stop 1

Loading…

20

6E04363200

Loading…

21

6E043313004D

Bracket, swivel 3

Loading…

22

6204318900

Loading…

23

9589506020

Bolt, flange(jk3)

Loading…

24

9050816020

Spring 6474319800

Loading…

25

9050816021

Spring 6474318800

Loading…

26

68DG316000

Tilt rod assembly

Loading…

27

6N0G316500

Plate, tilt lock

Loading…

28

9169030008

Pin. spring(656)

Loading…

29

9050208M05

Spring, conical(6e0)

Loading…

30

6E043614005B

Plate, tilt lock

Loading…

31

9050814M10

Spring, torsion (6e0)

Loading…

32

9050814M11

Spring, torsion (6e0)

Loading…

33

9589506010

Bolt, flange(7ht)

Loading…

34

68DG253700

Bushing, pivot sha

Loading…

35

68DG253900

Bushing, pivot sha

Loading…

36

68DG253800

Bushing, Pivot Shaft

Loading…

37

68DG254900

Bush, pivot shaft 4

Loading…

38

6E04252803

Plate, friction

Loading…

39

6L54252901

Screw, friction piece

Loading…

40

68DG256101

Knob, steering loc

Loading…

41

9026604M05

Loading…

42

68DG2511004D

Bracket, Steering

Loading…

43

9707508030

Bolt, hexagon (fj1)

Loading…

44

9299508600

Washer, plain (663)

Loading…

45

9360412M07

Pin, dowel (688)

Loading…
