F5AMH (2024)
BRACKET

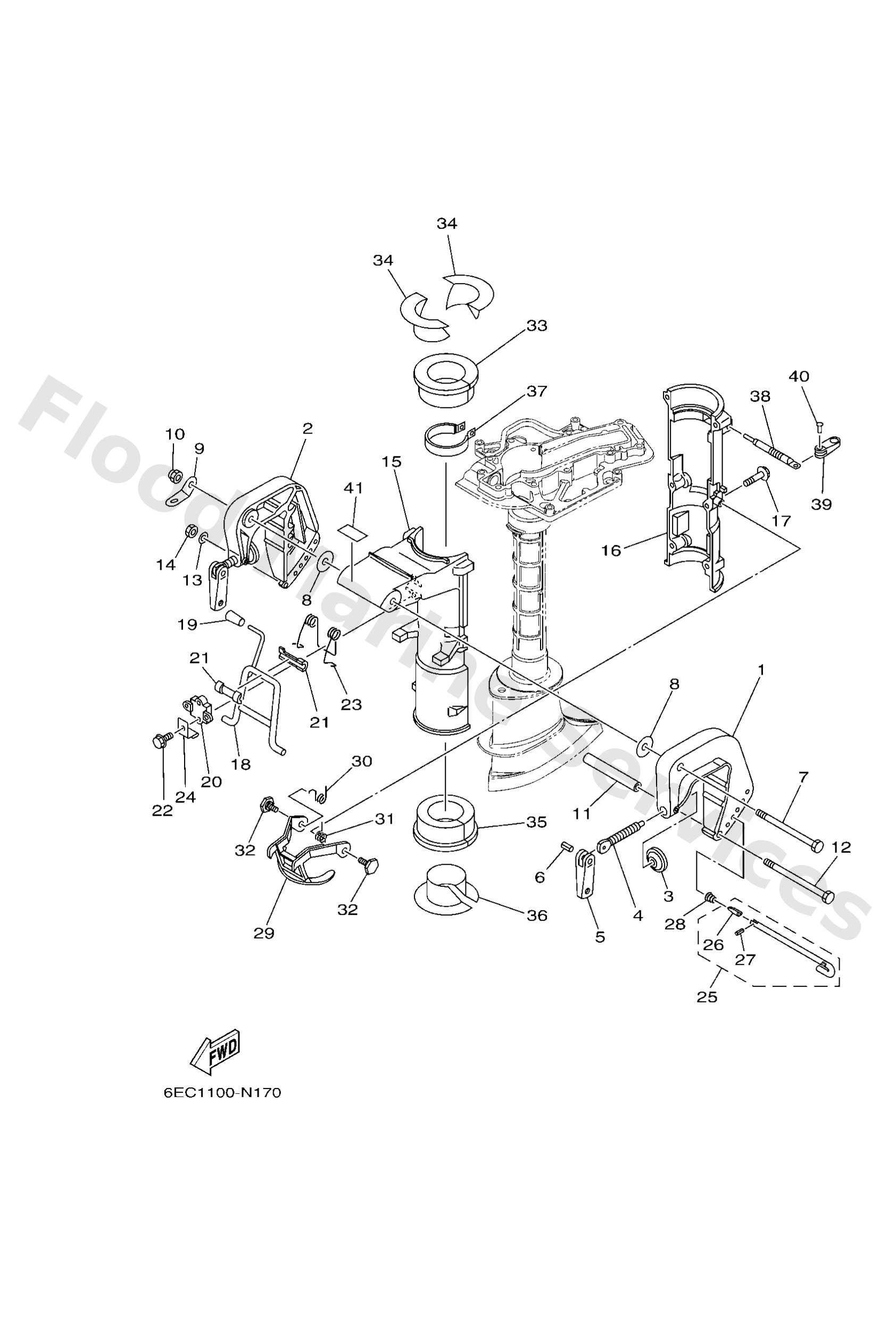

Diagram: BRACKET
Parts List
Reference
Description
Price
1
6EEG3111008D
Bracket, clamp 1
Loading…
↗
2
6EEG3112008D
Bracket, clamp 2
Loading…
↗
3
6484311401
Pad, transom clamp
Loading…
↗
4
6E04311601
Screw, transom clamp
Loading…
↗
5
6EEG311800
Handle, transom cl
Loading…
↗
6
9024304M01
Pin(6a1)
Loading…
↗
7
9010108M07
Bolt(6e0)
Loading…
↗
8
9020208M58
Washer, plate
Loading…
↗
9
6EEG311300
Plate, clamp brack
Loading…
↗
10
9018508057
Nut, nylon (6j8)
Loading…
↗
11
9038706379
Collar
Loading…
↗
12
9010106335
Bolt, hexagon (624)
Loading…
↗
13
9299006600
Washer, plain (646)
Loading…
↗
14
9538006600
Nut(661)
Loading…
↗
15
6EEG3311008D
Bracket, swivel 1
Loading…
↗
16
6EEG3312008D
Bracket, swivel 2
Loading…
↗
17
95D9506035
Bolt, flange deep recess
Loading…
↗
18
6EEG3181008D
Lever, tilt stop 1
Loading…
↗
19
6E04363200
Knob, tilt
Loading…
↗
20
6EEG3313018D
Bracket, swivel 3
Loading…
↗
21
6204318900
Bushing
Loading…
↗
22
95D9506020
Bolt, flange deep recess
Loading…
↗
23
6EEG856100
Spring 1
Loading…
↗
24
6EEG331900
Plate
Loading…
↗
25
6EEG316000
Tilt rod assembly
Loading…
↗
26
6EEG316500
Plate, tilt lock
Loading…
↗
27
9169030006
Pin, spring(6j8)
Loading…
↗
28
9050208M05
Spring, conical(6e0)
Loading…
↗
29
6EEG361400
Plate, tilt lock
Loading…
↗
30
6EEG318800
Spring
Loading…
↗
31
6EEG319800
Spring 2
Loading…
↗
32
9010906M84
Bolt
Loading…
↗
33
6EEG253700
Bushing, pivot sha
Loading…
↗
34
6EEG253900
Bushing, pivot sha
Loading…
↗
35
6EEG253800
Bushing, pivot sha
Loading…
↗
36
6EEG254900
Bushing, pivot sha
Loading…
↗
37
6E04252804
Plate, friction
Loading…
↗
38
6L54252901
Screw, friction piece
Loading…
↗
39
6EEG256100
Knob, steering loc
Loading…
↗
40
9026604M05
Rivet(6l5)
Loading…
↗
41
6EEF459100
Emblem, fuel cock
Loading…
↗
