15FMH (2023)
BRACKET 1

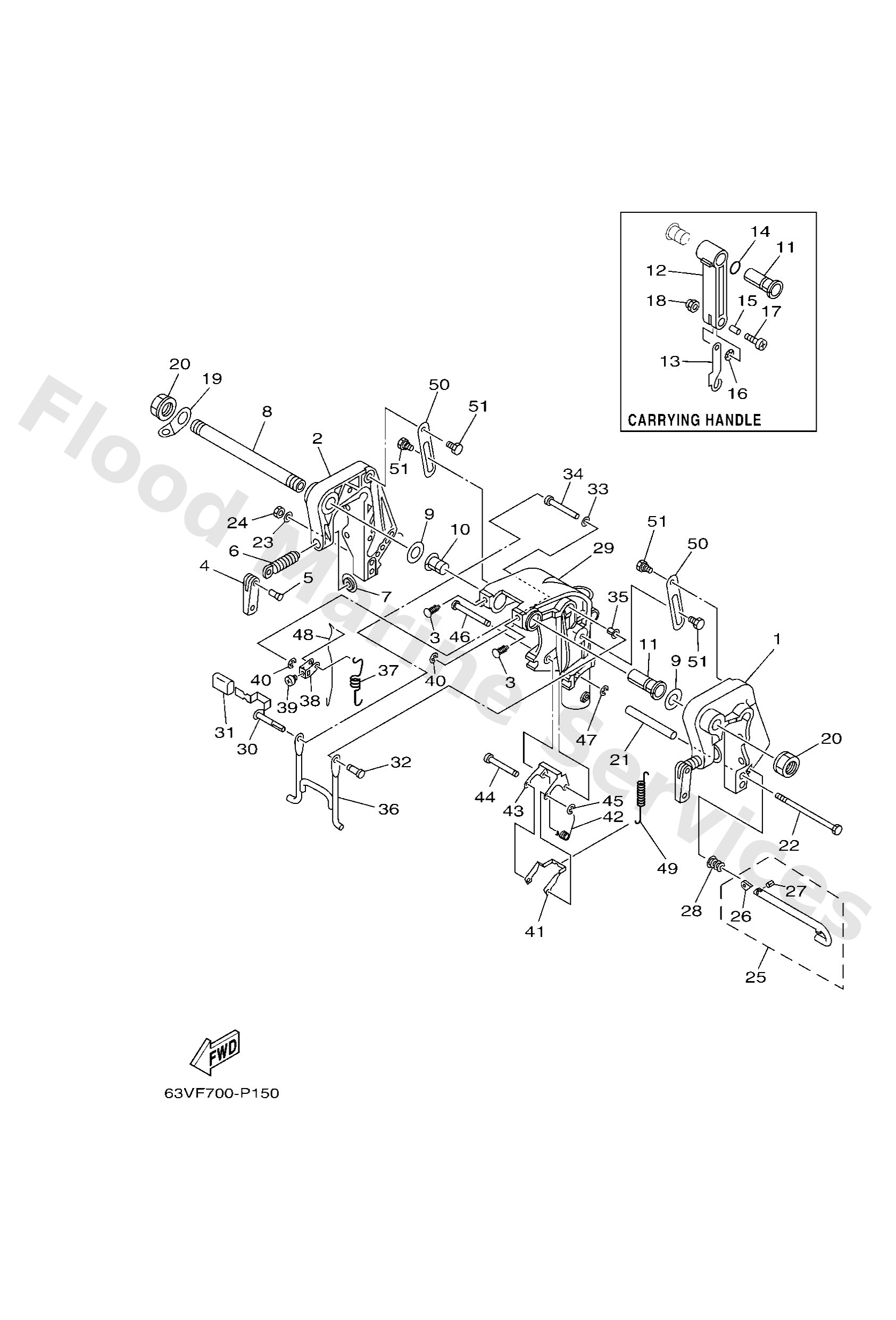

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
63V43111078D
Bracket, clamp 1
Loading…
↗
2
63V43112088D
Bracket, clamp 2
Loading…
↗
3
9026907015
Rivet
Loading…
↗
4
6E04311801
Handle, transom clamp
Loading…
↗
5
9024304M01
Pin(6a1)
Loading…
↗
6
6E74311600
Screw, transom clamp
Loading…
↗
7
6484311401
Pad, transom clamp
Loading…
↗
8
63W4313101
Bolt, clamp bracket
Loading…
↗
9
9020222M54
Washer, plate(63v)
Loading…
↗
10
9038622M94
Bush(63v)
Loading…
↗
11
9038622M69
CARRYING HANDLE
Bush(6k9)
Loading…
↗
12
63V42731008D
CARRYING HANDLE
Carrying handle
Loading…
↗
13
63V4367601
CARRYING HANDLE
Hook
Loading…
↗
14
9321020M65
CARRYING HANDLE
O-ring
Loading…
↗
15
9038706M75
CARRYING HANDLE
Collar(63v)
Loading…
↗
16
9020608010
CARRYING HANDLE
Washer(656)
Loading…
↗
17
9788506025
CARRYING HANDLE
Screw, pan head(6b0)
Loading…
↗
18
9578006300
CARRYING HANDLE
Nut, nylon (6g1)
Loading…
↗
19
6J84311301
Plate, clamp bracket
Loading…
↗
20
9018522043
Nut, self-locking
Loading…
↗
21
9038706M13
Collar(6h6)
Loading…
↗
22
9010106M29
Bolt, hexagon (682)
Loading…
↗
23
9299506600
Washer, plain (646)
Loading…
↗
24
9538006700
Nut
Loading…
↗
25
6894316000
Tilt rod assembly
Loading…
↗
26
6894316500
Plate, tilt lock
Loading…
↗
27
9169030008
Pin. spring(656)
Loading…
↗
28
9050210M07
Spring, conical(6k3)
Loading…
↗
29
63V43311038D
Bracket, swivel 1
Loading…
↗
30
66M4363001
Tilt lever assembly
Loading…
↗
31
6824331801
Cover
Loading…
↗
32
63V4319100
Shaft, stopper
Loading…
↗
33
9020207M60
Washer, plate
Loading…
↗
34
9038707M07
Collar
Loading…
↗
35
9038607M95
Bush(63v)
Loading…
↗
36
66M4335001
Receiver assembly
Loading…
↗
37
9050720M00
Spring, tension(63v)
Loading…
↗
38
63V4364101
Lever, tilt
Loading…
↗
39
9015705014
Screw, pan head
Loading…
↗
40
9908005600
Circlip(22k)
Loading…
↗
41
63V4361410
Plate, tilt lock
Loading…
↗
42
9050818M41
Spring, torsion
Loading…
↗
43
66R4361500
Plate, tilt lock
Loading…
↗
44
66R4361100
Shaft, tilt lock
Loading…
↗
45
9343004M03
Circlip (eu0)
Loading…
↗
46
63V4365900
Shaft, reverse lock
Loading…
↗
48
66R4361700
Rod, tilt lock
Loading…
↗
49
63V4365600
Spring, reverse lock 1
Loading…
↗
50
63V4318100
Lever, tilt stop 1
Loading…
↗
51
9010906M84
Bolt
Loading…
↗
