20DWO (2008)
BRACKET 1

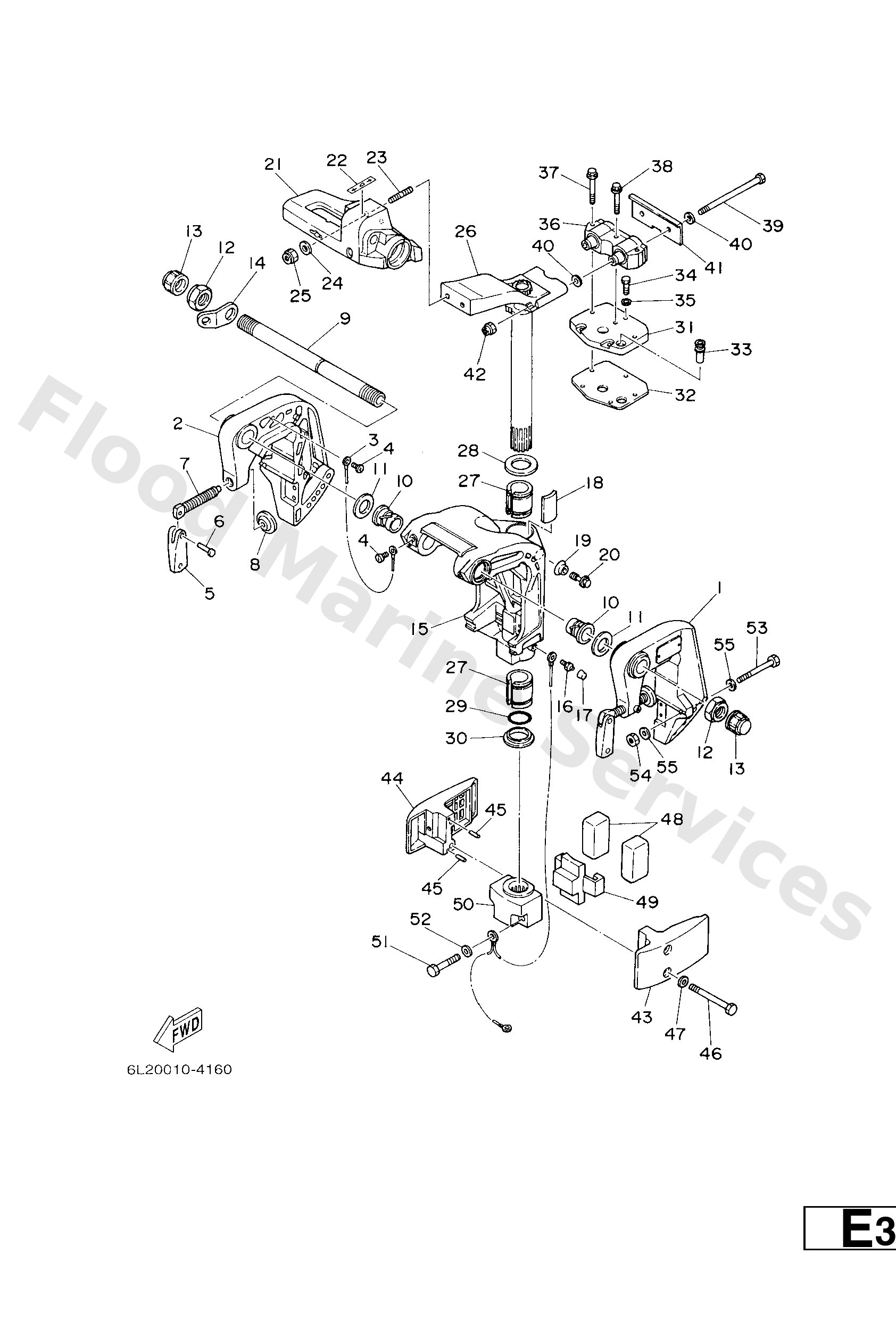

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6L243111054D
Bracket, clamp 1
Loading…
↗
2
6L243112064D
Bracket, clamp 2
Loading…
↗
3
6E58214800
Wire, lead 5
Loading…
↗
4
9788506008
Screw, pan head(6a3)
Loading…
↗
5
6E04311801
Handle, transom clamp
Loading…
↗
6
9024304M01
Pin(6a1)
Loading…
↗
7
6L24311600
Screw, transom clamp
Loading…
↗
8
6484311401
Pad, transom clamp
Loading…
↗
9
6J84313101
Bolt, clamp bracket
Loading…
↗
10
9038622M67
Bush(6a9)
Loading…
↗
11
9020122M03
Washer, plate(64j)
Loading…
↗
12
9018522043
Nut, self-locking
Loading…
↗
13
6G54314501
Cap, clamp bracket
Loading…
↗
14
6J84311301
Plate, clamp bracket
Loading…
↗
15
6L243311054D
Bracket, swivel 1
Loading…
↗
16
9370006M03
Nipple, grease(6a1)
Loading…
↗
17
6634511900
AP
Cap, grease nipple
Loading…
↗
18
6H44252800
Piece, friction
Loading…
↗
19
6894337301
Seal, damper
Loading…
↗
20
9010506M18
Bolt (689)
Loading…
↗
21
6L242121034D
Bracket
Loading…
↗
22
6E04419111
Indicator, shift
Loading…
↗
23
9011610M28
Bolt, stud
Loading…
↗
24
9299510600
Washer, plate
Loading…
↗
25
9018510051
Nut, self-locking
Loading…
↗
26
6L242510014D
Steering bracket assembly
Loading…
↗
27
9038630M75
Bush(6l2)
Loading…
↗
28
9020130M00
Washer, plate(6h1)
Loading…
↗
29
9321029375
O-ring (j10)
Loading…
↗
30
9038630M60
Bush(6j8)
Loading…
↗
31
6L244512004D
Cover, upper mount
Loading…
↗
32
6L245114A1
Gasket, upper casing
Loading…
↗
33
6L24436500
Damper, water seal 1
Loading…
↗
34
9709506020
Bolt(7u8)
Loading…
↗
35
9299506600
Washer, plain (646)
Loading…
↗
36
6L24451401
Mount damper, upper side
Loading…
↗
37
9011906M04
Bolt, with washer(6l2)
Loading…
↗
38
9011906M05
Bolt, with washer(6l2)
Loading…
↗
39
9010108M09
Bolt(6l2)
Loading…
↗
40
9020108M01
Washer, plate(6l2)
Loading…
↗
41
6L24452600
Plate
Loading…
↗
42
9018508057
Nut, nylon (6j8)
Loading…
↗
43
6L244551014D
Housing, lower mount rubber 1
Loading…
↗
44
6L244552014D
Housing, lower mount rubber 2
Loading…
↗
45
9360412M07
Pin, dowel (688)
Loading…
↗
46
9709508085
Bolt, with washer
Loading…
↗
47
9299508600
Washer, plain (663)
Loading…
↗
48
6L24455500
Mount damper, lower side
Loading…
↗
49
6L24455700
Mount damper, lower front
Loading…
↗
50
6L244553014D
Cover, lower mount
Loading…
↗
51
9709508045
Bolt, hexagon
Loading…
↗
53
9709508070
Bolt, hexagon
Loading…
↗
54
9538008600
Nut (661)
Loading…
↗
55
9299008600
Washer, plain (663)
Loading…
↗
