25BMH (2003)
BRACKET 1

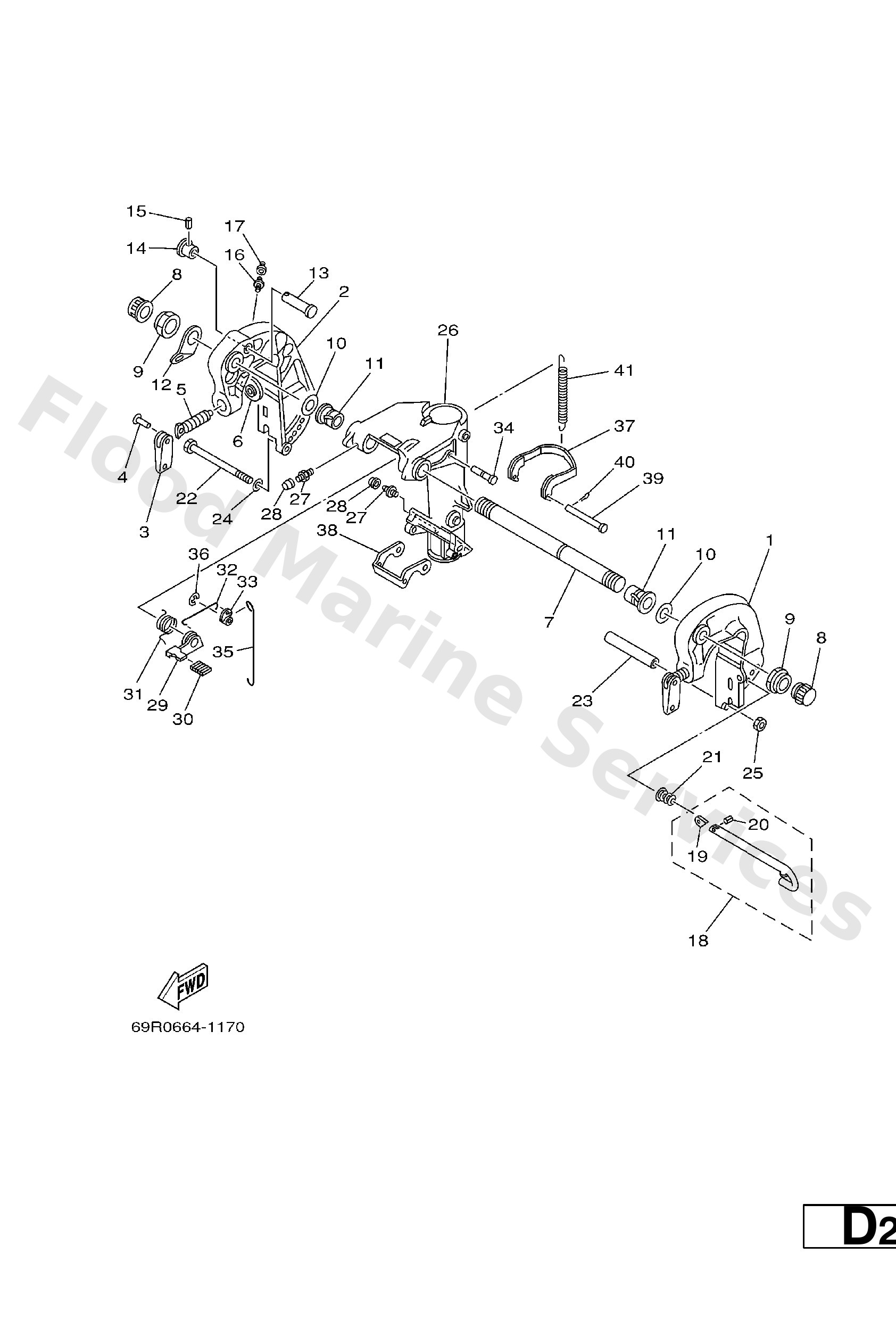

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
689−43111−03−4D
Bracket, clamp 1
Loading…
↗
2
689−43112−02−4D
Bracket, clamp 2
Loading…
↗
3
6E0−43118−01
Handle, transom clamp
Loading…
↗
4
90243−04M01
Pin(6a1)
Loading…
↗
5
90149−14030
Screw, transom clamp
Loading…
↗
6
648−43114−01
Pad, transom clamp
Loading…
↗
7
6J8−43131−01
Bolt, clamp bracket
Loading…
↗
8
6G5−43145−01
Cap, clamp bracket
Loading…
↗
9
90185−22043
Nut, self-locking
Loading…
↗
10
90201−22M03
Washer, plate(64j)
Loading…
↗
11
90386−22M67
Bush(6a9)
Loading…
↗
12
6J8−43113−01
Plate, clamp bracket
Loading…
↗
13
689−43191−00
Shaft, stopper
Loading…
↗
14
689−43192−01
Knob, stopper
Loading…
↗
15
91690−30016
Pin, spring
Loading…
↗
16
93700−06M03
Nipple, grease(6a1)
Loading…
↗
17
663−45119−00
AP
Cap, grease nipple
Loading…
↗
18
689−43160−00
Tilt rod assembly
Loading…
↗
19
689−43165−00
Plate, tilt lock
Loading…
↗
20
91690−30008
Pin. spring(656)
Loading…
↗
21
90502−10M07
Spring, conical(6k3)
Loading…
↗
22
90101−08339
Bolt, hexagon (656)
Loading…
↗
23
90387−08M03
Collar
Loading…
↗
24
92995−08600
Washer, plain (663)
Loading…
↗
25
95380−08600
Nut (661)
Loading…
↗
26
689−43311−03−4D
Bracket, swivel 1
Loading…
↗
29
689−43631−00
Lever, tilt 1
Loading…
↗
30
689−43633−00
Cover, tilt lever
Loading…
↗
31
689−43643−00
Spring, torsion
Loading…
↗
32
689−43616−00
Rod, tilt lock 1
Loading…
↗
33
648−43642−00
Lever,tilt 2
Loading…
↗
34
90249−06M22
Pin(6a9)
Loading…
↗
35
648−43617−00
Rod, tilt lock 2
Loading…
↗
36
99080−05600
Circlip(22k)
Loading…
↗
37
689−43614−01
Plate, tilt lock
Loading…
↗
38
648−43615−00
Plate, tilt lock 2
Loading…
↗
39
90240−05047
Pin with hole(655)
Loading…
↗
40
91490−16010
Pin, cotter
Loading…
↗
41
90506−30M27
Spring, tension(6a4)
Loading…
↗
