25BMH (2006)
BRACKET 1

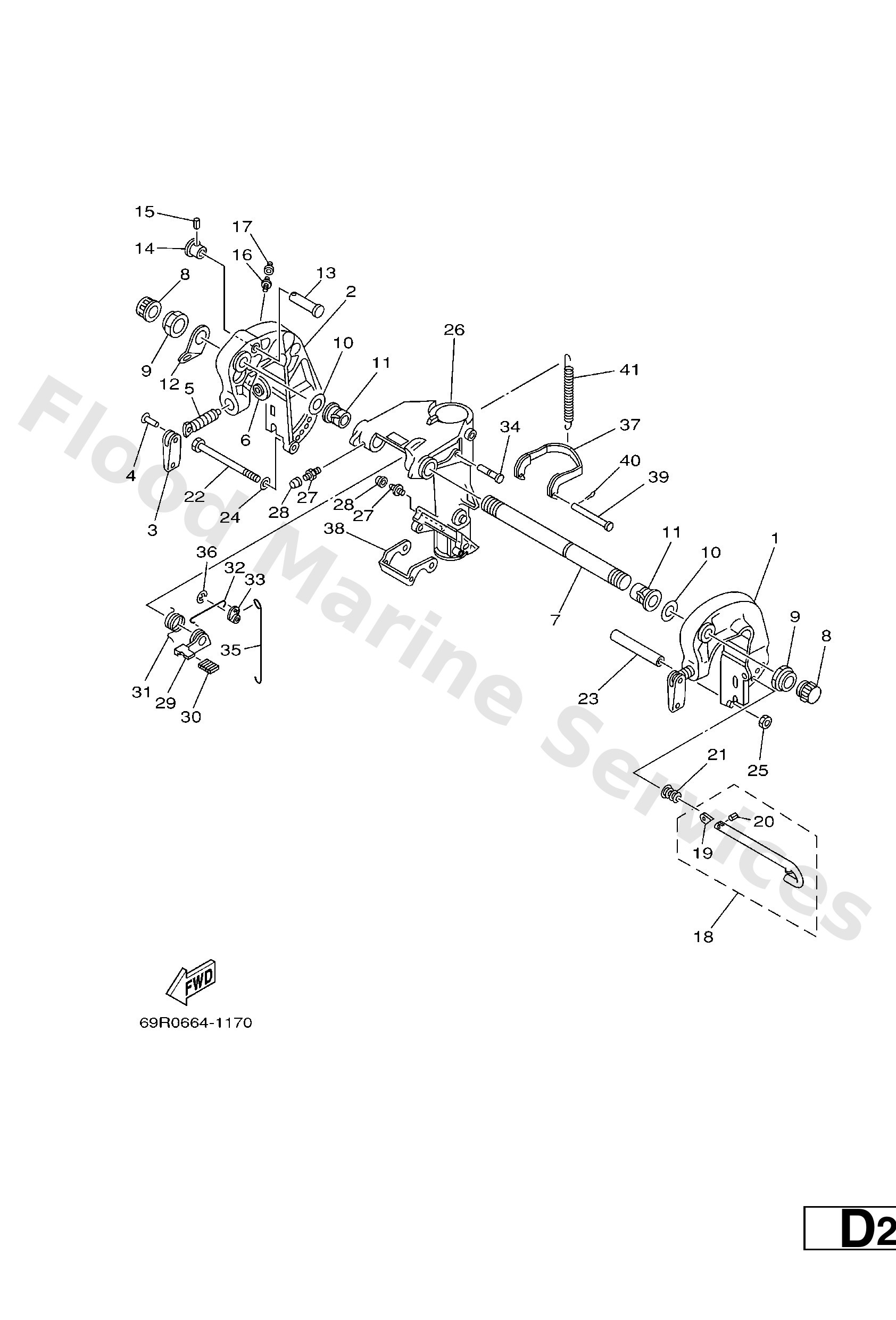

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
68943111034D
Bracket, clamp 1
Loading…
↗
2
68943112024D
Bracket, clamp 2
Loading…
↗
3
6E04311801
Handle, transom clamp
Loading…
↗
4
9024304M01
Pin(6a1)
Loading…
↗
5
9014914030
Screw, transom clamp
Loading…
↗
6
6484311401
Pad, transom clamp
Loading…
↗
7
6J84313101
Bolt, clamp bracket
Loading…
↗
8
6G54314501
Cap, clamp bracket
Loading…
↗
9
9018522043
Nut, self-locking
Loading…
↗
10
9020122M03
Washer, plate(64j)
Loading…
↗
11
9038622M67
Bush(6a9)
Loading…
↗
12
6J84311301
Plate, clamp bracket
Loading…
↗
13
6894319100
Shaft, stopper
Loading…
↗
14
6894319201
Knob, stopper
Loading…
↗
15
9169030016
Pin, spring
Loading…
↗
16
9370006M03
Nipple, grease(6a1)
Loading…
↗
17
6634511900
AP
Cap, grease nipple
Loading…
↗
18
6894316000
Tilt rod assembly
Loading…
↗
19
6894316500
Plate, tilt lock
Loading…
↗
20
9169030008
Pin. spring(656)
Loading…
↗
21
9050210M07
Spring, conical(6k3)
Loading…
↗
22
9010108339
Bolt, hexagon (656)
Loading…
↗
23
9038708M03
Collar
Loading…
↗
24
9299008600
Washer, plain (663)
Loading…
↗
25
9538008600
Nut (661)
Loading…
↗
26
68943311034D
Bracket, swivel 1
Loading…
↗
29
6894363100
Lever, tilt 1
Loading…
↗
30
6894363300
Cover, tilt lever
Loading…
↗
31
6894364300
Spring, torsion
Loading…
↗
32
6894361600
Rod, tilt lock 1
Loading…
↗
33
6484364200
Lever,tilt 2
Loading…
↗
34
9024906M22
Pin(6a9)
Loading…
↗
35
6484361700
Rod, tilt lock 2
Loading…
↗
36
9908005600
Circlip(22k)
Loading…
↗
37
6894361401
Plate, tilt lock
Loading…
↗
38
6484361500
Plate, tilt lock 2
Loading…
↗
39
9024005047
Pin with hole(655)
Loading…
↗
40
9149016010
Pin, cotter
Loading…
↗
41
9050630M27
Spring, tension(6a4)
Loading…
↗
