30DMHO (2009)
BRACKET 1

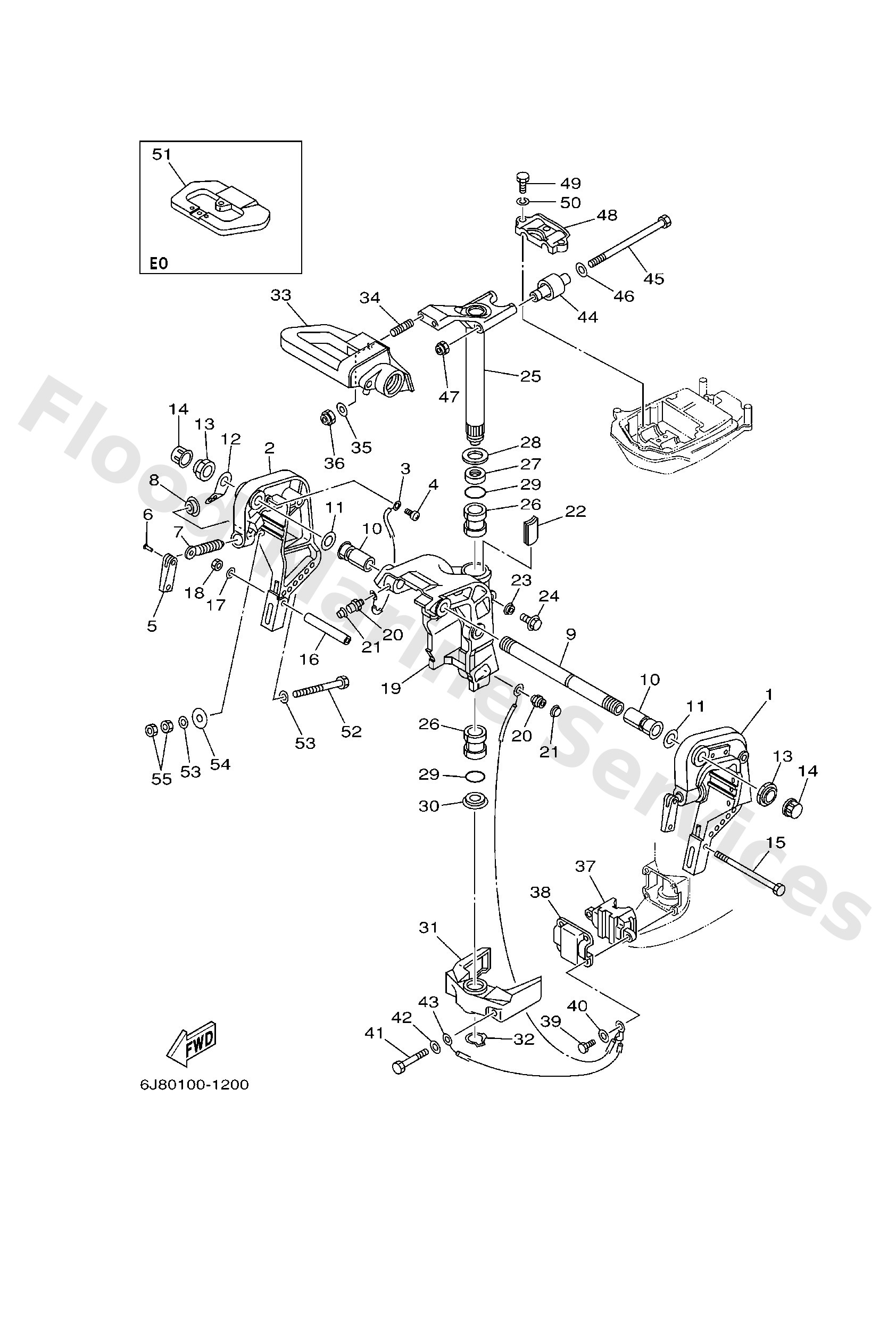

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6H443111054D
Bracket, clamp 1
Loading…
↗
2
6H443112044D
Bracket, clamp 2
Loading…
↗
3
6E58214800
Wire, lead 5
Loading…
↗
4
9788506008
Screw, pan head(6a3)
Loading…
↗
5
6E04311801
Handle, transom clamp
Loading…
↗
6
9024304M01
Pin(6a1)
Loading…
↗
7
9014914M12
Screw(6h4)
Loading…
↗
8
6484311401
Pad, transom clamp
Loading…
↗
9
6J84313101
Bolt, clamp bracket
Loading…
↗
10
9038622M69
Bush(6k9)
Loading…
↗
11
9020122M03
Washer, plate(64j)
Loading…
↗
12
6J84311301
Plate, clamp bracket
Loading…
↗
13
9018522043
Nut, self-locking
Loading…
↗
14
6G54314501
Cap, clamp bracket
Loading…
↗
15
9010108339
Bolt, hexagon (656)
Loading…
↗
16
9038708M03
Collar
Loading…
↗
17
9299008600
Washer, plain (663)
Loading…
↗
18
9538008600
Nut (661)
Loading…
↗
19
6J843311044D
Bracket, swivel
Loading…
↗
20
9370006M03
Nipple, grease(6a1)
Loading…
↗
21
6634511900
AP
Cap, grease nipple
Loading…
↗
22
6J84252800
Plate, friction
Loading…
↗
23
6894337301
Seal, damper
Loading…
↗
24
9010506M18
Bolt (689)
Loading…
↗
25
6J842510034D
Steering bracket assembly
Loading…
↗
26
9038630M77
Bush(6h0)
Loading…
↗
27
9038630M78
Bush(6h0)
Loading…
↗
28
9020130M00
Washer, plate(6h1)
Loading…
↗
29
9321029M94
O-ring(6h1)
Loading…
↗
30
9038630M60
Bush(6j8)
Loading…
↗
31
6H444551024D
Housing, lower mount rubber 1
Loading…
↗
32
9341028M06
Circlip (688)
Loading…
↗
33
6J842121034D
Bracket
Loading…
↗
34
9011610M28
Bolt, stud
Loading…
↗
35
9299510600
Washer, plate
Loading…
↗
36
9018510051
Nut, self-locking
Loading…
↗
37
6H44455700
S(16.7")
Mount, lower front
Loading…
↗
37
6H44455710
L(21.5")
Mount, lower front
Loading…
↗
38
6H44455301
Cover, lower mount
Loading…
↗
39
9709508025
Bolt (62g)
Loading…
↗
40
9299508600
Washer, plain (663)
Loading…
↗
41
9709510060
Bolt, hexagon
Loading…
↗
43
6H48212700
Wire, lead 2
Loading…
↗
44
6H44451400
Mount, upper side
Loading…
↗
45
9010908M26
Bolt(6j8)
Loading…
↗
46
9020109425
Washer, plate (663)
Loading…
↗
47
9018508045
Nut, self-locking
Loading…
↗
48
6J844511004D
Cover, upper mount
Loading…
↗
49
9707508035
Bolt(70w)
Loading…
↗
50
9299508100
Ybs67-8 washer, spring
Loading…
↗
51
6J848511014D
Hook, steering
Loading…
↗
52
9010110M58
Bolt
Loading…
↗
54
9020112426
Washe, plate(663)
Loading…
↗
55
9538010600
Nut(624)
Loading…
↗
