40VEO (2002)
BRACKET 1

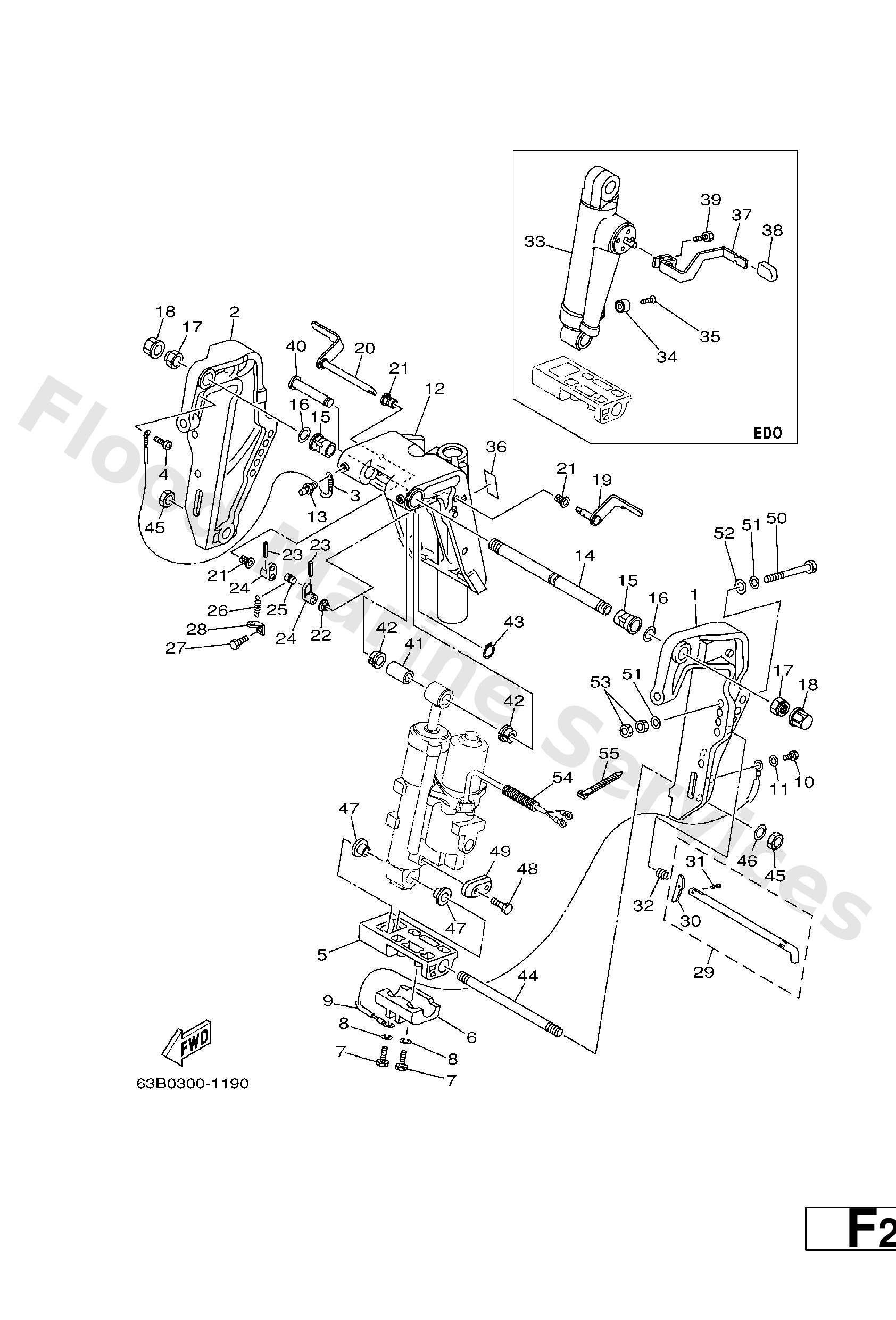

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
63D43111014D
Bracket, clamp 1
Loading…
↗
2
63D43112014D
Bracket, clamp 2
Loading…
↗
3
63D8214800
Wire, lead 5
Loading…
↗
4
9788506008
Screw, pan head(6a3)
Loading…
↗
5
63D43128014D
Spacer, clamp bracket
Loading…
↗
6
63D4525100
Anode
Loading…
↗
7
9709506025
Bolt
Loading…
↗
8
9299506100
Washer(6a1)
Loading…
↗
9
6H18214800
Wire, lead
Loading…
↗
10
9709506010
Bolt
Loading…
↗
11
9299506600
Washer, plain (646)
Loading…
↗
12
63D43311034D
S
Bracket, swivel 1
Loading…
↗
12
63D43311134D
L
Bracket, swivel 1
Loading…
↗
13
9370006M03
Nipple, grease(6a1)
Loading…
↗
14
63D4313101
Bolt, clamp bracket
Loading…
↗
15
9038622M15
Bushing (688)
Loading…
↗
16
9020122M03
Washer, plate(64j)
Loading…
↗
17
9018522M11
Nut, self-locking
Loading…
↗
18
6G54314501
Cap, clamp bracket
Loading…
↗
19
6H54318103
Lever, tilt stop 1
Loading…
↗
20
6H54318503
Lever, tilt stop 2
Loading…
↗
21
9038610M16
Bushing (688)
Loading…
↗
22
9038610025
Bushing (658)
Loading…
↗
23
9169030020
Pin, spring (6h4)
Loading…
↗
24
6G54314800
Collar, distance
Loading…
↗
25
9024906M19
Pin(6e5)
Loading…
↗
26
9050614M24
Spring, tension(6e5)
Loading…
↗
28
6G54314400
Hook, spring
Loading…
↗
29
6884316001
Tilt rod ass'y
Loading…
↗
30
6884316500
Stopper, tilt rod
Loading…
↗
31
9169030012
Pin, spring
Loading…
↗
32
9050216M02
Spring, conical (688)
Loading…
↗
33
62X43170014D
S
-
Loading…
↗
33
62X43170114D
L
Shock absorber sub-assembly
Loading…
↗
34
6634525100
Anode
Loading…
↗
35
9015206M01
Screw, countersunk
Loading…
↗
36
63D4369100
Indicator, tilt
Loading…
↗
37
63D4363100
Lever, tilt
Loading…
↗
38
6824331801
Cover
Loading…
↗
40
6E54312602
Pin, upper shock mount
Loading…
↗
41
9038618M92
Bush(62x)
Loading…
↗
42
9038618M35
Bush (688)
Loading…
↗
43
9341018M02
Circlip (6f2)
Loading…
↗
44
9011618M52
Bolt, stud(62x)
Loading…
↗
45
9017018M10
Nut (6h5)
Loading…
↗
46
9299518600
Washer(64j)
Loading…
↗
47
9038618M44
Bushing (6g5)
Loading…
↗
48
9010106020
Bolt
Loading…
↗
49
65W4525100
Anode
Loading…
↗
50
9010112M65
Bolt
Loading…
↗
51
9299512200
Ybs66-12 washer,plain
Loading…
↗
52
9020112426
Washe, plate(663)
Loading…
↗
53
9538012600
Nut (707)
Loading…
↗
54
9044014M00
Pipe(6h4)
Loading…
↗
55
9046511M10
Clamp
Loading…
↗
