40XMH (2017)
BRACKET 1

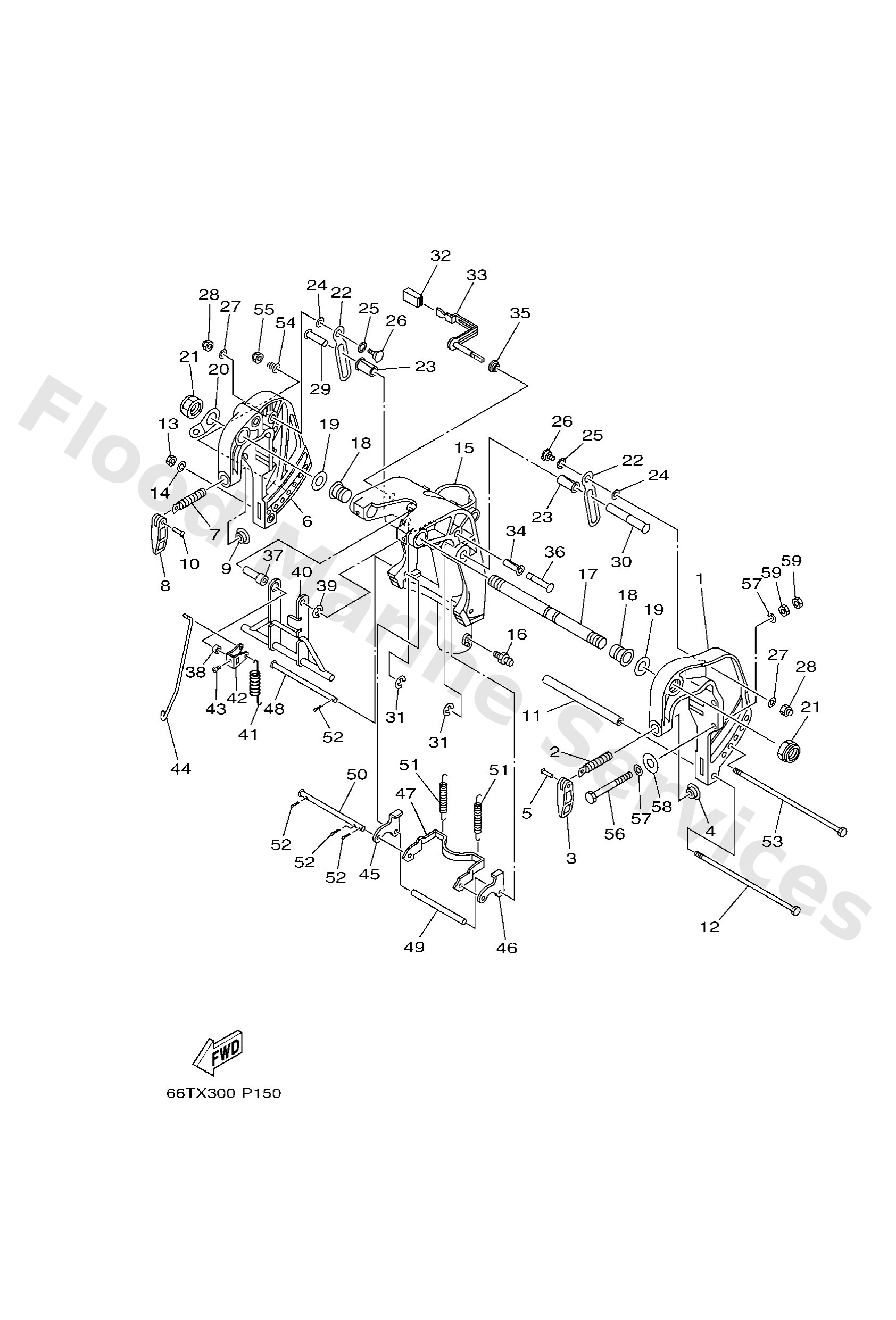

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
66T43111018D
Bracket, clamp 1
Loading…
↗
2
9014914M12
Screw(6h4)
Loading…
↗
3
66343118018D
Handle, transom clamp
Loading…
↗
4
6484311401
Pad, transom clamp
Loading…
↗
5
9024304007
Pin (663)
Loading…
↗
6
66T43112018D
Bracket, clamp 2
Loading…
↗
11
9038710108
Collar
Loading…
↗
12
9010108M76
Bolt
Loading…
↗
13
9538008600
Nut (661)
Loading…
↗
14
9299008100
Ybs67-8 washer, spring
Loading…
↗
15
65W43311118D
L(21.7")
Bracket, swivel 1
Loading…
↗
16
9370006M03
Nipple, grease(6a1)
Loading…
↗
17
63D4313101
Bolt, clamp bracket
Loading…
↗
18
9038622M15
Bushing (688)
Loading…
↗
19
9020122M03
Washer, plate(64j)
Loading…
↗
20
6J84311301
Plate, clamp bracket
Loading…
↗
21
9018522043
Nut, self-locking
Loading…
↗
22
66T4362700
Stopper
Loading…
↗
23
9038612M98
Bush
Loading…
↗
24
9020212031
Washer, plate 6484412600
Loading…
↗
25
9020612M00
Washer, wave (676)
Loading…
↗
26
9010908M90
Bolt
Loading…
↗
27
9020108M07
Washer, plate
Loading…
↗
28
9018508057
Nut, nylon (6j8)
Loading…
↗
29
9024912M34
Pin
Loading…
↗
31
9908010600
Circlip
Loading…
↗
32
6824331801
Cover
Loading…
↗
33
65W4363011
Tilt lever assembly
Loading…
↗
34
9038610M99
Bush
Loading…
↗
35
9038607MA2
Bush
Loading…
↗
36
9024910M31
Pin
Loading…
↗
37
9038707049
Collar
Loading…
↗
38
9038707048
Collar
Loading…
↗
39
9908008600
Circlip
Loading…
↗
40
66T4335011
Receiver assembly
Loading…
↗
41
9050620M37
Spring, tension
Loading…
↗
42
66T4363111
Lever, tilt
Loading…
↗
43
9015705014
Screw, pan head
Loading…
↗
44
65W4361600
Rod, tilt lock
Loading…
↗
45
65W4361401
Plate, tilt lock
Loading…
↗
46
65W4361501
Plate, tilt lock
Loading…
↗
47
65W4361300
Arm, tilt lock
Loading…
↗
48
9024907M32
Pin
Loading…
↗
49
9038707M29
Collar
Loading…
↗
50
9024907M33
Pin
Loading…
↗
51
9050630M00
Spring, tension (676)
Loading…
↗
52
9149020012
Pin, cotter (648)
Loading…
↗
53
9010108M28
Bolt
Loading…
↗
54
9050210M06
Spring, conical(6g1)
Loading…
↗
56
9010110M58
Bolt
Loading…
↗
57
9299510600
Washer, plate
Loading…
↗
58
9020112426
Washe, plate(663)
Loading…
↗
59
9538010600
Nut(624)
Loading…
↗
