50HMHO (2022)
BRACKET 1

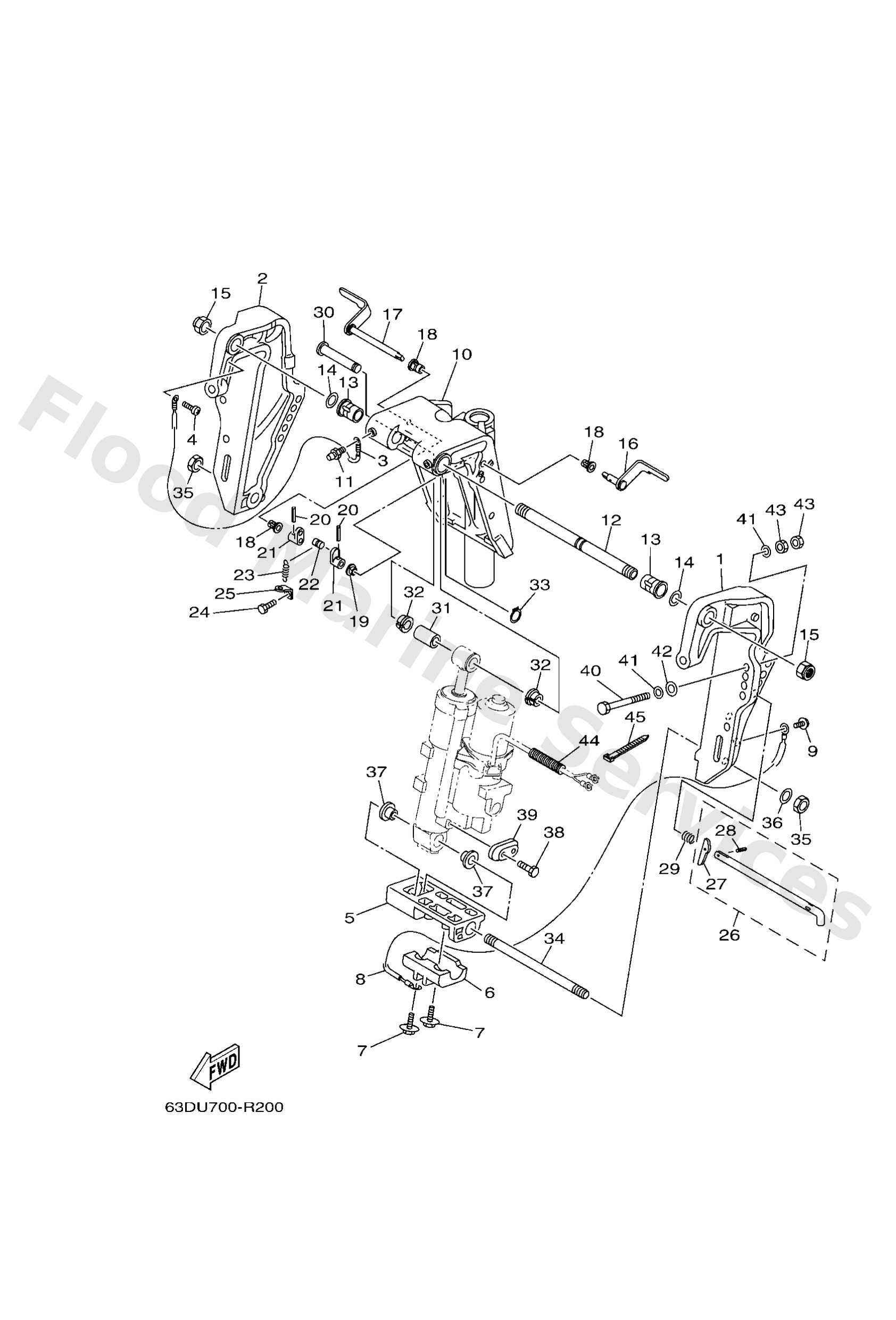

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
63D43111018D
Bracket, clamp 1
Loading…
↗
2
63D43112018D
Bracket, clamp 2
Loading…
↗
3
63D8214800
Wire, lead 5
Loading…
↗
4
9788506008
Screw, pan head(6a3)
Loading…
↗
5
63D43128018D
Spacer, clamp bracket
Loading…
↗
6
63D4525101
Anode
Loading…
↗
7
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
8
6H18214800
Wire, lead
Loading…
↗
9
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
10
63D43311138D
L(21.0")
Bracket, swivel 1
Loading…
↗
11
9370006M03
Nipple, grease(6a1)
Loading…
↗
12
63D4313101
Bolt, clamp bracket
Loading…
↗
13
9038622M15
Bushing (688)
Loading…
↗
14
9020122M03
Washer, plate(64j)
Loading…
↗
15
9018522043
Nut, self-locking
Loading…
↗
16
6H54318103
Lever, tilt stop 1
Loading…
↗
17
6H54318503
Lever, tilt stop 2
Loading…
↗
18
9038610M16
Bushing (688)
Loading…
↗
19
9038610025
Bushing (658)
Loading…
↗
20
9169030020
Pin, spring (6h4)
Loading…
↗
21
6G54314800
Collar, distance
Loading…
↗
22
9024906M19
Pin(6e5)
Loading…
↗
23
9050614M24
Spring, tension(6e5)
Loading…
↗
24
97D9506010
Bolt, hexagon deep recess
Loading…
↗
25
6G54314400
Hook, spring
Loading…
↗
26
6884316001
Tilt rod ass'y
Loading…
↗
27
6884316500
Stopper, tilt rod
Loading…
↗
28
9169030012
Pin, spring
Loading…
↗
29
9050216M02
Spring, conical (688)
Loading…
↗
30
6E54312602
Pin, upper shock mount
Loading…
↗
31
9038618M92
Bush(62x)
Loading…
↗
32
9038618M35
Bush (688)
Loading…
↗
33
9341018M05
Circlip (6f2)
Loading…
↗
34
9011618M52
Bolt, stud(62x)
Loading…
↗
35
9017018M10
Nut (6h5)
Loading…
↗
36
9299518600
Washer(64j)
Loading…
↗
37
9038618M44
Bushing (6g5)
Loading…
↗
38
9010106020
Bolt
Loading…
↗
39
65W4525100
Anode
Loading…
↗
40
9010112063
Bolt
Loading…
↗
41
9020112062
Washer, plate
Loading…
↗
42
9020112426
Washe, plate(663)
Loading…
↗
43
9538012600
Nut (707)
Loading…
↗
44
9044014M00
Pipe(6h4)
Loading…
↗
45
9046511M10
Clamp
Loading…
↗
