60FETO (2003)
BRACKET 1

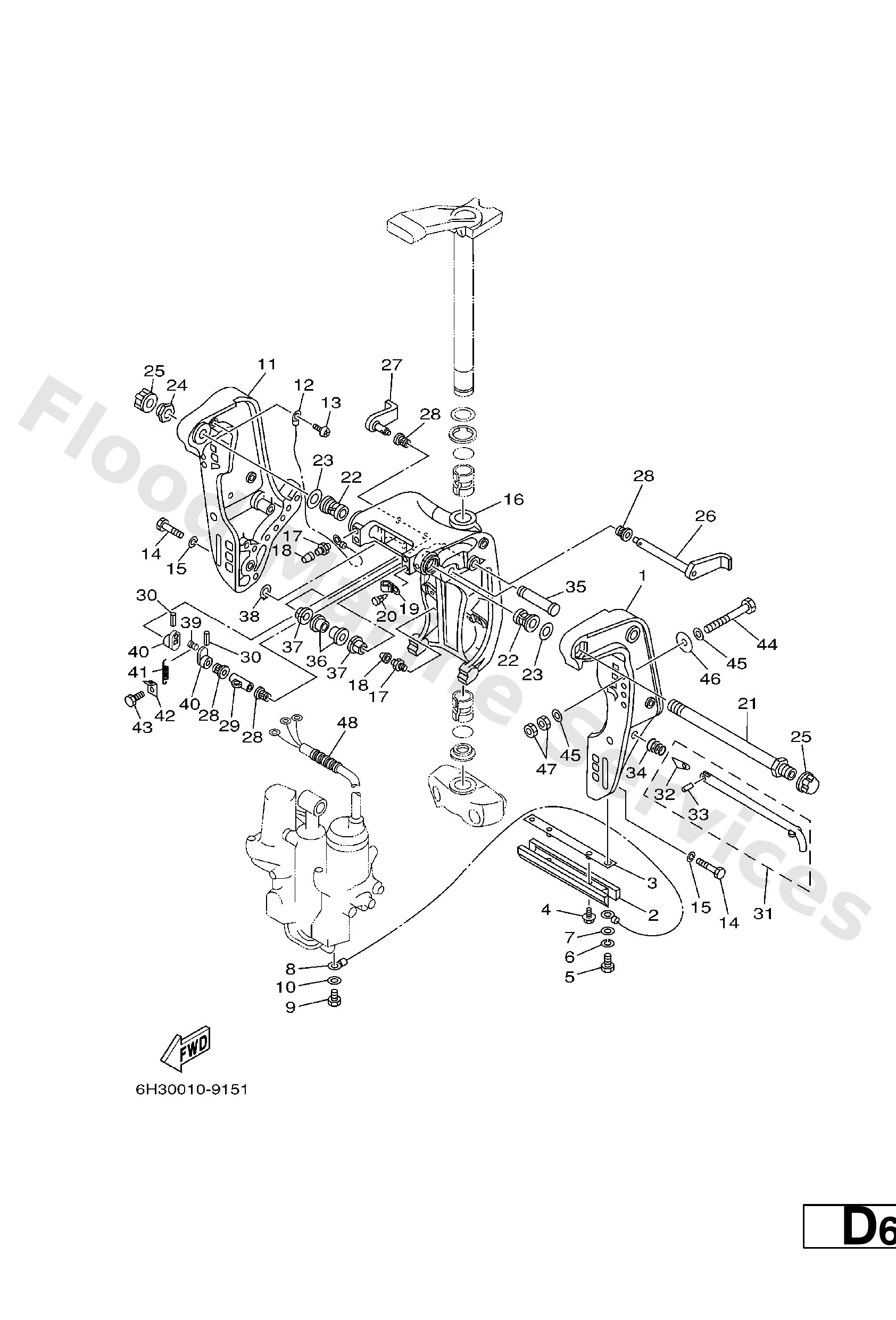

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6H1−43111−01−4D
Bracket, clamp 1
Loading…
↗
2
6H1−45251−03
Anode
Loading…
↗
3
6H1−44526−00
Plate 2
Loading…
↗
4
90119−06M29
Bolt, with washer
Loading…
↗
5
97095−06016
Bolt, hexagon deep recess
Loading…
↗
6
92995−06100
Washer(6a1)
Loading…
↗
7
92995−06600
Washer, plain (646)
Loading…
↗
8
6H1−82148−00
Wire, lead
Loading…
↗
9
97095−06010
Bolt
Loading…
↗
11
6H1−43112−00−4D
Bracket, clamp 2
Loading…
↗
12
6E5−82148−00
Wire, lead 5
Loading…
↗
13
97880−06012
Screw, pan head(62j)
Loading…
↗
14
97095−10045
Bolt(64d)
Loading…
↗
15
92995−10100
Ybs67-10 washer, spring
Loading…
↗
16
6H1−43311−01−4D
Bracket, swivel 1
Loading…
↗
17
93700−06M03
Nipple, grease(6a1)
Loading…
↗
18
663−45119−00
AP
Cap, grease nipple
Loading…
↗
19
90464−11M18
Clamp(6e5)
Loading…
↗
20
90338−05M03
Plug (6h1)
Loading…
↗
21
688−43131−03
Bolt, clamp bracket
Loading…
↗
22
90386−22M15
Bushing (688)
Loading…
↗
23
90201−22M67
Washer, plate (688)
Loading…
↗
24
90185−22043
Nut, self-locking
Loading…
↗
25
6G5−43145−01
Cap, clamp bracket
Loading…
↗
26
6H1−43181−01
Lever, tilt stop 1
Loading…
↗
27
6H1−43185−01
Lever, tilt stop 2
Loading…
↗
28
90386−10M16
Bushing (688)
Loading…
↗
29
90387−10M02
Collar(6e5)
Loading…
↗
30
91690−30020
Pin, spring (6h4)
Loading…
↗
31
688−43160−01
Tilt rod ass'y
Loading…
↗
32
688−43165−00
Stopper, tilt rod
Loading…
↗
33
91690−30012
Pin, spring
Loading…
↗
34
90502−16M02
Spring, conical (688)
Loading…
↗
35
6E5−43126−02
Pin, upper shock mount
Loading…
↗
36
90386−18M63
Bush(6e5)
Loading…
↗
37
90386−18M35
Bush (688)
Loading…
↗
38
93410−18M02
Circlip (6f2)
Loading…
↗
39
90249−06M19
Pin(6e5)
Loading…
↗
40
6G5−43148−00
Collar, distance
Loading…
↗
41
90506−14M24
Spring, tension(6e5)
Loading…
↗
42
6G5−43144−00
Hook, spring
Loading…
↗
44
90101−12M65
Bolt
Loading…
↗
45
92995−12200
Ybs66-12 washer,plain
Loading…
↗
46
90201−12426
Washe, plate(663)
Loading…
↗
47
95380−12600
Nut (707)
Loading…
↗
48
90440−14M00
Pipe(6h4)
Loading…
↗
