75AED (2003)
BRACKET 1

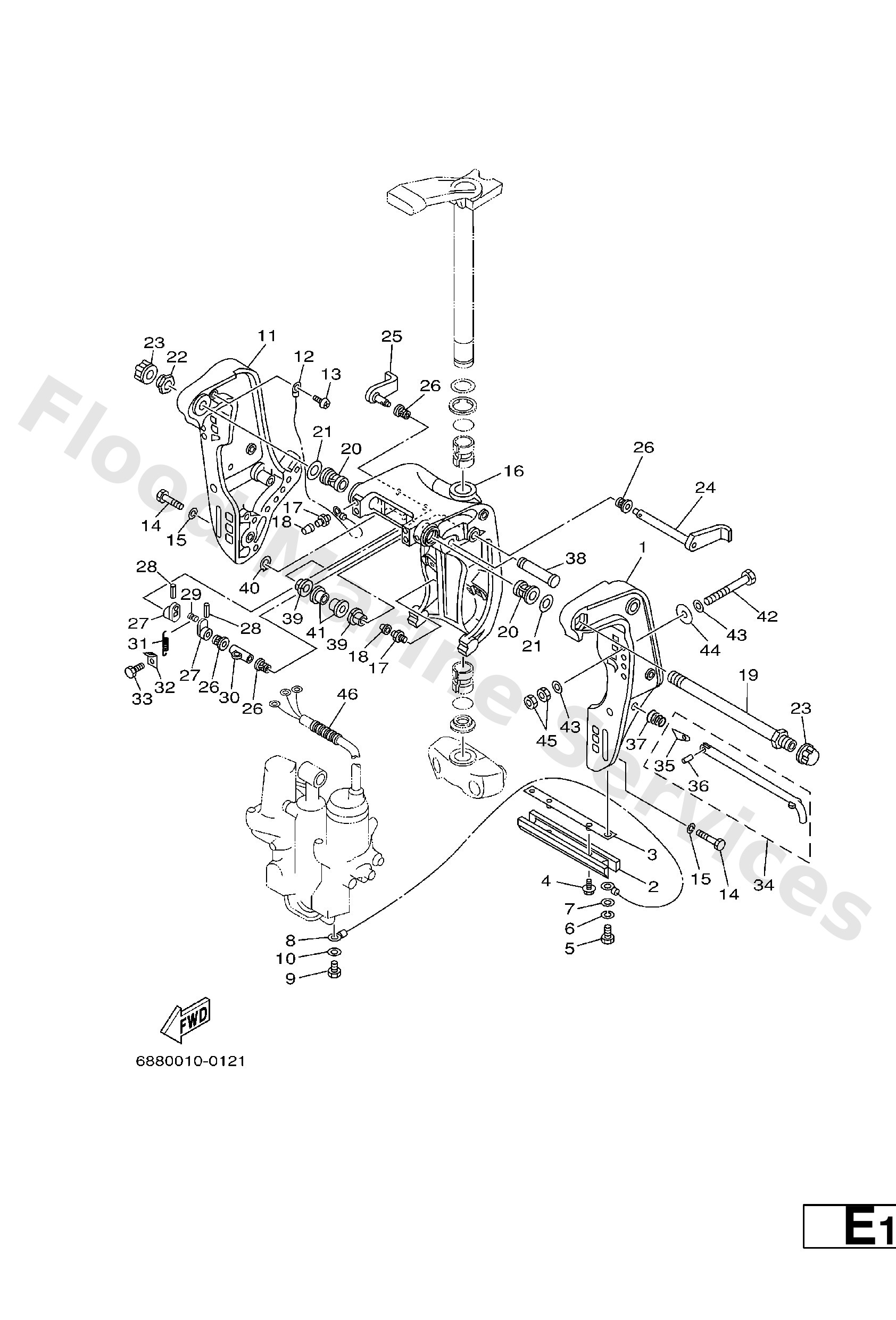

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6H1--43111--01--4D
Bracket, clamp 1
Loading…
↗
2
6H1--45251--03
Anode
Loading…
↗
3
6H1--44526--00
Plate 2
Loading…
↗
4
90119--06M29
Bolt, with washer
Loading…
↗
5
97095--06016
Bolt, hexagon deep recess
Loading…
↗
6
92995--06100
Washer(6a1)
Loading…
↗
7
92995--06600
Washer, plain (646)
Loading…
↗
8
6H1--82148--00
Wire, lead
Loading…
↗
9
97095--06010
Bolt
Loading…
↗
11
6H1--43112--00--4D
Bracket, clamp 2
Loading…
↗
12
6E5--82148--00
Wire, lead 5
Loading…
↗
13
97880--06012
Screw, pan head(62j)
Loading…
↗
14
97095--10045
Bolt(64d)
Loading…
↗
15
92995--10100
Ybs67-10 washer, spring
Loading…
↗
16
6H143311014D
Bracket, swivel 1
Loading…
↗
17
93700--06M03
Nipple, grease(6a1)
Loading…
↗
18
663--45119--00
Cap, grease nipple
Loading…
↗
19
688--43131--03
Bolt, clamp bracket
Loading…
↗
20
90386--22M15
Bushing (688)
Loading…
↗
21
90201--22M67
Washer, plate (688)
Loading…
↗
22
90185--22043
Nut, self-locking
Loading…
↗
23
6G5--43145--01
Cap, clamp bracket
Loading…
↗
24
6H1--43181--01
Lever, tilt stop 1
Loading…
↗
25
6H1--43185--01
Lever, tilt stop 2
Loading…
↗
26
90386--10M16
Bushing (688)
Loading…
↗
27
6G5--43148--00
Collar, distance
Loading…
↗
28
91690--30020
Pin, spring (6h4)
Loading…
↗
29
90249--06M19
Pin(6e5)
Loading…
↗
30
90387--10M02
Collar(6e5)
Loading…
↗
31
90506--14M24
Spring, tension(6e5)
Loading…
↗
32
6G5--43144--00
Hook, spring
Loading…
↗
34
688--43160--01
Tilt rod ass'y
Loading…
↗
35
688--43165--00
Stopper, tilt rod
Loading…
↗
36
91690--30012
Pin, spring
Loading…
↗
37
90502--16M02
Spring, conical (688)
Loading…
↗
38
6E5--43126--02
Pin, upper shock mount
Loading…
↗
39
90386--18M35
Bush (688)
Loading…
↗
40
93410--18M02
Circlip (6f2)
Loading…
↗
41
90386--18M63
Bush(6e5)
Loading…
↗
42
90101--12M65
Bolt
Loading…
↗
43
92995--12200
Ybs66-12 washer,plain
Loading…
↗
44
90201--12426
Washe, plate(663)
Loading…
↗
45
95380--12600
Nut (707)
Loading…
↗
46
90440--14M00
Pipe(6h4)
Loading…
↗
