90AETO (2011)
BRACKET 1

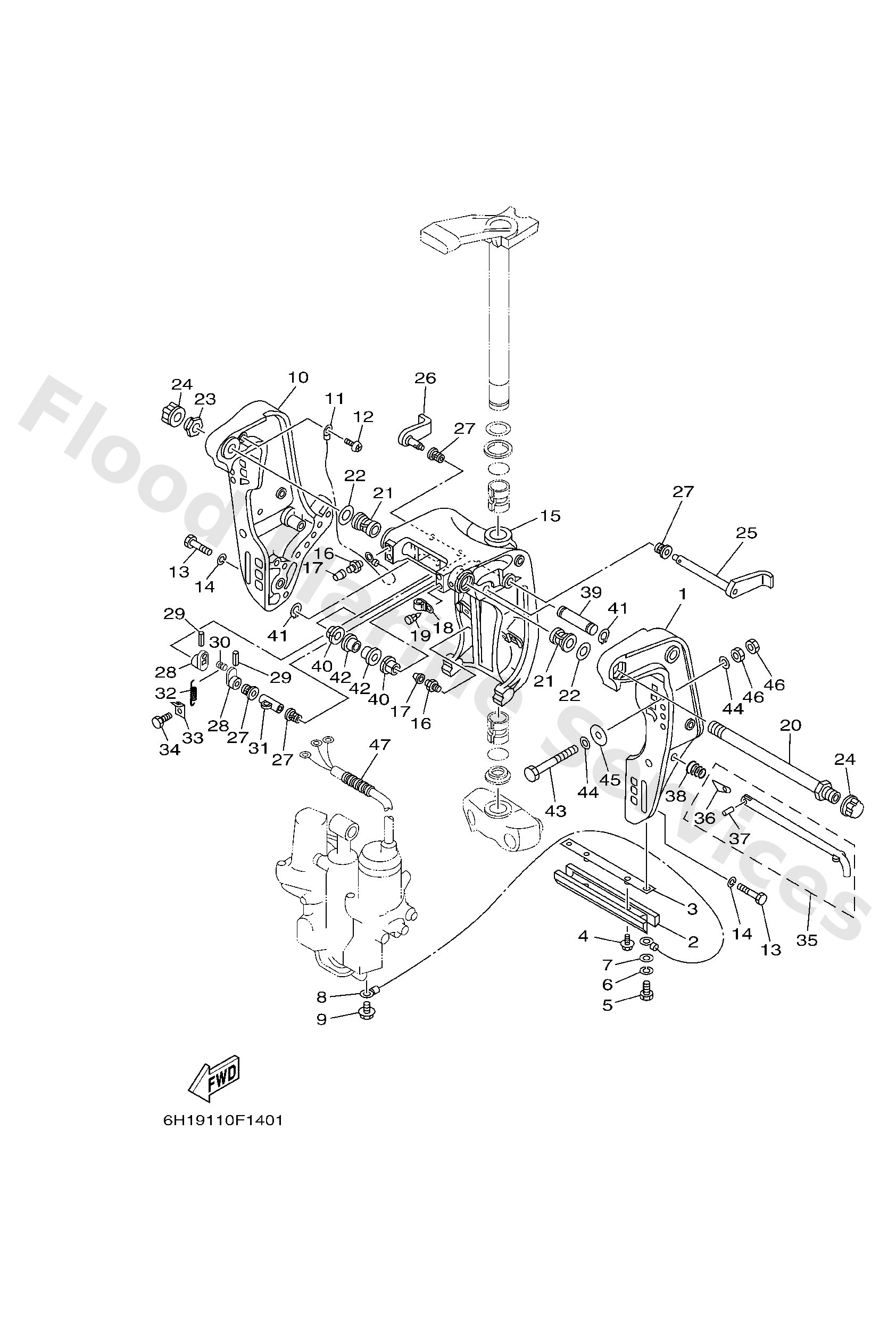

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6H143111018D
Bracket, clamp 1
Loading…
↗
2
6H14525103
Anode
Loading…
↗
3
6H14452600
Plate 2
Loading…
↗
4
9011906M29
Bolt, with washer
Loading…
↗
5
9709506016
Bolt, hexagon deep recess
Loading…
↗
6
9299506100
Washer(6a1)
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
6H18214800
Wire, lead
Loading…
↗
9
9759506510
Bolt, hexagon w/w deep recess
Loading…
↗
10
6H143112008D
Bracket, clamp 2
Loading…
↗
11
6E58214800
Wire, lead 5
Loading…
↗
12
9788006012
Screw, pan head(62j)
Loading…
↗
13
9709510045
Bolt(64d)
Loading…
↗
14
9299510100
Ybs67-10 washer, spring
Loading…
↗
15
6H143311028D
Bracket, swivel 1
Loading…
↗
16
9370006M03
Nipple, grease(6a1)
Loading…
↗
17
6634511900
Cap, grease nipple
Loading…
↗
18
9046411M18
Clamp(6e5)
Loading…
↗
19
9033805M03
Plug (6h1)
Loading…
↗
20
6884313103
Bolt, clamp bracket
Loading…
↗
21
9038622M15
Bushing (688)
Loading…
↗
22
9020122M67
Washer, plate (688)
Loading…
↗
23
9018522M11
Nut, self-locking
Loading…
↗
24
6G54314501
Cap, clamp bracket
Loading…
↗
25
6H14318101
Lever, tilt stop 1
Loading…
↗
26
6H14318501
Lever, tilt stop 2
Loading…
↗
27
9038610M16
Bushing (688)
Loading…
↗
28
6G54314800
Collar, distance
Loading…
↗
29
9169030020
Pin, spring (6h4)
Loading…
↗
30
9024906M19
Pin(6e5)
Loading…
↗
31
9038710M02
Collar(6e5)
Loading…
↗
32
9050614M24
Spring, tension(6e5)
Loading…
↗
33
6G54314400
Hook, spring
Loading…
↗
34
9709506010
Bolt
Loading…
↗
35
6884316001
Tilt rod ass'y
Loading…
↗
36
6884316500
Stopper, tilt rod
Loading…
↗
37
9169030012
Pin, spring
Loading…
↗
38
9050216M02
Spring, conical (688)
Loading…
↗
39
6E54312610
Go to P/N)PE0-OM-110024
Pin, upper shock mount
Loading…
↗
40
9038618M35
Bush (688)
Loading…
↗
41
9341018M02
Go to P/N)PE0-OM-110024
Circlip (6f2)
Loading…
↗
42
9038618M63
Bush(6e5)
Loading…
↗
43
9010112M65
Bolt
Loading…
↗
44
9299512200
Ybs66-12 washer,plain
Loading…
↗
45
9020112426
Washe, plate(663)
Loading…
↗
46
9538012600
Nut (707)
Loading…
↗
47
9044014M00
Pipe(6h4)
Loading…
↗
