E15DMH (2004)
BRACKET 1

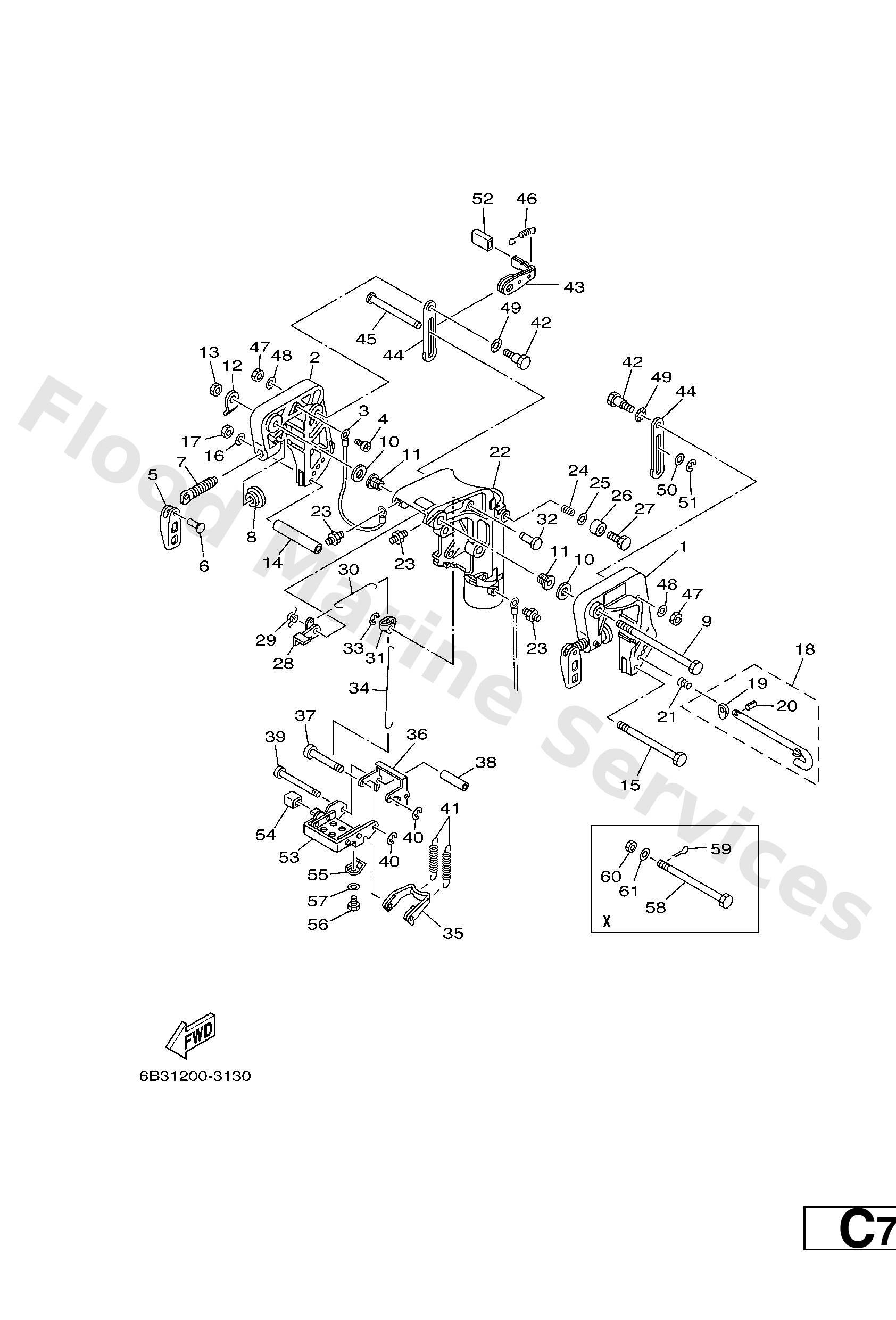

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
68243111054D
Bracket, clamp 1
Loading…
↗
2
68243112054D
Bracket, clamp 2
Loading…
↗
3
6E58214800
Wire, lead 5
Loading…
↗
4
9788506008
Screw, pan head(6a3)
Loading…
↗
5
66343118014D
Handle, transom clamp
Loading…
↗
6
9024304007
Pin (663)
Loading…
↗
7
6E74311600
Screw, transom clamp
Loading…
↗
8
6484311401
Pad, transom clamp
Loading…
↗
9
9010112013
Bolt
Loading…
↗
10
9020112018
Washer, plate
Loading…
↗
11
9038112001
Bush, solid
Loading…
↗
12
6B44311300
Plate, clamp bracket
Loading…
↗
13
9578012300
Nut, nylon (6f2)
Loading…
↗
14
9038706M13
Collar(6h6)
Loading…
↗
15
9010106M29
Bolt, hexagon (682)
Loading…
↗
16
9299006600
Washer, plain (646)
Loading…
↗
17
9538006700
Nut
Loading…
↗
18
6894316000
S/L
Tilt rod assembly
Loading…
↗
19
6894316500
Plate, tilt lock
Loading…
↗
20
9169030008
Pin. spring(656)
Loading…
↗
21
9050210M07
S/L
Spring, conical(6k3)
Loading…
↗
22
68243311064D
Bracket, swivel 1
Loading…
↗
23
9370006M03
Nipple, grease(6a1)
Loading…
↗
24
9050118M00
Spring, compression (676)
Loading…
↗
25
9299508600
Washer, plain (663)
Loading…
↗
26
6764337300
Damper, seal
Loading…
↗
27
9707508025
Bolt, hexagon deep recess
Loading…
↗
28
6B44363100
Lever, tilt
Loading…
↗
29
9050814018
Spring, torsion
Loading…
↗
30
6824361600
Rod, tilt lock 1
Loading…
↗
31
6824364101
Lever, tilt
Loading…
↗
32
9024906M23
Pin(6e7)
Loading…
↗
33
9908005600
Circlip(22k)
Loading…
↗
34
6824361700
Rod, tilt lock 2
Loading…
↗
35
6824361401
Plate, tilt lock
Loading…
↗
36
6824361502
Plate, tilt lock
Loading…
↗
37
6824361101
Shaft, tilt lock
Loading…
↗
38
9038706M20
Collar(6m7)
Loading…
↗
39
6824365901
Shaft, reverse lock
Loading…
↗
41
9050626M01
S/L
Spring, tension (682)
Loading…
↗
41
9050626M07
X
Spring, tension (683)
Loading…
↗
42
9010906M05
Bolt (682)
Loading…
↗
43
6B44318100
Lever, tilt stop 1
Loading…
↗
44
6B44362700
Stopper
Loading…
↗
45
9024910003
Pin
Loading…
↗
46
9050612002
Spring, tension
Loading…
↗
47
9568006100
U-nut (6a5)
Loading…
↗
49
9020610M24
Washer, wave
Loading…
↗
50
9020210M56
Washer, plate
Loading…
↗
51
9908009600
Circlip(j51)
Loading…
↗
52
6824331801
Cover
Loading…
↗
53
6B44368100
Lever, shallow water drive 1
Loading…
↗
55
6824364300
Spring
Loading…
↗
56
9709506008
Bolt (fj1)
Loading…
↗
58
9010208M01
X
Bolt (682)
Loading…
↗
59
9149020015
X
Pin, cotter (648)
Loading…
↗
60
9017108M00
X
Nut, castle (682)
Loading…
↗
61
9299008600
X
Washer, plain (663)
Loading…
↗
