E40XMH (2002)
BRACKET 1

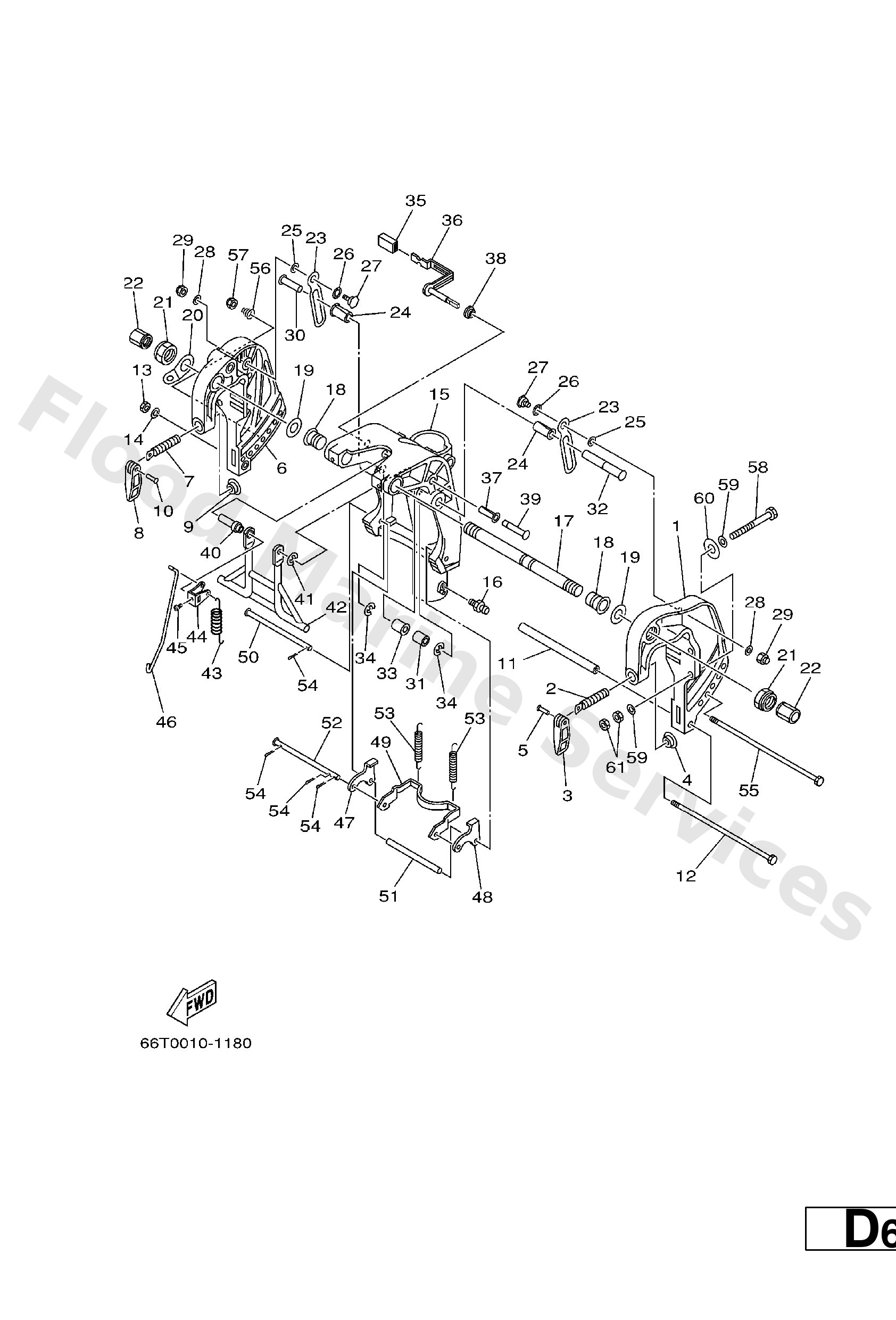

Diagram: BRACKET 1
Parts List
Reference
Description
Price
2
90149--14M12
Screw(6h4)
Loading…
↗
4
648--43114--01
Pad, transom clamp
Loading…
↗
5
90243--04007
Pin (663)
Loading…
↗
11
90387--08M29
Collar
Loading…
↗
12
90101--08M76
Bolt
Loading…
↗
13
95380--08600
Nut (661)
Loading…
↗
14
92990--08100
Ybs67-8 washer, spring
Loading…
↗
16
93700--06M03
Nipple, grease(6a1)
Loading…
↗
17
63D--43131--01
Bolt, clamp bracket
Loading…
↗
18
90386--22M15
Bushing (688)
Loading…
↗
19
90201--22M03
Washer, plate(64j)
Loading…
↗
20
6J8--43113--01
Plate, clamp bracket
Loading…
↗
21
90185--22043
Nut, self-locking
Loading…
↗
22
6G5--43145--01
Cap, clamp bracket
Loading…
↗
23
66T--43627--00
Stopper
Loading…
↗
24
90386--12M98
Bush
Loading…
↗
25
90202--12031
Washer, plate 6484412600
Loading…
↗
26
90206--12M00
Washer, wave (676)
Loading…
↗
27
90109--08M90
Bolt
Loading…
↗
28
90201--08M07
Washer, plate
Loading…
↗
29
90185--08057
Nut, nylon (6j8)
Loading…
↗
30
90249--12M34
Pin
Loading…
↗
31
90387--12M04
Collar
Loading…
↗
32
90249--12M39
Pin
Loading…
↗
33
90386--12MA0
Bush, solid
Loading…
↗
34
93430--10M00
Circlip
Loading…
↗
35
682--43318--01
Cover
Loading…
↗
36
65W--43630--11
Tilt lever assembly
Loading…
↗
37
90386--10M99
Bush
Loading…
↗
38
90386--07MA2
Bush
Loading…
↗
39
90249--10M31
Pin
Loading…
↗
40
90387--07M05
Collar
Loading…
↗
41
99080--08600
Circlip
Loading…
↗
42
66T--43350--02
Receiver assembly
Loading…
↗
43
90506--20M37
Spring, tension
Loading…
↗
44
66T--43631--11
Lever, tilt
Loading…
↗
45
90157--05014
Screw, pan head
Loading…
↗
46
65W--43616--00
Rod, tilt lock
Loading…
↗
47
65W--43614--01
Plate, tilt lock
Loading…
↗
48
65W--43615--01
Plate, tilt lock
Loading…
↗
49
65W--43613--00
Arm, tilt lock
Loading…
↗
50
90249--07M32
Pin
Loading…
↗
51
90387--07M29
Collar
Loading…
↗
52
90249--07M33
Pin
Loading…
↗
53
90506--30M00
Spring, tension (676)
Loading…
↗
54
91490--20015
Pin, cotter (648)
Loading…
↗
55
90101--08M28
Bolt
Loading…
↗
56
90502--10M06
Spring, conical(6g1)
Loading…
↗
58
90101--10M58
Bolt
Loading…
↗
59
92995--10600
Washer, plate
Loading…
↗
60
90201--12426
Washe, plate(663)
Loading…
↗
61
95380--10600
Nut(624)
Loading…
↗
