E60HMHD (2003)
BRACKET 1

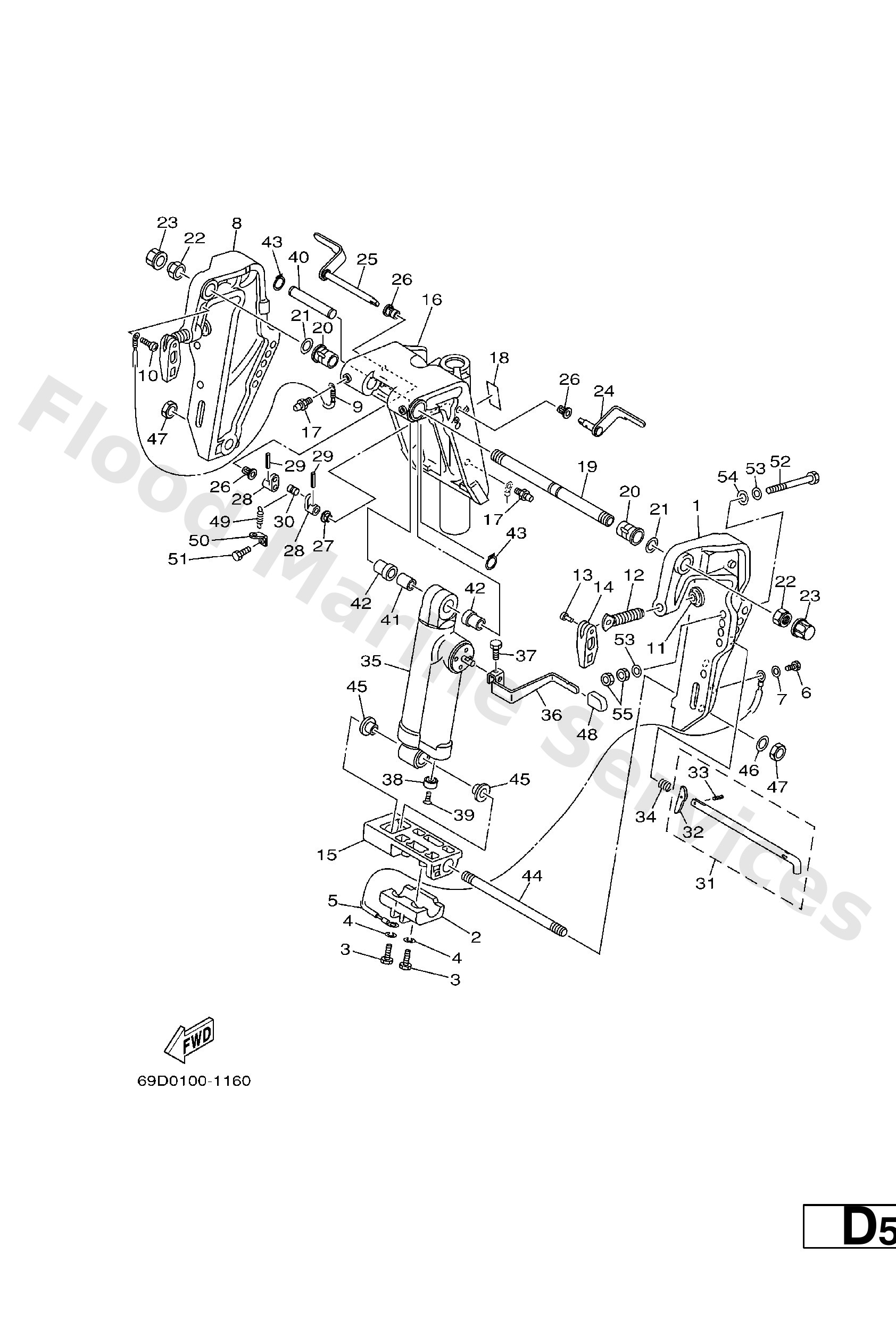

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
63D−43111−01−4D
Bracket, clamp 1
Loading…
↗
2
63D−45251−00
Anode
Loading…
↗
3
97095−06025
Bolt
Loading…
↗
4
92995−06100
Washer(6a1)
Loading…
↗
5
6H1−82148−00
Wire, lead
Loading…
↗
6
97095−06010
Bolt
Loading…
↗
7
92995−06600
Washer, plain (646)
Loading…
↗
8
63D−43112−01−4D
Bracket, clamp 2
Loading…
↗
9
63D−82148−00
Wire, lead 5
Loading…
↗
10
97885−06008
Screw, pan head(6a3)
Loading…
↗
11
648−43114−01
Pad, transom clamp
Loading…
↗
12
663−43116−01
Screw, transom
Loading…
↗
13
90243−04007
Pin (663)
Loading…
↗
14
663−43118−01−4D
Handle, transom clamp
Loading…
↗
15
63D−43128−01−4D
Spacer, clamp bracket
Loading…
↗
16
69D−43311−11−4D
Bracket, swivel 1
Loading…
↗
17
93700−06M03
Nipple, grease(6a1)
Loading…
↗
18
63D−43691−00
Indicator, tilt
Loading…
↗
19
63D−43131−01
Bolt, clamp bracket
Loading…
↗
20
90386−22M15
Bushing (688)
Loading…
↗
21
90201−22M03
Washer, plate(64j)
Loading…
↗
22
90185−22M11
Nut, self-locking
Loading…
↗
23
6G5−43145−01
Cap, clamp bracket
Loading…
↗
24
6H5−43181−03
Lever, tilt stop 1
Loading…
↗
25
6H5−43185−03
Lever, tilt stop 2
Loading…
↗
26
90386−10M16
Bushing (688)
Loading…
↗
27
90386−10025
Bushing (658)
Loading…
↗
28
6G5−43148−00
Collar, distance
Loading…
↗
29
91690−30020
Pin, spring (6h4)
Loading…
↗
30
90249−06M19
Pin(6e5)
Loading…
↗
31
688−43160−01
Tilt rod ass'y
Loading…
↗
32
688−43165−00
Stopper, tilt rod
Loading…
↗
33
91690−30012
Pin, spring
Loading…
↗
34
90502−16M02
Spring, conical (688)
Loading…
↗
35
69D−43170−10−4D
Shock absorber sub-assembly
Loading…
↗
36
69D−43631−00
Lever, tilt
Loading…
↗
38
663−45251−00
Anode
Loading…
↗
39
98680−06525
Screw flat head
Loading…
↗
40
69D−43126−00
Pin, upper shock mount
Loading…
↗
41
90387−16003
Collar
Loading…
↗
42
90387−16004
Collar
Loading…
↗
43
93410−16006
Circlip
Loading…
↗
44
90116−18M52
Bolt, stud(62x)
Loading…
↗
45
90386−18M44
Bushing (6g5)
Loading…
↗
46
92995−18600
Washer(64j)
Loading…
↗
47
90170−18M10
Nut (6h5)
Loading…
↗
48
682−43318−01
Cover
Loading…
↗
49
90506−14M24
Spring, tension(6e5)
Loading…
↗
50
6G5−43144−00
Hook, spring
Loading…
↗
52
90101−12M65
Bolt
Loading…
↗
53
92995−12200
Ybs66-12 washer,plain
Loading…
↗
54
90201−12426
Washe, plate(663)
Loading…
↗
55
95380−12600
Nut (707)
Loading…
↗
