E60HMHD (2005)
BRACKET 1

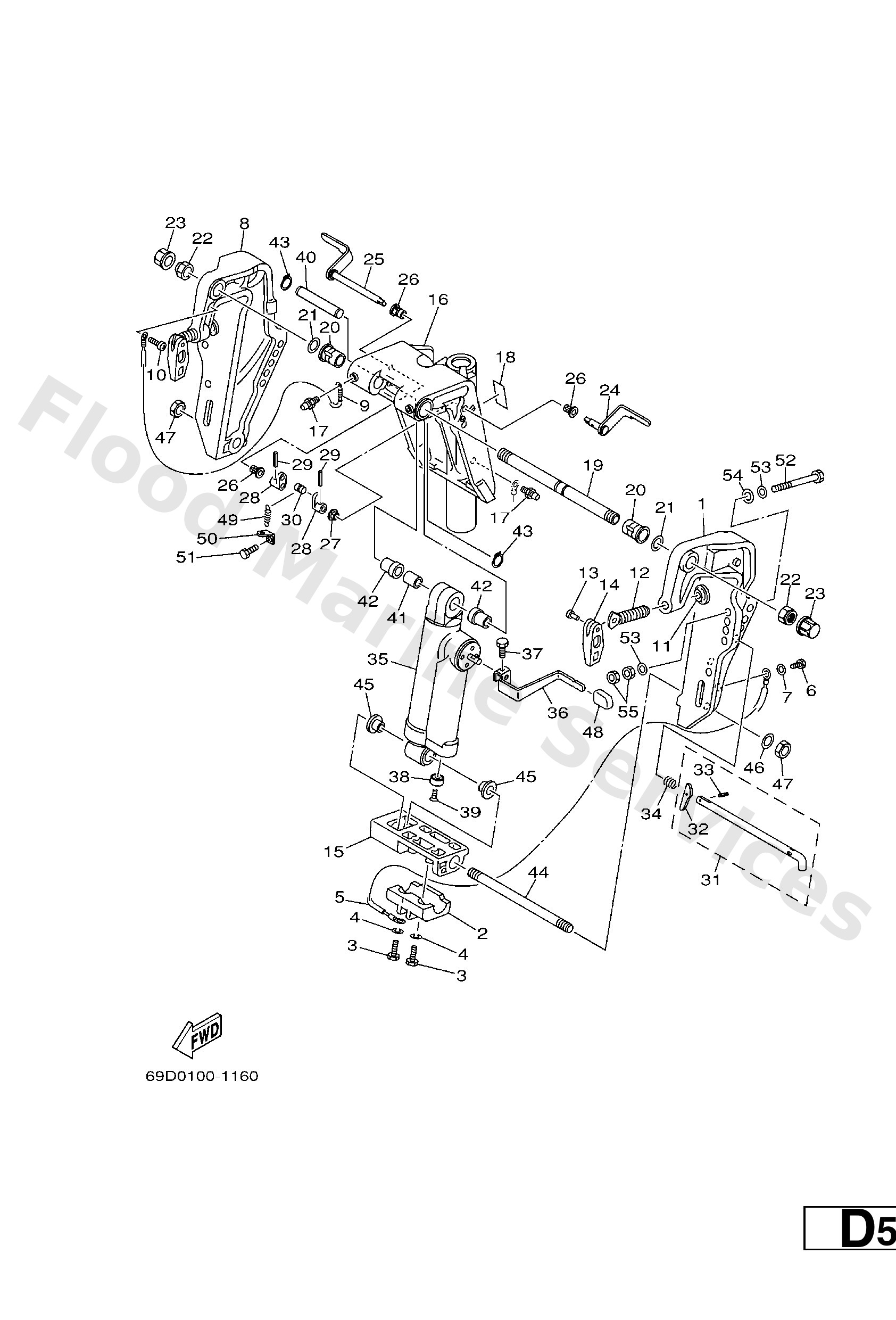

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
63D43111014D
Bracket, clamp 1
Loading…
↗
2
63D4525100
Anode
Loading…
↗
3
9709506025
Bolt
Loading…
↗
4
9299506100
Washer(6a1)
Loading…
↗
5
6H18214800
Wire, lead
Loading…
↗
6
9709506010
Bolt
Loading…
↗
7
9299506600
Washer, plain (646)
Loading…
↗
8
63D43112014D
Bracket, clamp 2
Loading…
↗
9
63D8214800
Wire, lead 5
Loading…
↗
10
9788506008
Screw, pan head(6a3)
Loading…
↗
11
6484311401
Pad, transom clamp
Loading…
↗
12
6634311601
Screw, transom
Loading…
↗
13
9024304007
Pin (663)
Loading…
↗
14
66343118014D
Handle, transom clamp
Loading…
↗
15
63D43128014D
Spacer, clamp bracket
Loading…
↗
16
69D43311114D
Bracket, swivel 1
Loading…
↗
17
9370006M03
Nipple, grease(6a1)
Loading…
↗
18
63D4369100
Indicator, tilt
Loading…
↗
19
63D4313101
Bolt, clamp bracket
Loading…
↗
20
9038622M15
Bushing (688)
Loading…
↗
21
9020122M03
Washer, plate(64j)
Loading…
↗
22
9018522M11
Nut, self-locking
Loading…
↗
23
6G54314501
Cap, clamp bracket
Loading…
↗
24
6H54318103
Lever, tilt stop 1
Loading…
↗
25
6H54318503
Lever, tilt stop 2
Loading…
↗
26
9038610M16
Bushing (688)
Loading…
↗
27
9038610025
Bushing (658)
Loading…
↗
28
6G54314800
Collar, distance
Loading…
↗
29
9169030020
Pin, spring (6h4)
Loading…
↗
30
9024906M19
Pin(6e5)
Loading…
↗
31
6884316001
Tilt rod ass'y
Loading…
↗
32
6884316500
Stopper, tilt rod
Loading…
↗
33
9169030012
Pin, spring
Loading…
↗
34
9050216M02
Spring, conical (688)
Loading…
↗
35
69D43170104D
Shock absorber sub-assembly
Loading…
↗
36
69D4363100
Lever, tilt
Loading…
↗
38
6634525100
Anode
Loading…
↗
39
9868006525
Screw flat head
Loading…
↗
40
69D4312600
Pin, upper shock mount
Loading…
↗
41
9038716003
Collar
Loading…
↗
42
9038716004
Collar
Loading…
↗
43
9341016006
Circlip
Loading…
↗
44
9011618M52
Bolt, stud(62x)
Loading…
↗
45
9038618M44
Bushing (6g5)
Loading…
↗
46
9299518600
Washer(64j)
Loading…
↗
47
9017018M10
Nut (6h5)
Loading…
↗
48
6824331801
Cover
Loading…
↗
49
9050614M24
Spring, tension(6e5)
Loading…
↗
50
6G54314400
Hook, spring
Loading…
↗
52
9010112M65
Bolt
Loading…
↗
53
9299512200
Ybs66-12 washer,plain
Loading…
↗
54
9020112426
Washe, plate(663)
Loading…
↗
55
9538012600
Nut (707)
Loading…
↗
