E60HMHD (2014)
BRACKET 1

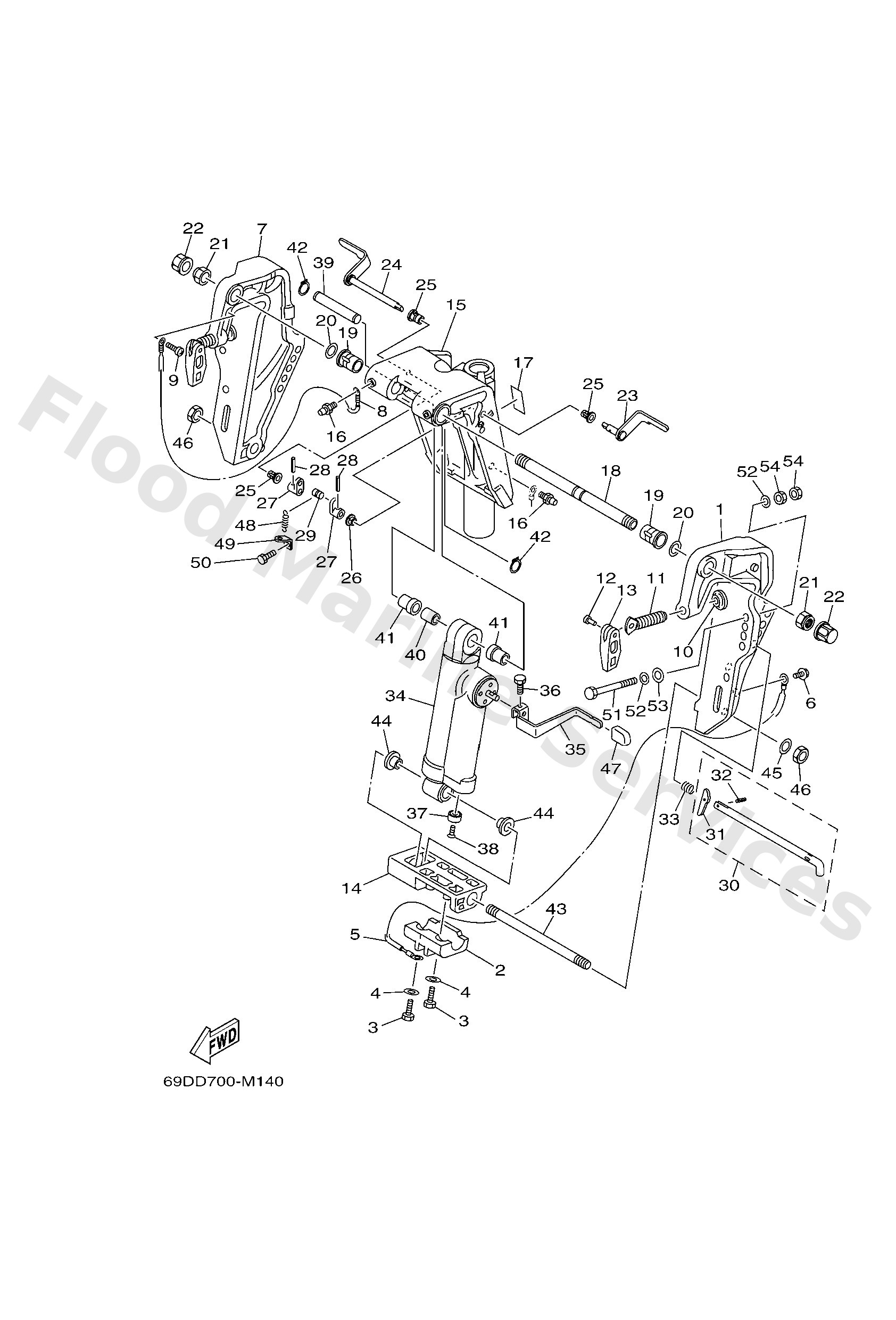

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
63D43111014D
Bracket, clamp 1
Loading…
↗
2
63D4525101
Anode
Loading…
↗
3
9709506025
Bolt
Loading…
↗
4
9299506600
Washer, plain (646)
Loading…
↗
5
6H18214800
Wire, lead
Loading…
↗
6
9759506510
Bolt, hexagon w/w deep recess
Loading…
↗
7
63D43112014D
Bracket, clamp 2
Loading…
↗
8
63D8214800
Wire, lead 5
Loading…
↗
9
9788506008
Screw, pan head(6a3)
Loading…
↗
10
6484311401
Pad, transom clamp
Loading…
↗
11
6634311601
Screw, transom
Loading…
↗
12
9024304007
Pin (663)
Loading…
↗
13
66343118014D
Handle, transom clamp
Loading…
↗
14
63D43128014D
Spacer, clamp bracket
Loading…
↗
15
69D43311114D
Bracket, swivel 1
Loading…
↗
16
9370006M03
Nipple, grease(6a1)
Loading…
↗
17
63D4369100
Indicator, tilt
Loading…
↗
18
63D4313101
Bolt, clamp bracket
Loading…
↗
19
9038622M15
Bushing (688)
Loading…
↗
20
9020122M03
Washer, plate(64j)
Loading…
↗
21
9018522M11
Nut, self-locking
Loading…
↗
22
6G54314501
Cap, clamp bracket
Loading…
↗
23
6H54318103
Lever, tilt stop 1
Loading…
↗
24
6H54318503
Lever, tilt stop 2
Loading…
↗
25
9038610M16
Bushing (688)
Loading…
↗
26
9038610025
Bushing (658)
Loading…
↗
27
6G54314800
Collar, distance
Loading…
↗
28
9169030020
Pin, spring (6h4)
Loading…
↗
29
9024906M19
Pin(6e5)
Loading…
↗
30
6884316001
Tilt rod ass'y
Loading…
↗
31
6884316500
Stopper, tilt rod
Loading…
↗
32
9169030012
Pin, spring
Loading…
↗
33
9050216M02
Spring, conical (688)
Loading…
↗
34
69D43107124D
Shock absorber sub-assembly
Loading…
↗
35
69D4363100
Lever, tilt
Loading…
↗
36
9709506010
Bolt
Loading…
↗
37
6634525100
Anode
Loading…
↗
38
9868006525
Screw flat head
Loading…
↗
39
69D4312600
Pin, upper shock mount
Loading…
↗
40
9038716003
Collar
Loading…
↗
41
9038716004
Collar
Loading…
↗
42
9341016006
Circlip
Loading…
↗
43
9011618M52
Bolt, stud(62x)
Loading…
↗
44
9038618M44
Bushing (6g5)
Loading…
↗
45
9299518600
Washer(64j)
Loading…
↗
46
9017018M10
Nut (6h5)
Loading…
↗
47
6824331801
Cover
Loading…
↗
48
9050614M24
Spring, tension(6e5)
Loading…
↗
49
6G54314400
Hook, spring
Loading…
↗
51
9010112M65
Bolt
Loading…
↗
52
9020112062
Washer, plate
Loading…
↗
53
9020112426
Washe, plate(663)
Loading…
↗
54
9538012600
Nut (707)
Loading…
↗
