F100DET (2018)
BRACKET 1

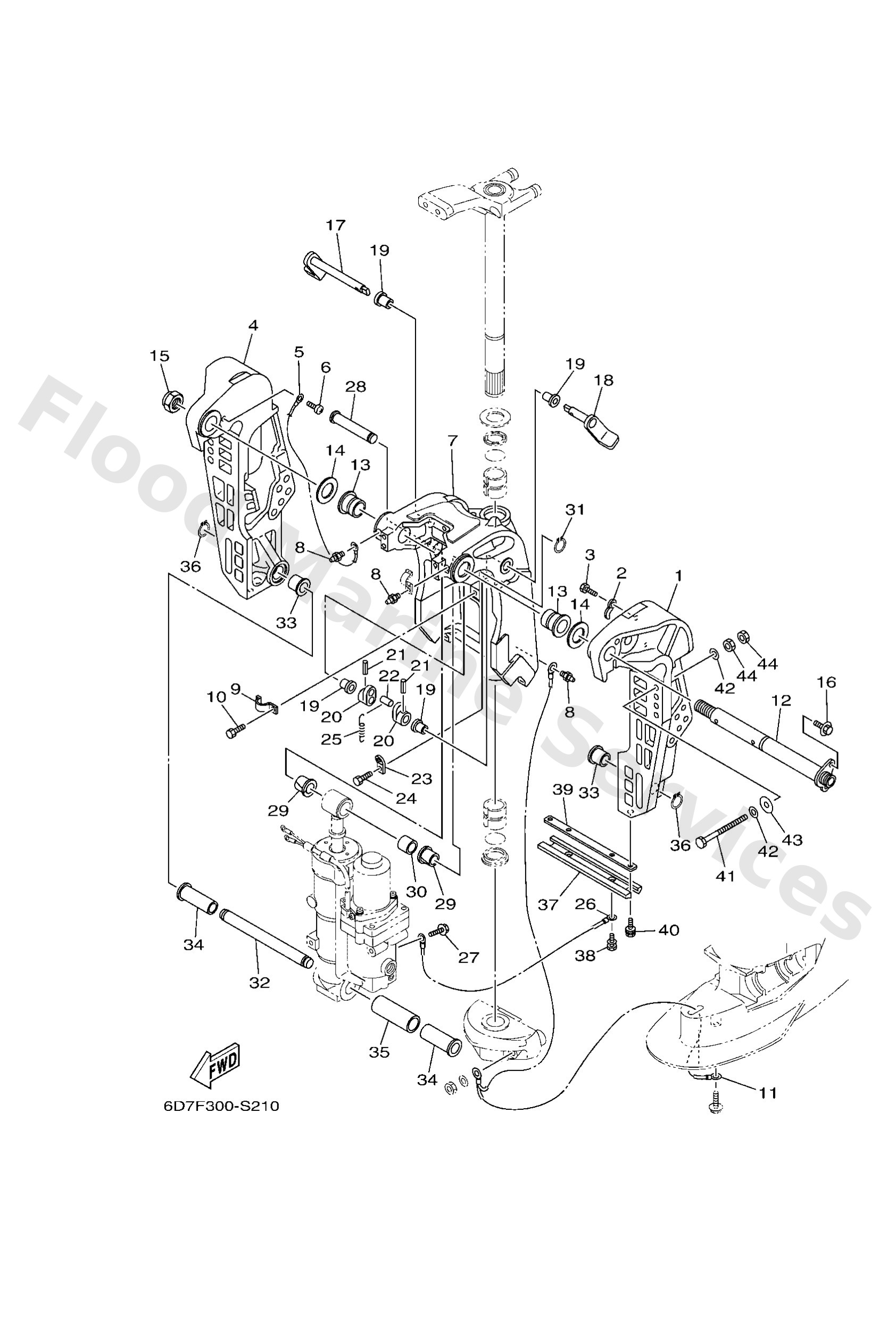

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
67F43111008D
Bracket, clamp 1
Loading…
↗
2
9046510M77
Clamp
Loading…
↗
3
9709506010
Bolt
Loading…
↗
4
67F43112008D
Bracket, clamp 2
Loading…
↗
5
6E58214800
Wire, lead 5
Loading…
↗
6
9788006012
Screw, pan head(62j)
Loading…
↗
7
6D843311018D
Bracket, swivel 1
Loading…
↗
8
9370006M03
Nipple, grease(6a1)
Loading…
↗
9
9046508M63
Clamp(61u)
Loading…
↗
11
67F8212700
Wire, lead 2
Loading…
↗
12
64E4313130
FOR TILT LIMIT
Bolt, clamp bracket
Loading…
↗
13
9038625M31
Bushing (6e5)
Loading…
↗
14
9020126M59
Washer, plate (6e5)
Loading…
↗
15
9018522M11
Nut, self-locking
Loading…
↗
16
9759508520
Bolt(6td)
Loading…
↗
17
6D84318100
Lever, tilt stop 1
Loading…
↗
18
6D84318500
Lever, tilt stop 2
Loading…
↗
19
9038610M16
Bushing (688)
Loading…
↗
20
6G54314800
Collar, distance
Loading…
↗
21
9169030020
Pin, spring (6h4)
Loading…
↗
22
9024906M19
Pin(6e5)
Loading…
↗
23
66T4314400
Hook, spring
Loading…
↗
25
9050614M24
Spring, tension(6e5)
Loading…
↗
26
6D88214800
Wire, lead 4
Loading…
↗
27
9759506510
Bolt, hexagon w/w deep recess
Loading…
↗
28
6D84312600
Pin, upper shock mount
Loading…
↗
29
9038618M35
Bush (688)
Loading…
↗
30
9038618001
Bush
Loading…
↗
31
9341018M05
Circlip (6f2)
Loading…
↗
32
67F4381800
Pin, lower shock mount
Loading…
↗
33
9038718M01
Collar
Loading…
↗
34
9038618MA0
Bush
Loading…
↗
35
9038722M01
Collar
Loading…
↗
37
6H14525103
Anode
Loading…
↗
38
9011906M81
Bolt, with washer
Loading…
↗
39
6EK4453600
Plate 2
Loading…
↗
40
9759506616
Bolt, hexagon w/w deep recess
Loading…
↗
41
9010112M05
Bolt (l:130mm)
Loading…
↗
42
9020113M01
Washer, plate(6e5)
Loading…
↗
43
9020112426
Washe, plate(663)
Loading…
↗
44
9538012600
Nut (707)
Loading…
↗
