F13.5AMH (2003)
BRACKET 1

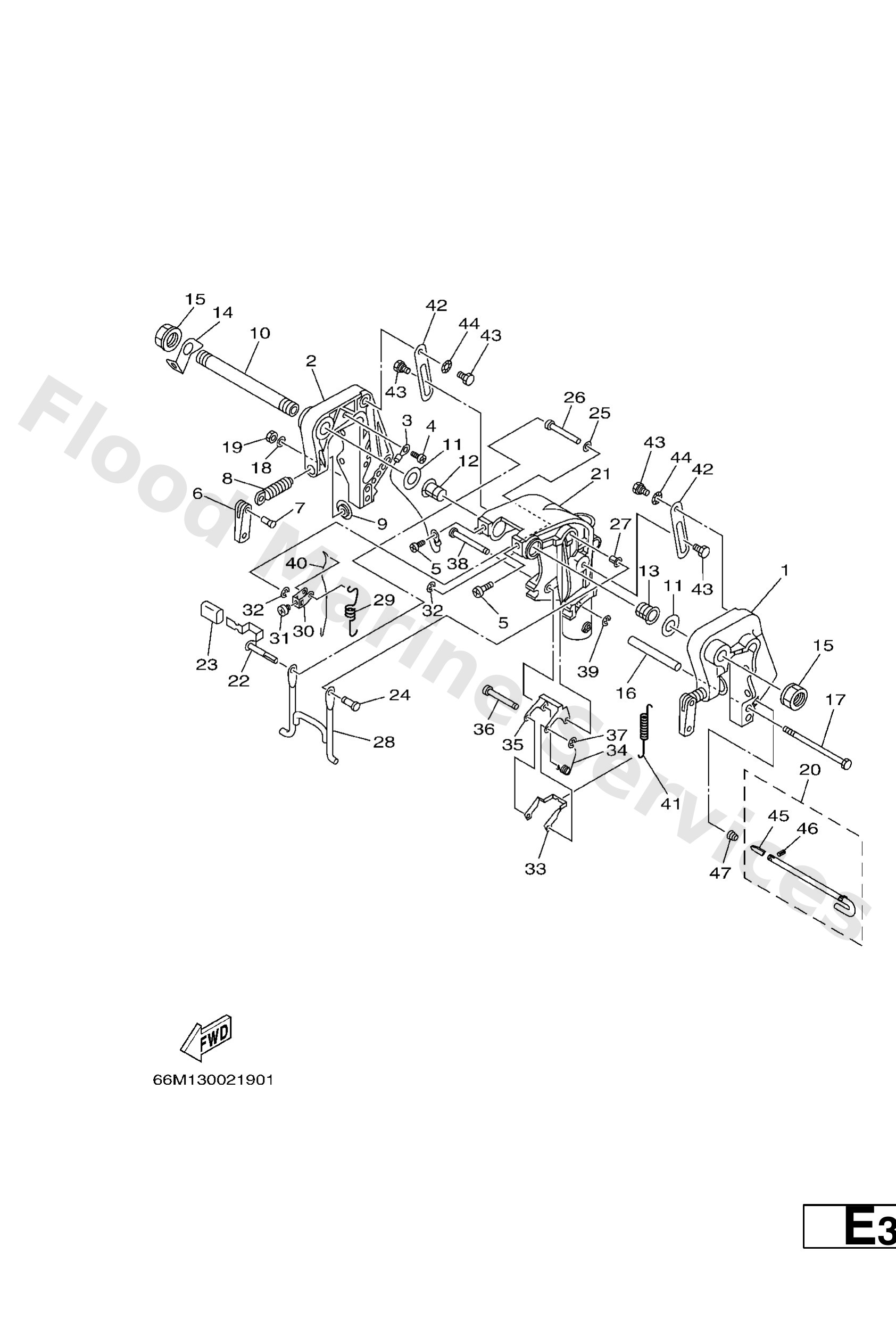

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
63V−43111−05−4D
Bracket, clamp 1
Loading…
↗
2
63V−43112−06−4D
Bracket, clamp 2
Loading…
↗
3
66M−82148−00
Wire, lead 4
Loading…
↗
4
97885−06008
Screw, pan head(6a3)
Loading…
↗
5
97885−08010
Rivet
Loading…
↗
6
6E0−43118−01
Handle, transom clamp
Loading…
↗
7
90243−04M01
Pin(6a1)
Loading…
↗
8
6E7−43116−00
Screw, transom clamp
Loading…
↗
9
648−43114−01
Pad, transom clamp
Loading…
↗
10
63W−43131−10
FOR RIDE GUIDE
Bolt, clamp bracket
Loading…
↗
11
90202−22M54
Washer, plate(63v)
Loading…
↗
12
90386−22M94
Bush(63v)
Loading…
↗
14
66R−43113−00
Plate, clamp bracket
Loading…
↗
15
90185−22043
Nut, self-locking
Loading…
↗
16
90387−06M13
Collar(6h6)
Loading…
↗
17
90101−06M29
Bolt, hexagon (682)
Loading…
↗
18
92995−06600
Washer, plain (646)
Loading…
↗
19
95380−06700
Nut
Loading…
↗
19
4316001
Tilt Rod assembly
Loading…
↗
21
63V−43311−03−4D
S
Bracket, swivel 1
Loading…
↗
21
66M−43311−10−4D
L
Bracket, swivel 1
Loading…
↗
22
66M−43630−01
Tilt lever assembly
Loading…
↗
23
682−43318−01
Cover
Loading…
↗
24
63V−43191−00
Shaft, stopper
Loading…
↗
25
90202−07M60
Washer, plate
Loading…
↗
26
90387−07M07
Collar
Loading…
↗
27
90386−07M95
Bush(63v)
Loading…
↗
28
66M−43350−01
Receiver assembly
Loading…
↗
29
90507−20M00
Spring, tension(63v)
Loading…
↗
30
63V−43641−01
Lever, tilt
Loading…
↗
31
90157−05014
Screw, pan head
Loading…
↗
32
99080−05600
Circlip(22k)
Loading…
↗
33
63V−43614−10
Plate, tilt lock
Loading…
↗
34
90508−18M41
Spring, torsion
Loading…
↗
35
66R−43615−00
Plate, tilt lock
Loading…
↗
36
66R−43611−00
Shaft, tilt lock
Loading…
↗
37
93430−04M03
Circlip (eu0)
Loading…
↗
38
63V−43659−00
Shaft, reverse lock
Loading…
↗
40
66R−43617−00
Rod, tilt lock
Loading…
↗
41
63V−43656−00
Spring, reverse lock 1
Loading…
↗
42
63V−43181−00
Lever, tilt stop 1
Loading…
↗
43
90109−06M84
Bolt
Loading…
↗
44
90206−10M24
Washer, wave
Loading…
↗
45
6894316500
Plate, tilt lock
Loading…
↗
46
9169030008
Pin. spring(656)
Loading…
↗
47
9050210M07
Spring, conical(6k3)
Loading…
↗
