F150CA (2022)
BRACKET 1

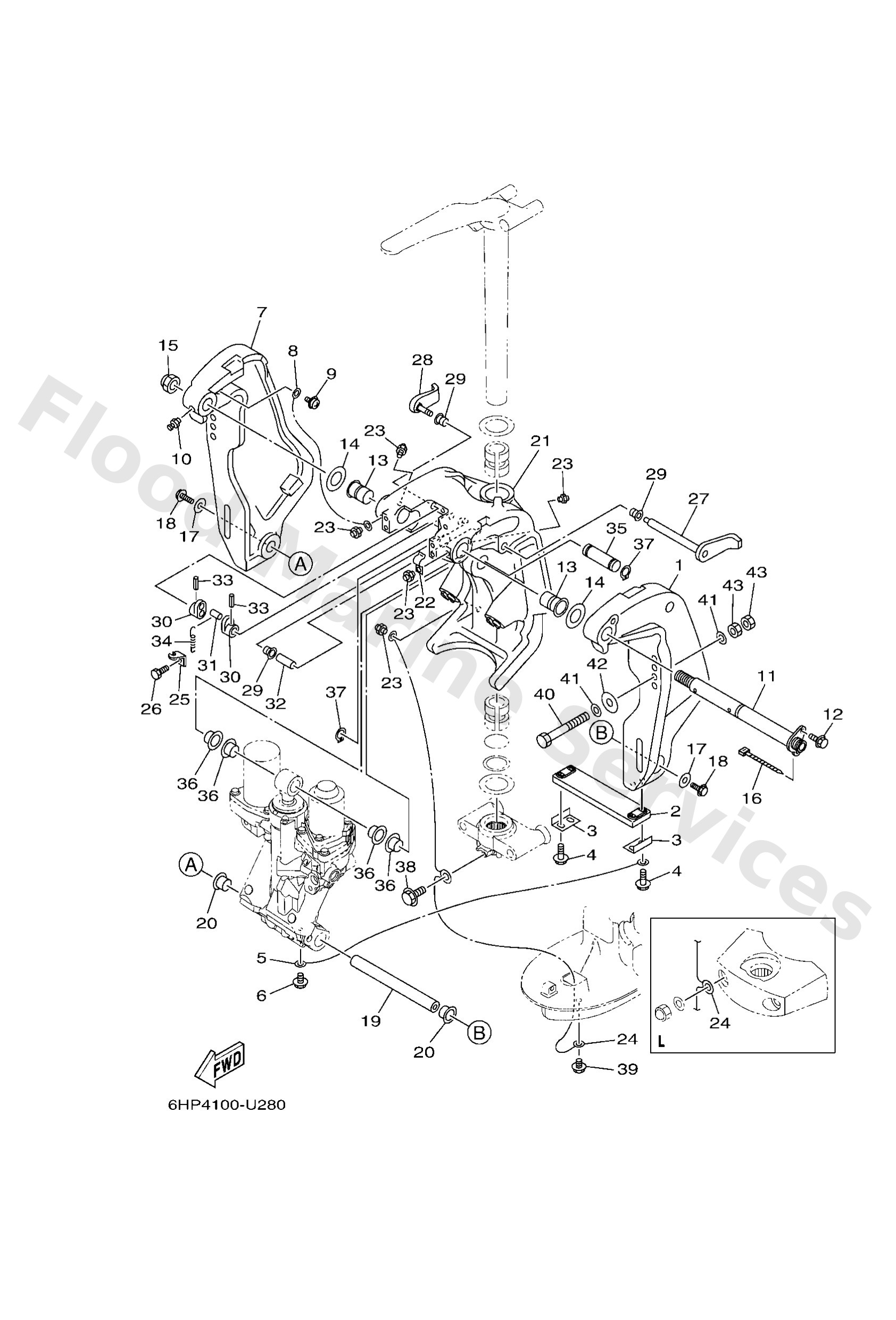

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
64E4311102CE
WHITE
Bracket, clamp 1
Loading…
↗
1
64E43111028D
GRAY
Bracket, clamp
Loading…
↗
2
6AW4525100
Anode
Loading…
↗
3
6G54452600
Plate
Loading…
↗
4
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
5
6E58214800
Wire, lead 5
Loading…
↗
6
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
7
64E43112028D
GRAY
Bracket, clamp
Loading…
↗
7
64E4311202CE
WHITE
Bracket, clamp 2
Loading…
↗
9
9798506212
Screw, with washer(6h3)
Loading…
↗
10
9370006002
Nipple, grease
Loading…
↗
11
64E4313130
Bolt, clamp bracket
Loading…
↗
12
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
13
9038625M31
Bushing (6e5)
Loading…
↗
14
9020126M59
Washer, plate (6e5)
Loading…
↗
15
9018522M11
Nut, self-locking
Loading…
↗
16
9046511M10
Clamp
Loading…
↗
17
9020110060
Washer, plate
Loading…
↗
18
9011910054
Bolt, with washer
Loading…
↗
19
6BC4381800
Pin, lower shock mount
Loading…
↗
20
9038622M98
Bush(61u)
Loading…
↗
21
64E4331110CE
WHITE, L(20.3")
Bracket, swivel 1
Loading…
↗
21
64E43311108D
GRAY, L(20.3")
Bracket, swibel
Loading…
↗
21
64E43311208D
GRAY, X(25.3")
Bracket, swibel
Loading…
↗
21
64E4331120CE
WHITE, X(25.3")
Bracket, swivel 1
Loading…
↗
22
9046508M63
Clamp(61u)
Loading…
↗
24
6DA8214900
X(25.3")
Wire, lead 3
Loading…
↗
24
66K8214900
L(20.3")
Wire, lead 3
Loading…
↗
25
6G54314400
Hook, spring
Loading…
↗
26
97D9506010
Bolt, hexagon deep recess
Loading…
↗
27
6G54318102
Lever, tilt stop 1
Loading…
↗
28
6G54318502
Lever, tilt stop 2
Loading…
↗
29
9038610M16
Bushing (688)
Loading…
↗
30
6G54314800
Collar, distance
Loading…
↗
31
9024906M19
Pin(6e5)
Loading…
↗
32
9038710M05
Collar(6e5)
Loading…
↗
33
9169030020
Pin, spring (6h4)
Loading…
↗
34
9050616003
Spring, tension
Loading…
↗
35
64E4312610
Pin, upper shock mount
Loading…
↗
37
9341022M11
Circlip(61u)
Loading…
↗
38
95D9506010
X(25.3")
Bolt, flange deep recess
Loading…
↗
40
9010112065
UR X(25.3")
Bolt (l:130mm)
Loading…
↗
40
9010112066
UR
Bolt (l:150mm)
Loading…
↗
41
9020113M01
Washer, plate(6e5)
Loading…
↗
42
9020112426
Washe, plate(663)
Loading…
↗
43
9538012600
Nut (707)
Loading…
↗
