Yamaha Outboard Parts - BRACKET 1 - F15AEP (2002) | Flood Marine

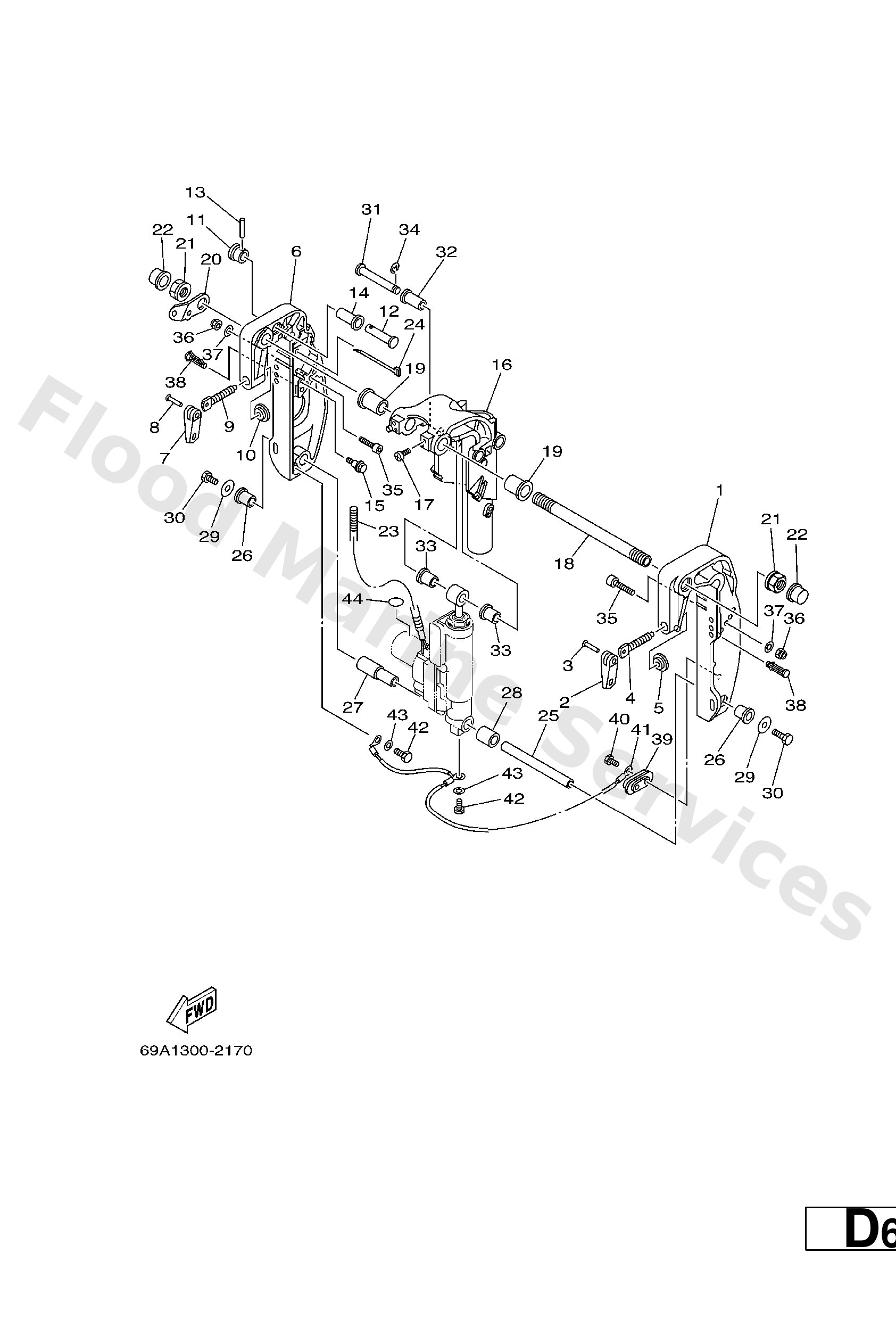

Diagram: BRACKET 1

Diagram

Parts List

Reference
Description
Price


1
69A−43111−00−4D
Bracket, clamp 1
Loading…

↗
2
6E0−43118−01
Handle, transom clamp
Loading…

↗
3
90243−04M01
Pin(6a1)
Loading…

↗
4
6E7−43116−00
Screw, transom clamp
Loading…

↗
5
648−43114−01
Pad, transom clamp
Loading…

↗
6
69A−43112−00−4D
Bracket, clamp 2
Loading…

↗
11
65W−43192−00
Knob, stopper
Loading…

↗
12
65W−43191−00
Shaft, stopper
Loading…

↗
13
91690−30018
926-51502-00 pin, spring (700)
Loading…

↗
14
90386−14MA1
Bush
Loading…

↗
15
90109−06M04
Bolt
Loading…

↗
16
69A−43311−00−4D S
Bracket, Swivel 1
Loading…

↗
16
69A−43311−10−4D L
Bracket, swivel 1
Loading…

↗
17
97885−08010
Rivet
Loading…

↗
18
69A−43131−00
Bolt, clamp bracket
Loading…

↗
19
90386−22MA4
Bush
Loading…

↗
20
69A−43113−00
Plate, clamp bracket
Loading…

↗
21
90185−22043
Nut, self-locking
Loading…

↗
22
6G5−43145−01
Cap, clamp bracket
Loading…

↗
23
90446−14MH7
Hose
Loading…

↗
24
90465−13M97
Clamp
Loading…

↗
25
69G−43818−00
Pin, lower shock mount
Loading…

↗
26
90386−16MA7
Bush
Loading…

↗
27
90386−16MA8
Bush
Loading…

↗
28
90387−16M02
Collar
Loading…

↗
29
90201−08M00
Washer, plate(6e0)
Loading…

↗
30
97080−08016
Bolt
Loading…

↗
31
90249−12M36
Pin
Loading…

↗
32
90381−12M10
Bush, solid
Loading…

↗
33
90381−12M11
Bush, solid
Loading…

↗
34
93430−10M00
Circlip
Loading…

↗
35
90110−08M05
Bolt, hexagon socket head
Loading…

↗
36
90185−08057
Nut, nylon (6j8)
Loading…

↗
37
92990−08600
Washer, plain (663)
Loading…

↗
38
90338−08M19 S
Plug
Loading…

↗
39
65W−45251−00
Anode
Loading…

↗
40
90101−06020
Bolt
Loading…

↗
41
63V−82127−00
Wire, lead 2
Loading…

↗
42
97095−06010
Bolt
Loading…

↗
43
92995−06600
Washer, plain (646)
Loading…

↗
44
69A−43155−00
Mark 1
Loading…

↗
