F175GET (2025)
BRACKET 1

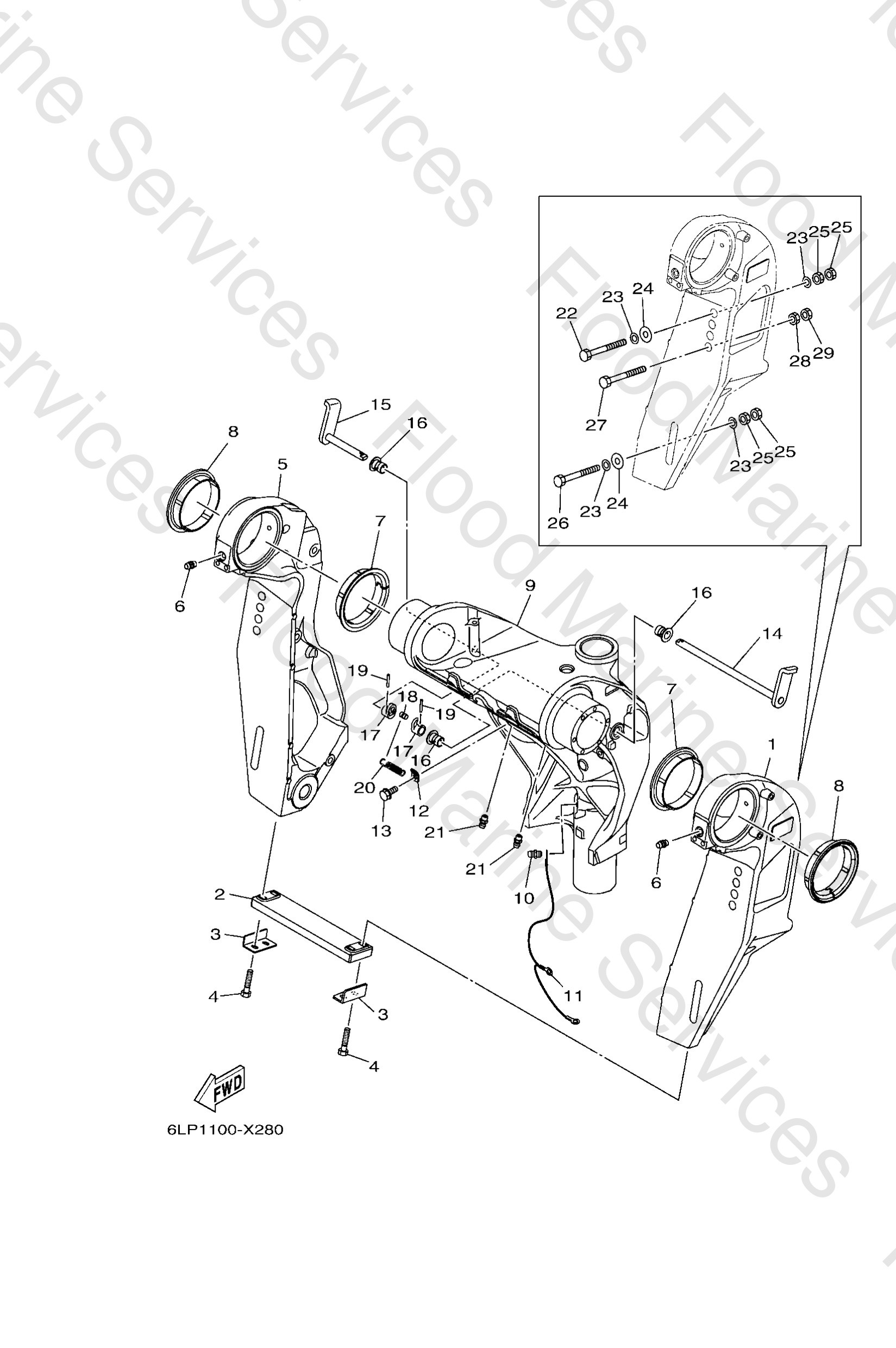

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6LH43111008D
Bracket, clamp 1
Loading…
↗
2
6AW4525100
Anode
Loading…
↗
3
6G54452600
Plate
Loading…
↗
4
97E9506530
Bolt, hexagon w/w deep recess
Loading…
↗
5
6LH43112008D
Bracket, clamp 2
Loading…
↗
6
9370006002
Nipple, grease
Loading…
↗
7
6LH4333300
Bush. , swivel bracket
Loading…
↗
8
6LH4333310
Bush. , swivel bracket
Loading…
↗
9
6LH43311108D
X(25.2")
Bracket, swivel 1
Loading…
↗
9
6LH43311008D
L(20.3")
Bracket, swivel 1
Loading…
↗
11
6DA8214900
X(25.2")
Wire, lead 3
Loading…
↗
11
66K8214900
L(20.3")
Wire, lead 3
Loading…
↗
12
6G54314400
Hook, spring
Loading…
↗
13
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
14
6LH4318100
Lever, tilt stop 1
Loading…
↗
15
6LH4318500
Lever, tilt stop 2
Loading…
↗
16
9038610M16
Bushing (688)
Loading…
↗
17
6G54314800
Collar, distance
Loading…
↗
18
9024906M19
Pin(6e5)
Loading…
↗
19
9169030020
Pin, spring (6h4)
Loading…
↗
20
9050616010
Spring, tension
Loading…
↗
22
9010112070
Bolt (230mm)
Loading…
↗
23
9020113M01
Washer, plate(6e5)
Loading…
↗
24
9020112426
Washe, plate(663)
Loading…
↗
25
9538012600
Nut (707)
Loading…
↗
26
9010112066
Bolt (l:150mm)
Loading…
↗
27
9010112078
AP
Bolt
Loading…
↗
28
9538012700
AP
Nut(6t4)
Loading…
↗
29
9017012M28
AP
Nut(6u0)
Loading…
↗
