F20GMH (2019)
BRACKET 1

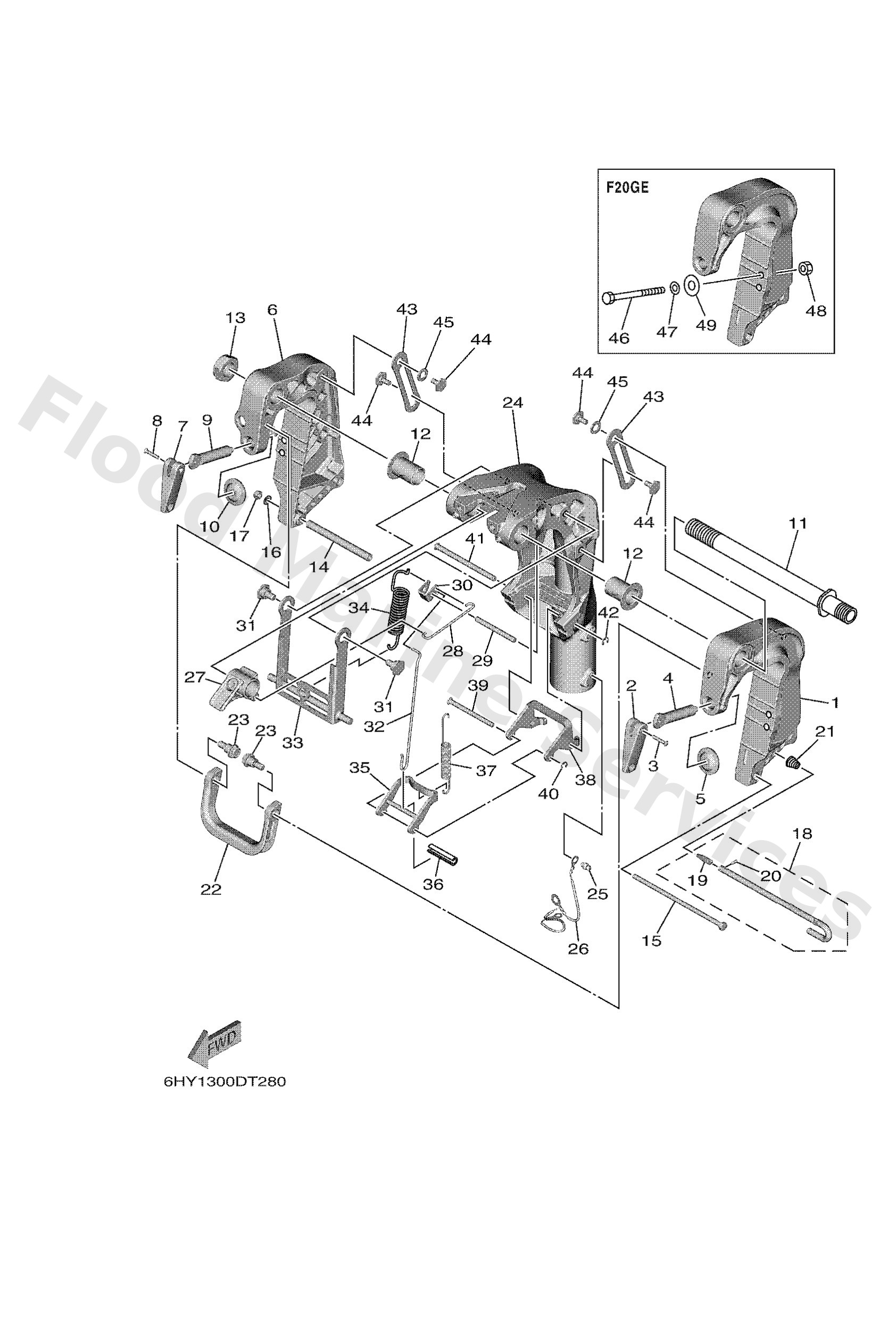

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6FM43111008D
Bracket, clamp 1
Loading…
↗
2
6E04311801
Handle, transom clamp
Loading…
↗
3
9024304M01
Pin(6a1)
Loading…
↗
4
6E74311600
Screw, transom clamp
Loading…
↗
5
6484311401
Pad, transom clamp
Loading…
↗
6
6FM43112008D
Bracket, clamp 2
Loading…
↗
11
6FM4313110
Bolt, clamp bracket
Loading…
↗
12
9038622MA4
Bush
Loading…
↗
13
9018522043
Nut, self-locking
Loading…
↗
14
9038706M13
Collar(6h6)
Loading…
↗
15
9010106M18
Bolt(6l5)
Loading…
↗
16
9299506600
Washer, plain (646)
Loading…
↗
17
9538006700
Nut
Loading…
↗
18
6L24316001
Tilt rod assembly
Loading…
↗
19
6894316500
Plate, tilt lock
Loading…
↗
20
9169030008
Pin. spring(656)
Loading…
↗
21
9050210M07
Spring, conical(6k3)
Loading…
↗
22
6FM4273100
Carrying handle
Loading…
↗
23
9010908043
Bolt
Loading…
↗
24
6FM43311008D
S(16.7")
Bracket, swivel 1
Loading…
↗
24
6FM43311108D
L(21.7")
Bracket, swivel 1
Loading…
↗
25
9370006M03
Nipple, grease(6a1)
Loading…
↗
26
6AH8212700
Wire, lead 2
Loading…
↗
27
6FM4363100
Lever, tilt
Loading…
↗
28
6FM4361600
Rod, tilt lock
Loading…
↗
29
6FM4364600
Shaft, lever
Loading…
↗
30
6FM4364100
Lever, tilt
Loading…
↗
31
9010908M87
Bolt
Loading…
↗
32
6FM4361700
Rod, tilt lock
Loading…
↗
33
6FM4335000
Receiver assembly
Loading…
↗
34
6FM4365600
Spring, reverse lock 1
Loading…
↗
35
6FM4362400
Plate, tilt rock
Loading…
↗
36
9038706321
Collar
Loading…
↗
37
6FM4365610
Spring, reverse lock 1
Loading…
↗
38
6FM4361300
Arm, tilt lock
Loading…
↗
39
6L24333610
Pin
Loading…
↗
40
9908005600
Circlip(22k)
Loading…
↗
41
6J84361101
Shaft, tilt lock
Loading…
↗
43
6FM4362700
Stopper
Loading…
↗
44
9010906M84
Bolt
Loading…
↗
45
9020610M24
Washer, wave
Loading…
↗
46
9010108M88
Bolt (6g8)
Loading…
↗
47
9299008600
Washer, plain (663)
Loading…
↗
48
9018508057
Nut, nylon (6j8)
Loading…
↗
49
9020108MA4
Washer, plate (6g8)
Loading…
↗
