F225NCB2 (2023)
BRACKET 1

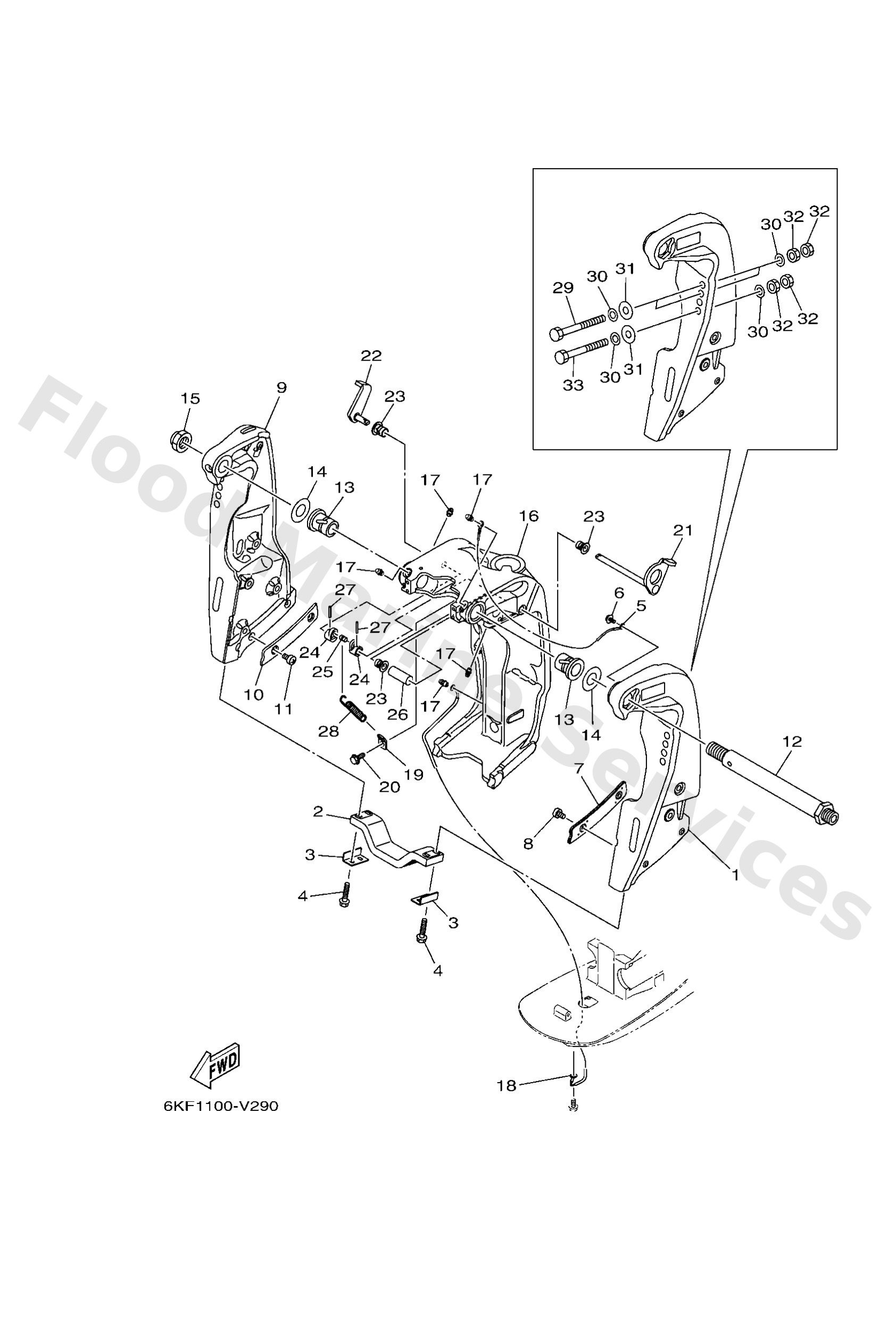

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
69J4311103CE
WHITE
Bracket, clamp 1
Loading…
↗
1
69J43111038D
GRAY
Bracket, clamp 1
Loading…
↗
2
6G54525102
Anode
Loading…
↗
3
6G54452600
Plate
Loading…
↗
4
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
5
6E58214800
Wire, lead 5
Loading…
↗
6
9798506212
Screw, with washer(6h3)
Loading…
↗
7
61A4313201
Washer, friction
Loading…
↗
8
9788506010
Screw pan head
Loading…
↗
9
69J43112038D
GRAY
Bracket, clamp 2
Loading…
↗
9
69J4311203CE
WHITE
Bracket, clamp 2
Loading…
↗
10
61A4313301
Washer,friction
Loading…
↗
12
6R34313100
Bolt, clamp bracket
Loading…
↗
13
9038625M31
Bushing (6e5)
Loading…
↗
14
9020126M59
Washer, plate (6e5)
Loading…
↗
15
9018522M11
Nut, self-locking
Loading…
↗
16
6KF4331100CE
WHITE
Bracket, swivel 1
Loading…
↗
16
6KF43311008D
GRAY
Bracket, swivel 1
Loading…
↗
17
9370006002
Nipple, grease
Loading…
↗
18
6KA8214700
Wire, lead 5
Loading…
↗
19
6G54314400
Hook, spring
Loading…
↗
20
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
21
61A4318101
Lever, tilt stop 1
Loading…
↗
22
6G54318502
Lever, tilt stop 2
Loading…
↗
23
9038610M16
Bushing (688)
Loading…
↗
24
6G54314800
Collar, distance
Loading…
↗
25
9024906M19
Pin(6e5)
Loading…
↗
26
9038710M05
Collar(6e5)
Loading…
↗
27
9169030020
Pin, spring (6h4)
Loading…
↗
28
9050616003
Spring, tension
Loading…
↗
29
9010112065
Bolt (l:130mm)
Loading…
↗
30
9020113M01
Washer, plate(6e5)
Loading…
↗
31
9020112426
Washe, plate(663)
Loading…
↗
32
9538012600
Nut (707)
Loading…
↗
33
9010112066
Bolt (l:150mm)
Loading…
↗
