F300NSB (2025)
BRACKET 1

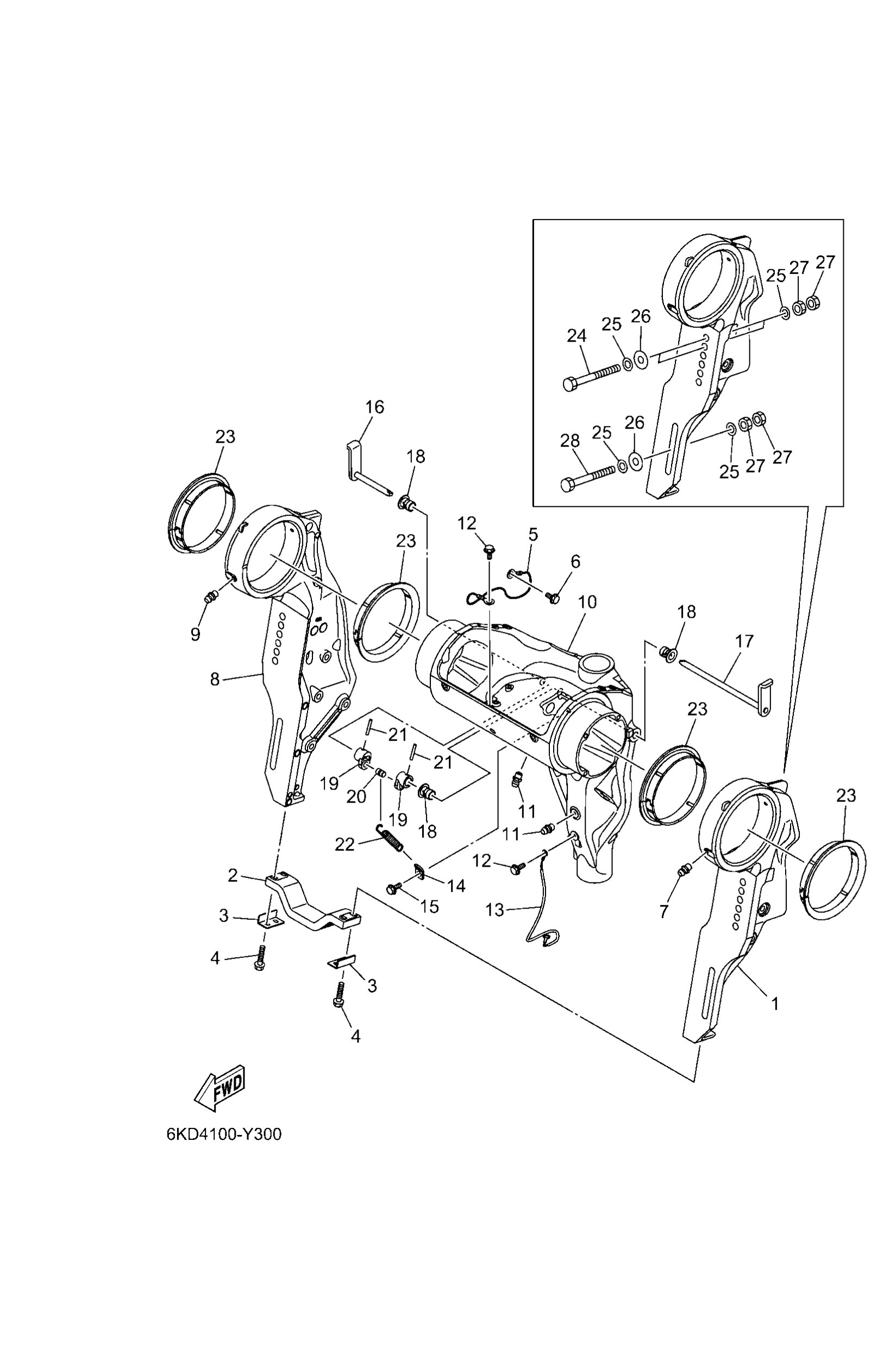

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6ML4311100CE
UR WHITE
Bracket, clamp 1
Loading…
↗
1
6ML43111008D
UR GRAY
Bracket, clamp 1
Loading…
↗
2
6G54525102
Anode
Loading…
↗
3
6G54452600
Plate
Loading…
↗
4
97E9506525
Bolt, hexagon w/w deep recess
Loading…
↗
5
6U08212700
Wire, lead 5
Loading…
↗
6
97E9506510
Bolt, hexagon w/w deep recess
Loading…
↗
7
9370006002
Nipple, grease
Loading…
↗
8
6ML43112008D
UR GRAY
Bracket, clamp 2
Loading…
↗
8
6ML4311200CE
UR WHITE
Bracket, clamp 2
Loading…
↗
10
6KA43311008D
UR GRAY
Bracket, swivel 1
Loading…
↗
10
6KA4331100CE
UR WHITE
Bracket, swivel 1
Loading…
↗
13
6KA8214700
Wire, lead 5
Loading…
↗
14
6G54314400
Hook, spring
Loading…
↗
15
97E9506512
Bolt, hexagon w/w deep recess
Loading…
↗
16
6KA4318100
Lever, tilt stop 1
Loading…
↗
17
6KA4318500
Lever, tilt stop 2
Loading…
↗
18
9038610M16
Bushing (688)
Loading…
↗
19
6G54314800
Collar, distance
Loading…
↗
20
9024906M19
Pin(6e5)
Loading…
↗
21
9169030020
Pin, spring (6h4)
Loading…
↗
22
9050616010
Spring, tension
Loading…
↗
23
6GR4333300
Bush. , swivel bracket
Loading…
↗
24
9010112067
Bolt (150mm)
Loading…
↗
25
9020113M01
Washer, plate(6e5)
Loading…
↗
26
9020112426
Washe, plate(663)
Loading…
↗
27
9538012600
Nut (707)
Loading…
↗
28
9010112076
Bolt
Loading…
↗
