F40JMHD (2025)
BRACKET 1

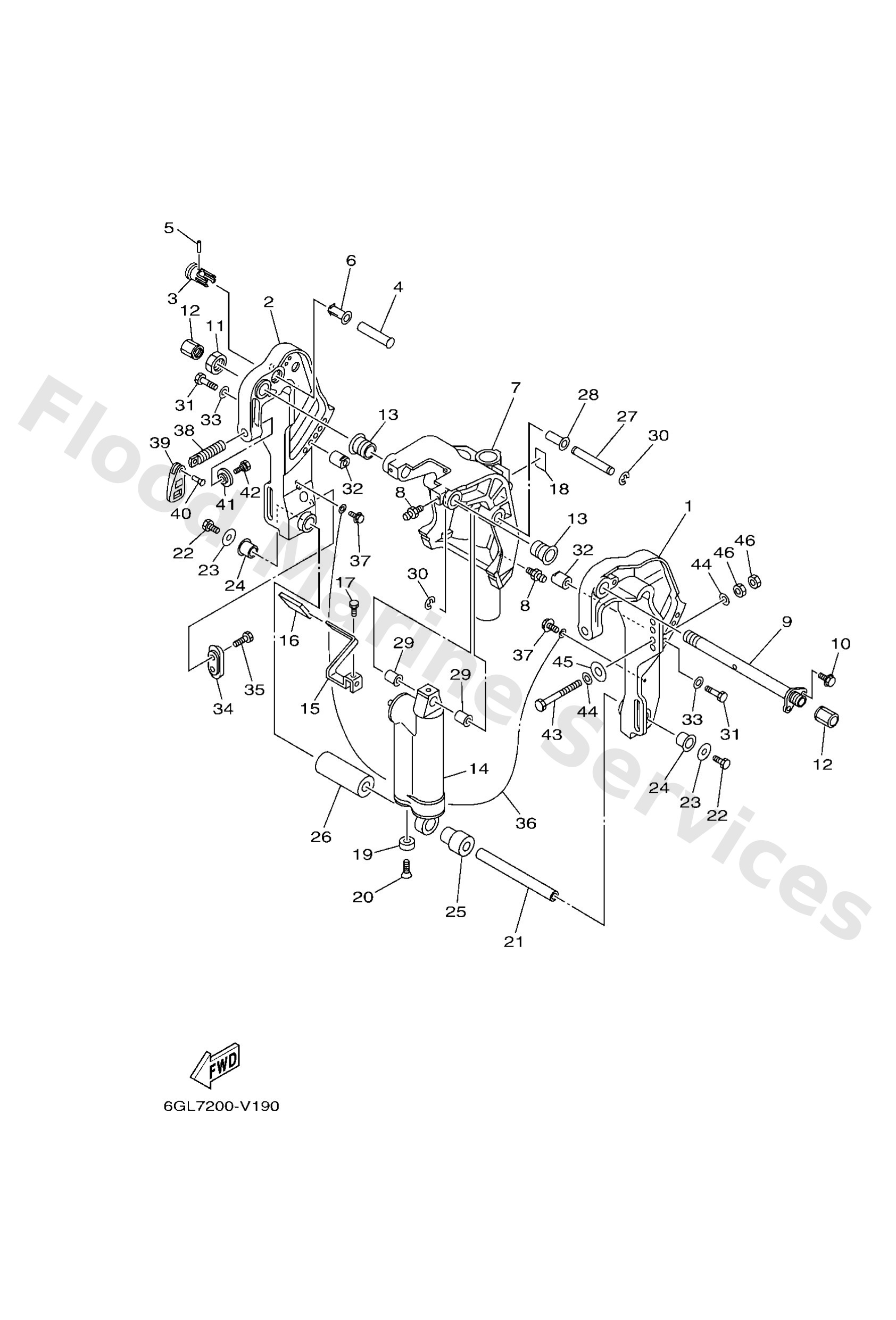

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
67C43111108D
Bracket, clamp 1
Loading…
↗
2
67C43112108D
Bracket, clamp 2
Loading…
↗
3
6FM4319200
Knob, stopper
Loading…
↗
4
65W4319100
Shaft, stopper
Loading…
↗
5
9169030018
926-51502-00 pin, spring (700)
Loading…
↗
6
6FM4318900
Bushing
Loading…
↗
7
67C43311108D
Bracket, swivel 1
Loading…
↗
8
9370006004
Nipple, grease(6a1)
Loading…
↗
9
6K94313101
Bolt, clamp bracket
Loading…
↗
10
97E9508520
Bolt, hexagon w/w deep recess
Loading…
↗
11
9018522043
Nut, self-locking
Loading…
↗
12
6G54314501
Cap, clamp bracket
Loading…
↗
13
9038622MA4
Bush
Loading…
↗
14
67C43107128D
Shock absorber sub-assembly
Loading…
↗
15
67C4363100
Lever, tilt
Loading…
↗
16
6824331801
Cover
Loading…
↗
17
97D9506010
Bolt, hexagon deep recess
Loading…
↗
18
63D4369100
Indicator, tilt
Loading…
↗
19
6634525100
Anode
Loading…
↗
20
9015206M01
Screw, countersunk
Loading…
↗
21
6BG4381800
Pin, lower shock mount
Loading…
↗
22
9708008016
Bolt
Loading…
↗
23
9020108M00
Washer, plate(6e0)
Loading…
↗
24
9038618M44
Bushing (6g5)
Loading…
↗
25
9038618MA5
Bush
Loading…
↗
26
9038718M03
Collar
Loading…
↗
27
9024912M38
Pin
Loading…
↗
28
9038112M10
Bush, solid
Loading…
↗
29
9038112M11
Bush, solid
Loading…
↗
30
9908010600
Circlip
Loading…
↗
31
97D9510050
Bolt, hexagon deep recess
Loading…
↗
32
6BG43654A0
Nut 1
Loading…
↗
33
9299510600
Washer, plate
Loading…
↗
34
65W4525100
Anode
Loading…
↗
35
9010106020
Bolt
Loading…
↗
36
67C8212720
Wire, lead 2
Loading…
↗
37
97E9506514
Bolt, hexagon w/w deep recess
Loading…
↗
38
6GL4311600
-
Loading…
↗
39
66343118018D
Handle, transom clamp
Loading…
↗
40
9024304007
Pin (663)
Loading…
↗
41
6F54311400
Pat, transom clamp
Loading…
↗
42
9010906M12
Bolt (6f5)
Loading…
↗
43
9010112063
Bolt
Loading…
↗
44
9020112062
Washer, plate
Loading…
↗
45
9020112426
Washe, plate(663)
Loading…
↗
46
9538012600
Nut (707)
Loading…
↗
