F80AET (2003)
BRACKET 1

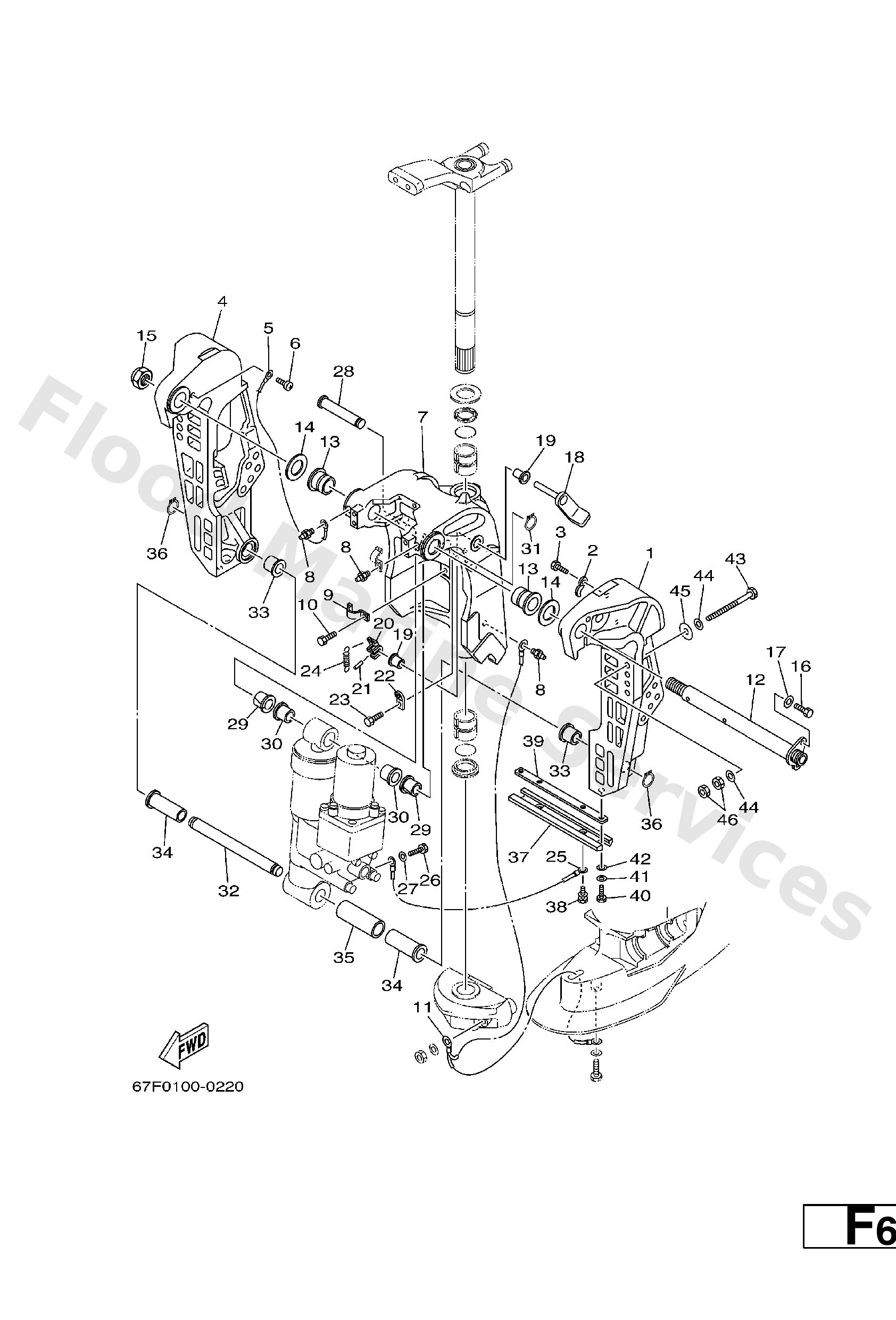

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
67F−43111−00−4D
Bracket, clamp 1
Loading…
↗
2
90465−10M77
Clamp
Loading…
↗
3
97095−06010
Bolt
Loading…
↗
4
67F−43112−00−4D
Bracket, clamp 2
Loading…
↗
5
6E5−82148−00
Wire, lead 5
Loading…
↗
6
97880−06012
Screw, pan head(62j)
Loading…
↗
7
67F−43311−10−4D
Bracket, Swivel 1
Loading…
↗
8
93700−06M03
Nipple, grease(6a1)
Loading…
↗
9
90465−08M63
Clamp(61u)
Loading…
↗
11
67F−82127−00
Wire, lead 2
Loading…
↗
12
64E−43131−01
Bolt, clamp bracket
Loading…
↗
13
90386−25M31
Bushing (6e5)
Loading…
↗
14
90201−26M59
Washer, plate (6e5)
Loading…
↗
15
90185−22M11
Nut, self-locking
Loading…
↗
16
97095−08020
Bolt, hexagon
Loading…
↗
17
92995−08100
Ybs67-8 washer, spring
Loading…
↗
18
67F−43181−00
Lever, tilt stop 1
Loading…
↗
19
90386−10M16
Bushing (688)
Loading…
↗
20
67F−43631−00
Lever, tilt
Loading…
↗
21
91690−30020
Pin, spring (6h4)
Loading…
↗
22
66T−43144−00
Hook, spring
Loading…
↗
24
90506−14M24
Spring, tension(6e5)
Loading…
↗
25
67F−82148−00
Wire, lead 4
Loading…
↗
27
92995−06600
Washer, plain (646)
Loading…
↗
28
67F−43126−00
Pin, upper shock mount
Loading…
↗
29
90386−18M35
Bush (688)
Loading…
↗
30
90386−18M63
Bush(6e5)
Loading…
↗
31
93410−18M05
Circlip (6f2)
Loading…
↗
32
67F−43818−00
Pin, lower shock mount
Loading…
↗
33
90387−18M01
Collar
Loading…
↗
34
90386−18MA0
Bush
Loading…
↗
35
90387−22M01
Collar
Loading…
↗
37
6H1−45251−03
Anode
Loading…
↗
38
90119−06M81
Bolt, with washer
Loading…
↗
39
6H1−44526−00
Plate 2
Loading…
↗
40
97095−06016
Bolt, hexagon deep recess
Loading…
↗
41
92995−06100
Washer(6a1)
Loading…
↗
43
90101−12M03
Bolt (l:115mm)
Loading…
↗
44
90201−13M01
Washer, plate(6e5)
Loading…
↗
45
90201−12M05
Washe, plate(663)
Loading…
↗
46
95380−12600
Nut (707)
Loading…
↗
