F80BET (2006)
BRACKET 1

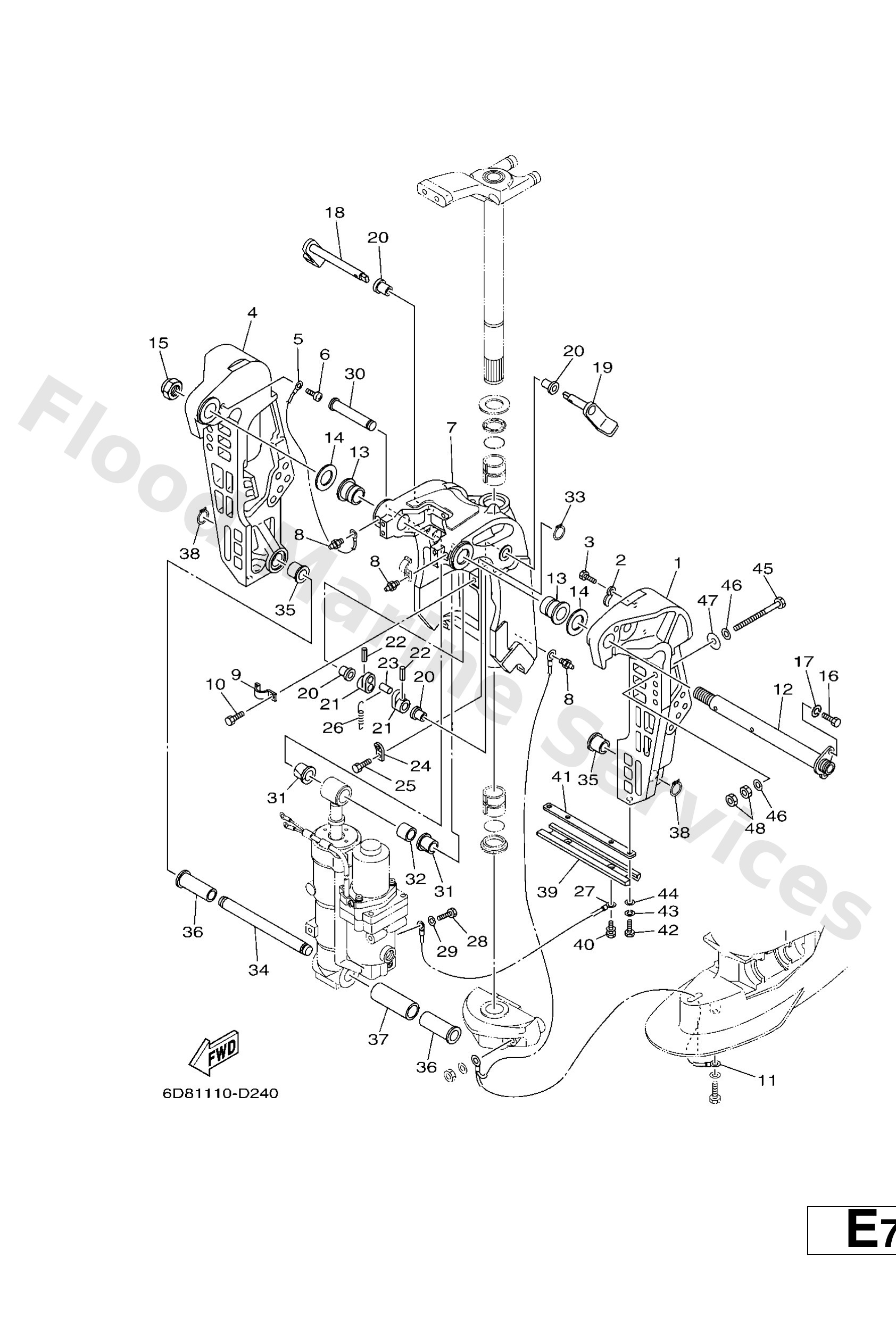

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
67F43111004D
Bracket, clamp 1
Loading…
↗
2
9046510M77
Clamp
Loading…
↗
3
9709506010
Bolt
Loading…
↗
4
67F43112004D
Bracket, clamp 2
Loading…
↗
5
6E58214800
Wire, lead 5
Loading…
↗
6
9788006012
Screw, pan head(62j)
Loading…
↗
7
6D843311004D
Bracket, swivel 1
Loading…
↗
8
9370006M03
Nipple, grease(6a1)
Loading…
↗
9
9046508M63
Clamp(61u)
Loading…
↗
11
67F8212700
Wire, lead 2
Loading…
↗
12
64E4313101
Bolt, clamp bracket
Loading…
↗
13
9038625M31
Bushing (6e5)
Loading…
↗
14
9020126M59
Washer, plate (6e5)
Loading…
↗
15
9018522M11
Nut, self-locking
Loading…
↗
16
9709508020
Bolt, hexagon
Loading…
↗
17
9299508100
Ybs67-8 washer, spring
Loading…
↗
18
6D84318100
Lever, tilt stop 1
Loading…
↗
19
6D84318500
Lever, tilt stop 2
Loading…
↗
20
9038610M16
Bushing (688)
Loading…
↗
21
6G54314800
Collar, distance
Loading…
↗
22
9169030020
Pin, spring (6h4)
Loading…
↗
23
9024906M19
Pin(6e5)
Loading…
↗
24
66T4314400
Hook, spring
Loading…
↗
26
9050614M24
Spring, tension(6e5)
Loading…
↗
27
6D88214800
Wire, lead 4
Loading…
↗
29
9299506600
Washer, plain (646)
Loading…
↗
30
6D84312600
Pin, upper shock mount
Loading…
↗
31
9038618M35
Bush (688)
Loading…
↗
32
9038618001
Bush
Loading…
↗
33
9341018M05
Circlip (6f2)
Loading…
↗
34
67F4381800
Pin, lower shock mount
Loading…
↗
35
9038718M01
Collar
Loading…
↗
36
9038618MA0
Bush
Loading…
↗
37
9038722M01
Collar
Loading…
↗
39
6H14525103
Anode
Loading…
↗
40
9011906M81
Bolt, with washer
Loading…
↗
41
6H14452600
Plate 2
Loading…
↗
42
9709506016
Bolt, hexagon deep recess
Loading…
↗
43
9299506100
Washer(6a1)
Loading…
↗
45
9010112M03
Bolt (l:115mm)
Loading…
↗
46
9020113M01
Washer, plate(6e5)
Loading…
↗
47
9020112M05
Washe, plate(663)
Loading…
↗
48
9538012600
Nut (707)
Loading…
↗
