F80CED (2010)
BRACKET 1

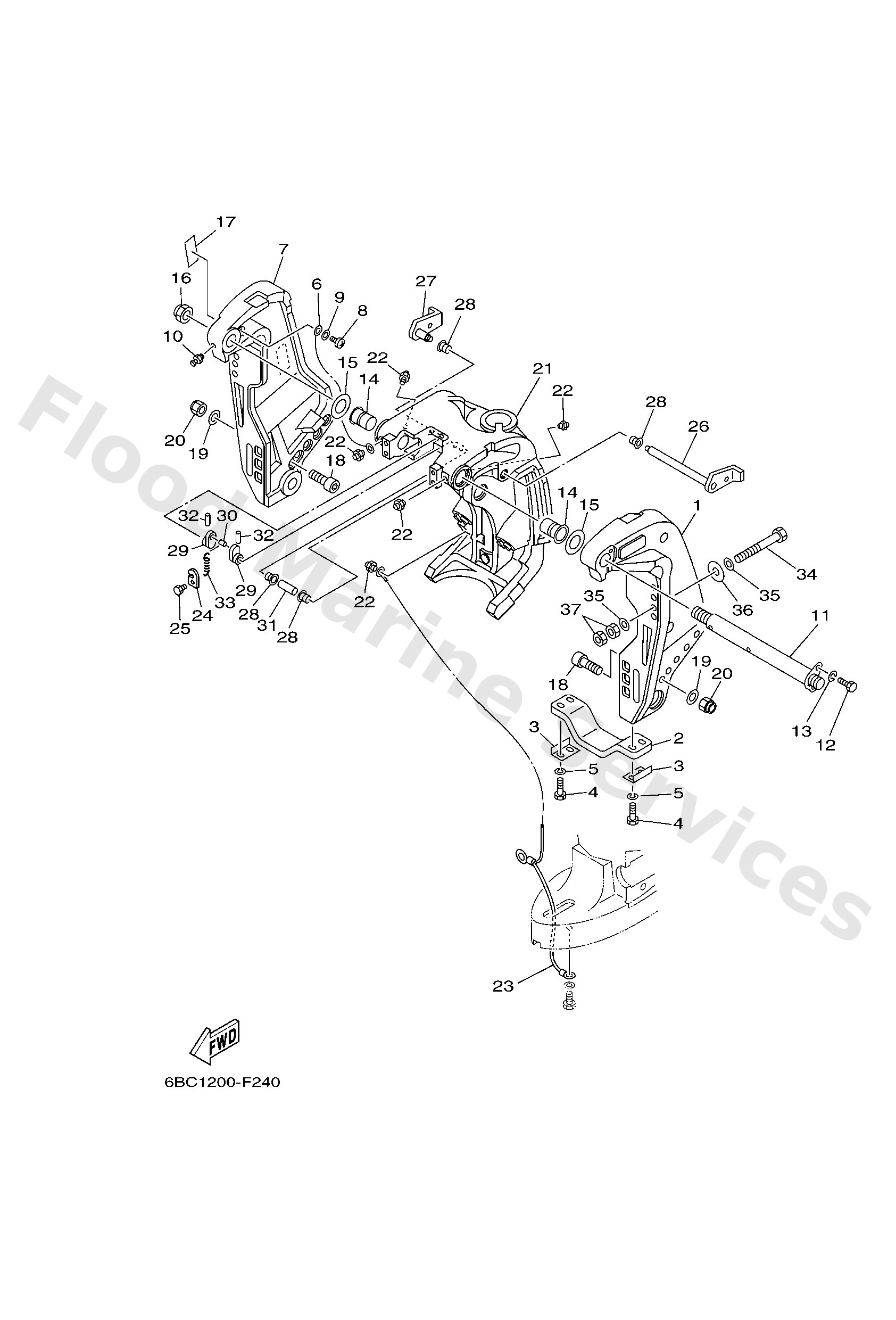

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6BC43111008D
Bracket, clamp 1
Loading…
↗
2
6G54525102
Anode
Loading…
↗
3
6G54452600
Plate
Loading…
↗
4
9709506030
Bolt(jf7)
Loading…
↗
5
9299506100
Washer(6a1)
Loading…
↗
6
6E58214800
Wire, lead 5
Loading…
↗
7
6BC43112008D
Bracket, clamp 2
Loading…
↗
8
9788506012
Screw, pan head(62j)
Loading…
↗
9
9299506600
Washer, plain (646)
Loading…
↗
10
9370006M03
Nipple, grease(6a1)
Loading…
↗
11
64E4313101
Bolt, clamp bracket
Loading…
↗
12
9709508020
Bolt, hexagon
Loading…
↗
13
9299508100
Ybs67-8 washer, spring
Loading…
↗
14
9038625M31
Bushing (6e5)
Loading…
↗
15
9020126M59
Washer, plate (6e5)
Loading…
↗
16
9018522M11
Nut, self-locking
Loading…
↗
17
63D4369100
Indicator, tilt
Loading…
↗
18
9011012M00
Bolt, hexagon socket head
Loading…
↗
19
9299012200
Ybs66-12 washer,plain
Loading…
↗
20
9018512M12
Nut, self-locking(6e5)
Loading…
↗
21
6BC43311008D
L(20.3")
Bracket, swivel 1
Loading…
↗
23
66K8214900
L(20.3")
Wire, lead 3
Loading…
↗
24
66T4314400
Hook, spring
Loading…
↗
25
9709506010
Bolt
Loading…
↗
26
6BC4318100
Lever, tilt stop 1
Loading…
↗
27
6BC4318500
Lever, tilt stop 2
Loading…
↗
28
9038610M16
Bushing (688)
Loading…
↗
29
6G54314800
Collar, distance
Loading…
↗
30
9024906M19
Pin(6e5)
Loading…
↗
31
9038710M05
Collar(6e5)
Loading…
↗
32
9169030020
Pin, spring (6h4)
Loading…
↗
33
9050614M24
Spring, tension(6e5)
Loading…
↗
34
9010112M03
Bolt (l:115mm)
Loading…
↗
35
9020113M01
Washer, plate(6e5)
Loading…
↗
36
9020112M05
Washe, plate(663)
Loading…
↗
37
9538012600
Nut (707)
Loading…
↗
