F8CMH (2011)
BRACKET 1

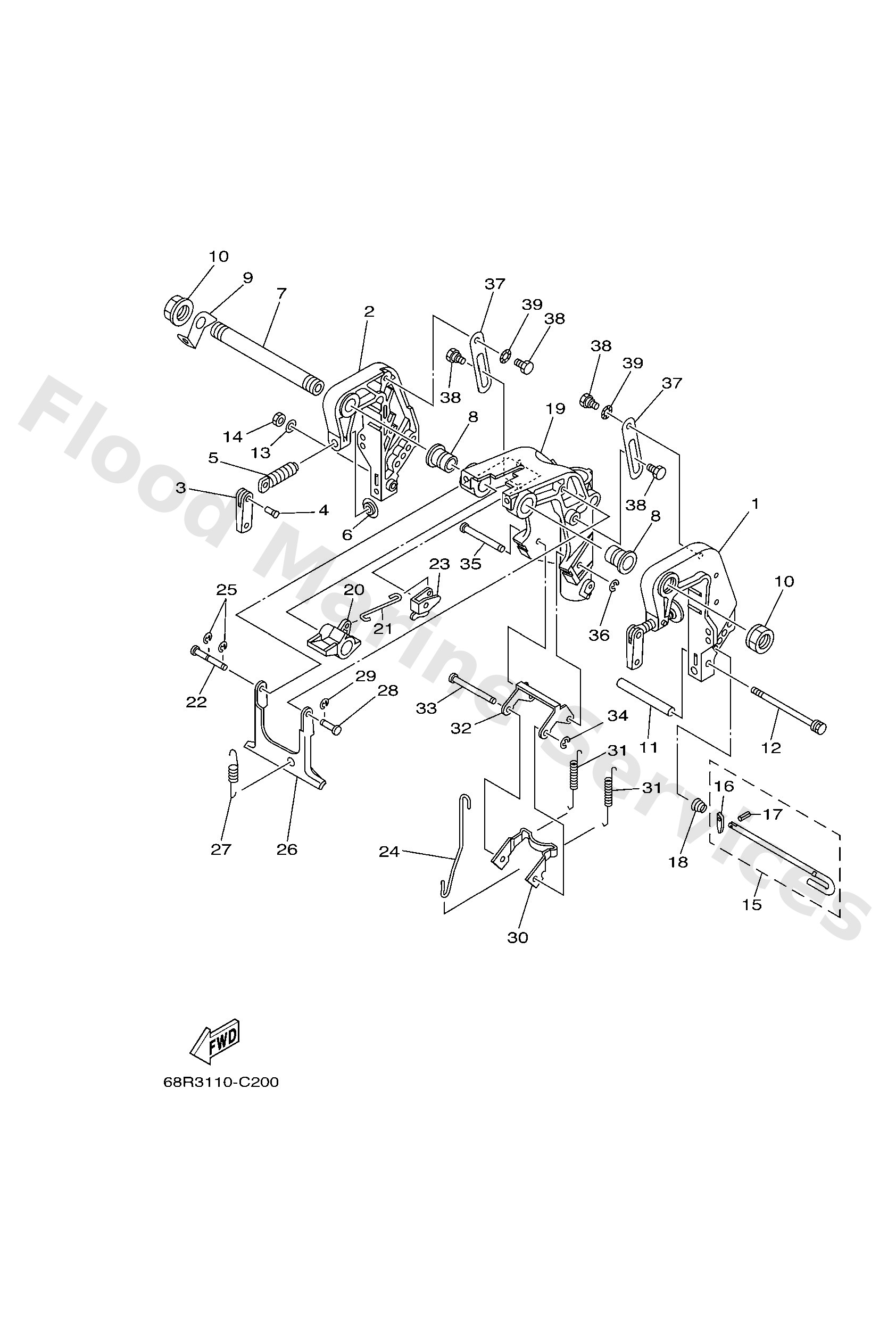

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
60RG3111014D
Bracket clamp 1
Loading…
↗
2
60RG3112014D
Bracket clamp 2
Loading…
↗
3
6L8G311801
Handle, transom cl
Loading…
↗
4
9024304M01
Pin(6a1)
Loading…
↗
5
6E74311600
Screw, transom clamp
Loading…
↗
6
6484311401
Pad, transom clamp
Loading…
↗
7
63V4313110
FOR RIDE GUIDE
Bolt, clamp bracket
Loading…
↗
8
9038622MA4
Bush
Loading…
↗
9
66R4311300
Plate, clamp bracket
Loading…
↗
10
9018522043
Nut, self-locking
Loading…
↗
11
9038706M13
Collar(6h6)
Loading…
↗
12
9010106M18
Bolt(6l5)
Loading…
↗
13
9299006600
Washer, plain (646)
Loading…
↗
14
9538006700
Nut
Loading…
↗
15
6L24316001
Tilt rod assembly
Loading…
↗
16
6894316500
Plate, tilt lock
Loading…
↗
17
9169030008
Pin. spring(656)
Loading…
↗
18
9050210M07
Spring, conical(6k3)
Loading…
↗
19
60RG3311004D
S(17.1")
Bracket, Swivel 1
Loading…
↗
19
60RG3311104D
L(22.1")
Bracket swivel1
Loading…
↗
20
60RG363100
-
Loading…
↗
21
60RG361600
-
Loading…
↗
22
68T4364600
Shaft, lever
Loading…
↗
23
68T4364100
Lever, tilt
Loading…
↗
24
68T4361700
Rod, tilt lock
Loading…
↗
25
9908005600
Circlip(22k)
Loading…
↗
26
68T4335000
Receiver assembly
Loading…
↗
27
9050618M41
S(17.1")
Spring, tension
Loading…
↗
27
9050620005
L(22.1")
Spring, tension
Loading…
↗
28
63V4319100
Shaft, stopper
Loading…
↗
30
68T4361400
Plate, tilt lock
Loading…
↗
31
9050620806
S(17.1")
Spring, Tension
Loading…
↗
31
9050623803
L(22.1")
Spring, Tension
Loading…
↗
32
68T4361500
Plate, tilt lock
Loading…
↗
33
68T4361100
Shaft, tilt lock
Loading…
↗
34
9343004M03
Circlip (eu0)
Loading…
↗
35
68T4365900
Shaft, reverse lock
Loading…
↗
37
68T4362700
Stopper
Loading…
↗
38
9010906M84
Bolt
Loading…
↗
39
9020610M24
Washer, wave
Loading…
↗
