F9.9JE (2022)
BRACKET 1

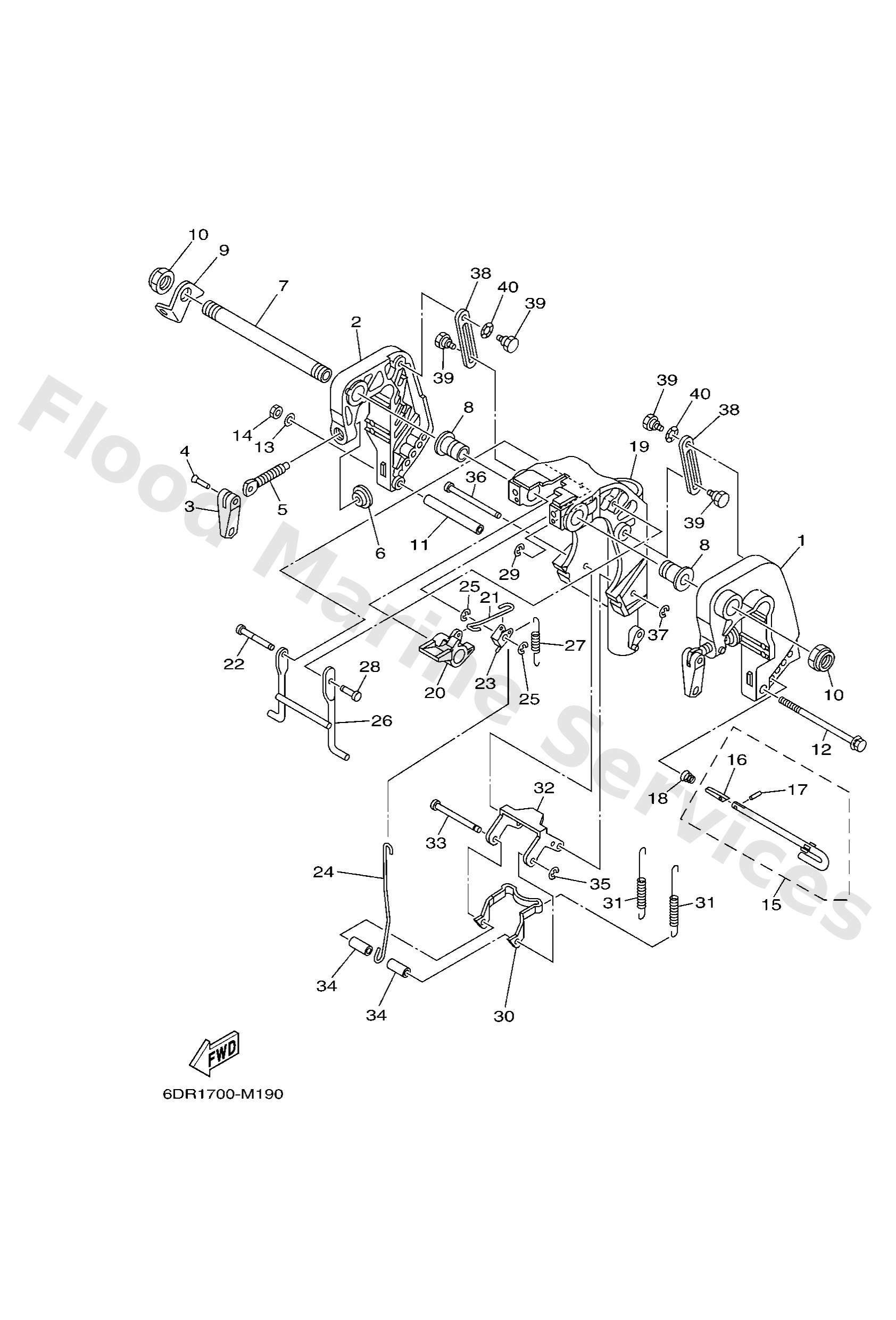

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6AH43111008D
Bracket, clamp 1
Loading…
↗
2
6AH43112008D
Bracket, clamp 2
Loading…
↗
3
6E04311801
Handle, transom clamp
Loading…
↗
4
9024304M01
Pin(6a1)
Loading…
↗
5
6E74311600
Screw, transom clamp
Loading…
↗
6
6484311401
Pad, transom clamp
Loading…
↗
7
69A4313100
FOR RIDE GUIDE
Bolt, clamp bracket
Loading…
↗
8
9038622MA4
Bush
Loading…
↗
9
66R4311300
Plate, clamp bracket
Loading…
↗
10
9018522043
Nut, self-locking
Loading…
↗
11
9038706M13
Collar(6h6)
Loading…
↗
12
9010106M18
Bolt(6l5)
Loading…
↗
13
9299506600
Washer, plain (646)
Loading…
↗
14
9538006700
Nut
Loading…
↗
15
6L24316001
Tilt rod assembly
Loading…
↗
16
6894316500
Plate, tilt lock
Loading…
↗
17
9169030008
Pin. spring(656)
Loading…
↗
18
9050210M07
Spring, conical(6k3)
Loading…
↗
19
6AH43311008D
S(17.0")
Bracket, swivel 1
Loading…
↗
19
6AU43311108D
L(22.0")
Bracket, swivel 1
Loading…
↗
20
6DR4363100
Lever, tilt
Loading…
↗
21
6DR4361600
Rod, tilt lock
Loading…
↗
22
68T4364600
Shaft, lever
Loading…
↗
23
6DR4364100
Lever, tilt
Loading…
↗
24
6AH4361700
Rod, tilt lock
Loading…
↗
25
9908005600
Circlip(22k)
Loading…
↗
26
6AH4335000
Receiver assembly
Loading…
↗
27
9050618014
S(17.0")
Spring, tension
Loading…
↗
27
9050620025
L(22.0")
Spring, tension
Loading…
↗
28
63V4319100
Shaft, stopper
Loading…
↗
30
6AH4361400
Plate, tilt lock
Loading…
↗
31
9050623016
L(22.0")
Spring, tension
Loading…
↗
31
9050620020
S(17.0")
Spring, tension
Loading…
↗
32
6AH4361500
Plate, tilt lock
Loading…
↗
33
68T4361100
Shaft, tilt lock
Loading…
↗
34
9038706138
Collar
Loading…
↗
35
9343004M03
Circlip (eu0)
Loading…
↗
36
68T4365900
Shaft, reverse lock
Loading…
↗
38
6AH4362700
Stopper
Loading…
↗
39
9010906M84
Bolt
Loading…
↗
40
9020610M24
Washer, wave
Loading…
↗
