FL115BET (2014)
BRACKET 1

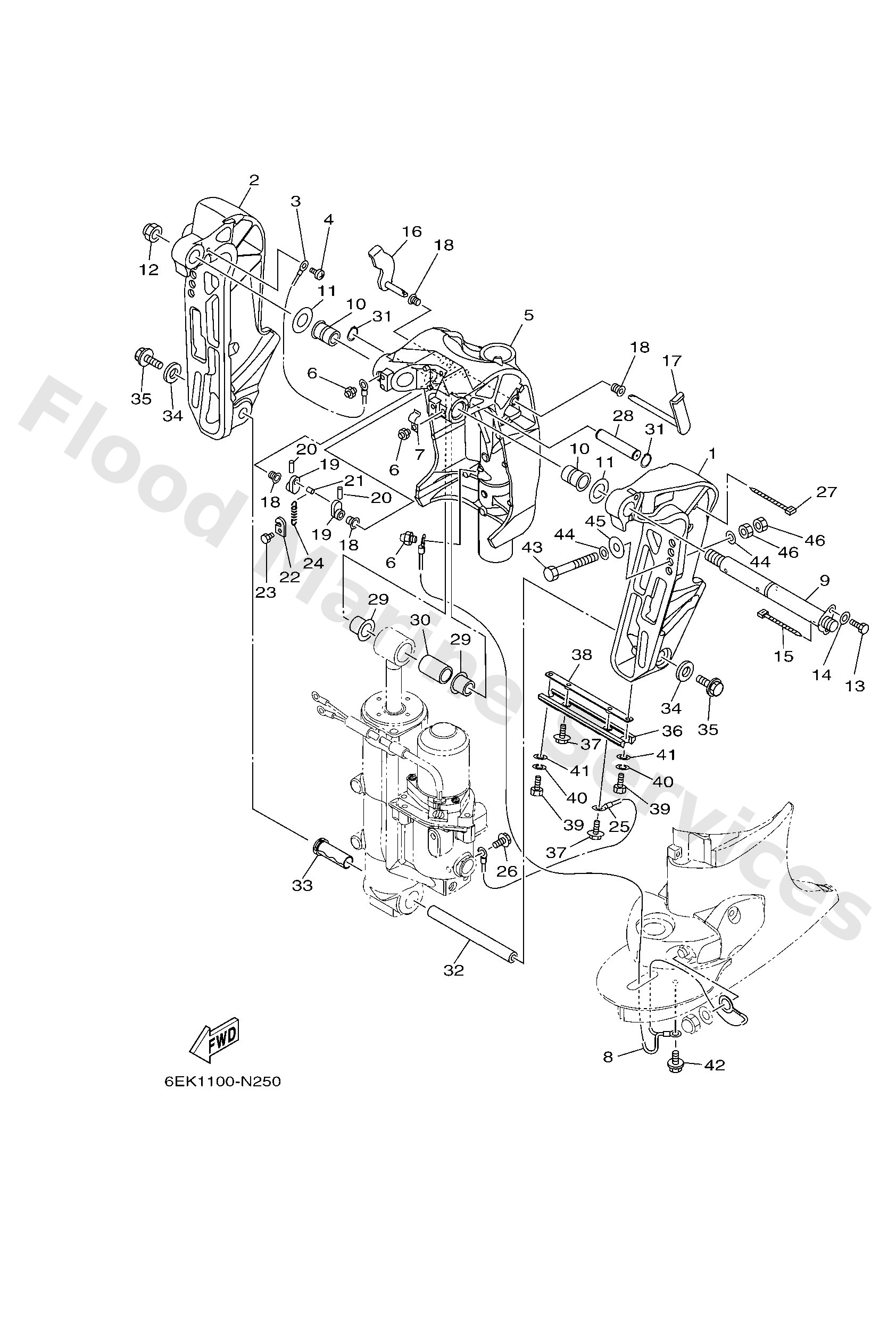

Diagram: BRACKET 1
Parts List
Reference
Description
Price
1
6EK43111008D
Bracket, clamp 1
Loading…
↗
2
6EK43112008D
Bracket, clamp 2
Loading…
↗
3
6E58214800
Wire, lead 5
Loading…
↗
4
9788006012
Screw, pan head(62j)
Loading…
↗
5
6EK43311008D
L(20.3")
Bracket, swivel 1
Loading…
↗
5
6EK43311108D
X(25.3")
Bracket, swivel 1
Loading…
↗
6
9370006M03
Nipple, grease(6a1)
Loading…
↗
7
9046508M63
Clamp(61u)
Loading…
↗
8
66K8214900
L(20.3")
Wire, lead 3
Loading…
↗
8
68V8214930
X(25.3")
Wire, lead 3
Loading…
↗
9
64E4313130
Bolt, clamp bracket
Loading…
↗
10
9038625M31
Bushing (6e5)
Loading…
↗
11
9020126M59
Washer, plate (6e5)
Loading…
↗
12
9018522M11
Nut, self-locking
Loading…
↗
13
9709508020
Bolt, hexagon
Loading…
↗
14
9299508600
Washer, plain (663)
Loading…
↗
15
9046511M10
Clamp
Loading…
↗
16
6EK4318100
Lever, tilt stop 1
Loading…
↗
17
6EK4318500
Lever, tilt stop 2
Loading…
↗
18
9038610M16
Bushing (688)
Loading…
↗
19
6G54314800
Collar, distance
Loading…
↗
20
9169030020
Pin, spring (6h4)
Loading…
↗
21
9024906M19
Pin(6e5)
Loading…
↗
22
66T4314400
Hook, spring
Loading…
↗
23
9709506010
Bolt
Loading…
↗
24
9050614M24
Spring, tension(6e5)
Loading…
↗
25
6D88214800
Wire, lead 4
Loading…
↗
26
9759506510
Bolt, hexagon w/w deep recess
Loading…
↗
27
9046513M18
Clamp
Loading…
↗
28
6EK4312600
Pin, upper shock mount
Loading…
↗
29
9038618M35
Bush (688)
Loading…
↗
30
9038618001
Bush
Loading…
↗
31
9341018M05
Circlip (6f2)
Loading…
↗
32
6EK4381800
Pin, lower shock mount
Loading…
↗
33
9038320001
Bush, formed
Loading…
↗
34
9020110060
Washer, plate
Loading…
↗
35
9011910054
Bolt, with washer
Loading…
↗
36
6H14525103
Anode
Loading…
↗
37
9011906M81
Bolt, with washer
Loading…
↗
38
6EK4453600
Plate 2
Loading…
↗
39
9709506016
Bolt, hexagon deep recess
Loading…
↗
40
9299506100
Washer(6a1)
Loading…
↗
41
9299506600
Washer, plain (646)
Loading…
↗
42
9589506010
Bolt, flange(7ht)
Loading…
↗
43
9010112M05
EXCEPT F(L)115BET1X
Bolt (l:130mm)
Loading…
↗
43
9010112047
UR F(L)115BET1X
Bolt (l:150mm)
Loading…
↗
44
9020113M01
Washer, plate(6e5)
Loading…
↗
45
9020112426
Washe, plate(663)
Loading…
↗
46
9538012600
Nut (707)
